HK Audio L5-112F - HK AUDIO LINEAR 5 112 F



L5-112F - HK AUDIO LINEAR 5 112 F
L5-112F - HK AUDIO LINEAR 5 112 F
Enlarge ↗
BrandHK Audio ›
Price:$ 799.00




DESCRIPTION

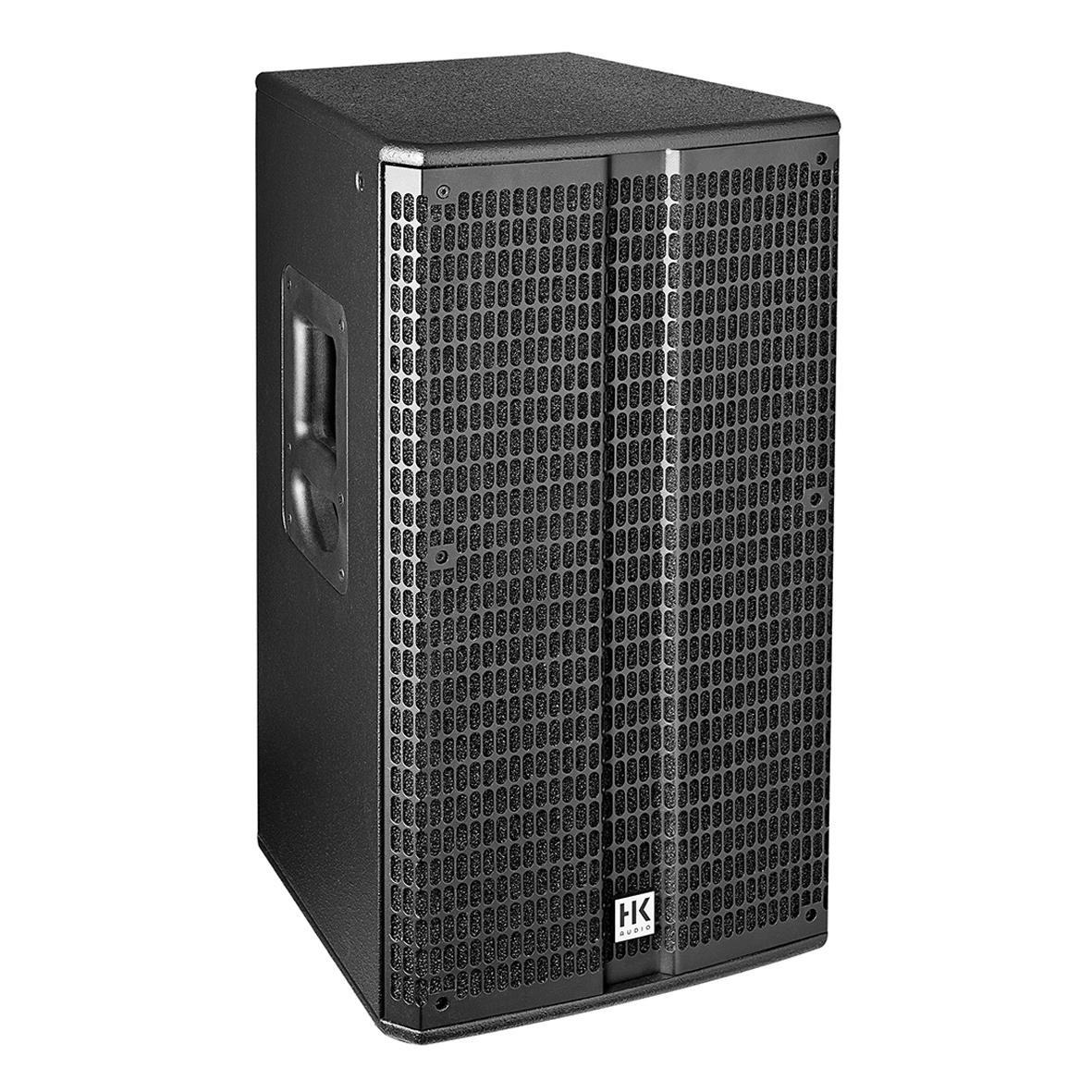

12″/1″ full-range mid/high unit with the strongest bass range in its class and asymmetrical horn ( 60º – 90º x 55º ) for optimised sound distribution. The switchable EQ means it can be used in stand-alone applications or in a stereo pair, as well as a system mid/high unit in conjunction with a LINEAR SUB subwoofer.

Technical data
Power-handling nominal (RMS) 500 W
Power-handling, program 1000 W
Frequency response +/-3 dB 79 Hz – 18 kHz
Frequency response -10 dB 60 Hz – 19 kHz
Sensitivity 1 W @ 1 m 103 dB half space
Max. SPL @ 10% THD 129 dB half space (79 Hz – 12 kHz average)
Max. SPL Peak @ 10% THD 135 dB half space
Electrical impedance 8 ohms
Protective circuits PTC circuit
Low-/mid speaker 1x 12", 2.5" voice coil
HF Driver 1", 1.75" voice coil
Directivity 60°–90° (asymmetrical) x 55° CD-Horn, rotatable
Crossover frequency 1.7 kHz, 12 dB/Oct.
Connections 2x Speakon NL4
Pole mount DuoTilt 3°/7°
Rigging points 3x M8 (AP-8)
Carrying handles 2x MultiGrip
Housing Hybrid (birch multiplex/MDF)
Finish Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 37 x 66.8 x 36.5 cm 14-9/16 x 26-19/64 x 14-3/8"
Weight 23.9 kg / 52.7 lbs
