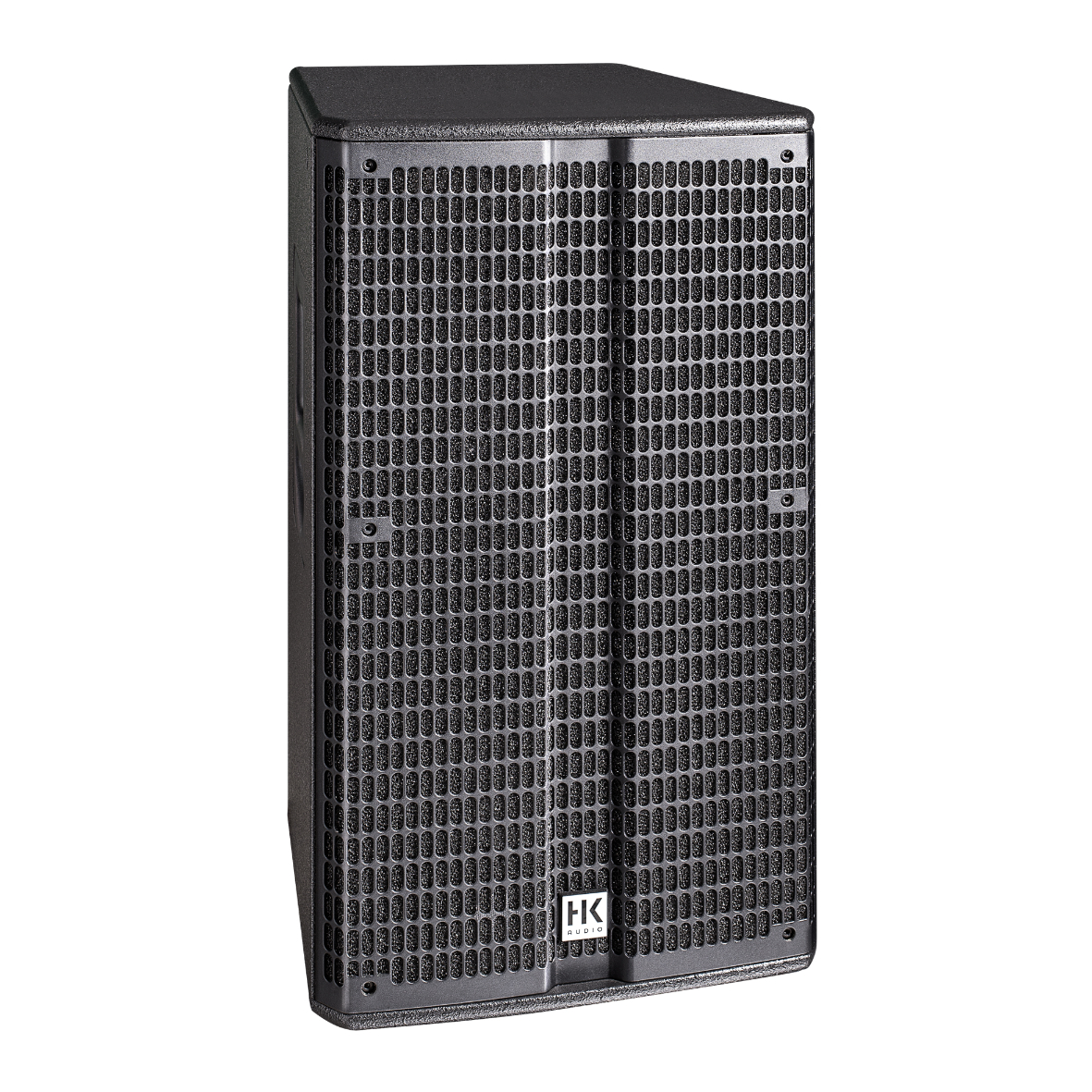

HK Audio L5-112FA - HK AUDIO LINEAR 5 112 FA



L5-112FA - HK AUDIO LINEAR 5 112 FA  L5-112FA - HK AUDIO LINEAR 5 112 FA
Enlarge ↗
BrandHK Audio ›
Price:$ 1199.00




DESCRIPTION
The active 12″/1″ full-range mid/high unit is incredibly powerful with its 1,000 watts of power. The switchable frequency adjustment means the full-range speaker for small to medium-sized rooms can be transformed into a powerful mid/high unit for LINEAR basses in no time at all.

The asymmetrical, rotatable constant directivity horn (60° – 90° x 55°) ensures a wide sound distribution at close range as well as broad coverage.

Whether standalone or in combination with the basses in the LINEAR SUB series, the LINEAR 5 112 FA is a flexible, extremely powerful and thus economical speaker for bands, DJs, schools and clubs.

Technical data
Max. SPL @ 10% THD 127 dB half space (70 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD 135 dB half space
Frequency response +/-3 dB 70 Hz – 12 kHz
Frequency response -10 dB 57 Hz – 19 kHz
Power amp output (peak power) 1000 W
Amp type Class D - biamped
Active protective circuits Under-voltage, thermal, short circuit, and over-current protection, Subsonic 24 dB/oct. peak limiter
Low-/mid speaker 1x 12", 2.5" voice coil
HF driver 1", 1.75" voice coil
Horn directivity 60°–90° (asymmetrical) x 55° CD-Horn, rotatable
Active crossover frequency 1.65 kHz, 24 dB/Oct.

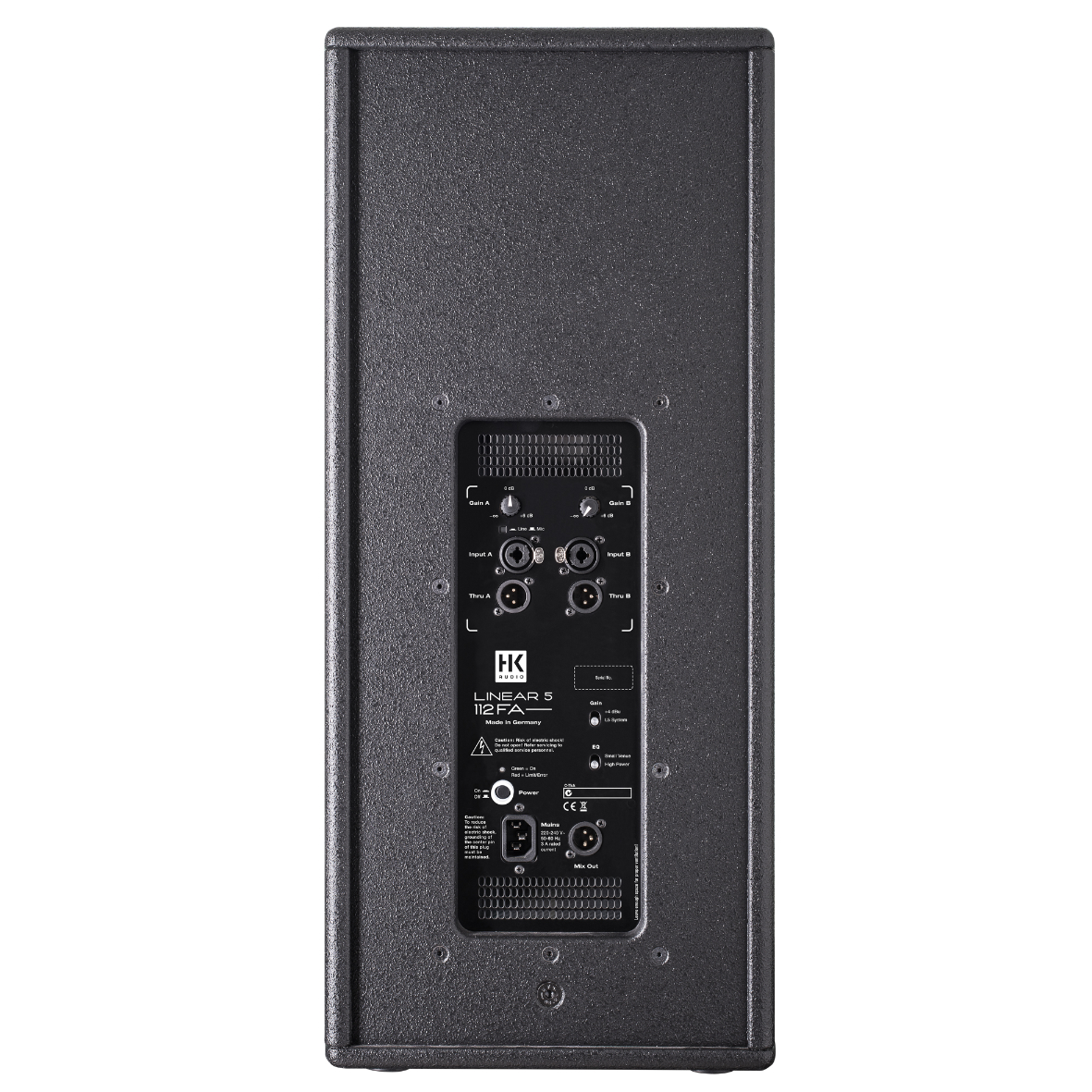

Analog inputs 2x XLR combo balanced
Analog outputs 2x XLR Thru balanced, 1x XLR Mix Out
Input sensitivity +4 dBu @ Gain center-notched / L5 System Level
Sensitivity switch Line/Mic Input A
Filter presets EQ switch: Small Venue/High Power
Mains connector 1x IEC socket with V-Lock cord retainer
Power consumption 3 A / 230 V nominal according to EN 60065
Pole mount DuoTilt 3°/7°
Rigging points 4x M8 (AP-8)
Carrying handles 2x MultiGrip
Housing Hybrid (birch multiplex/MDF)
Finish Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 37 x 66.8 x 36.5 cm 14-9/16 x 26-19/64 x 14-3/8"
Weight 23.9 kg / 52.7 lbs
