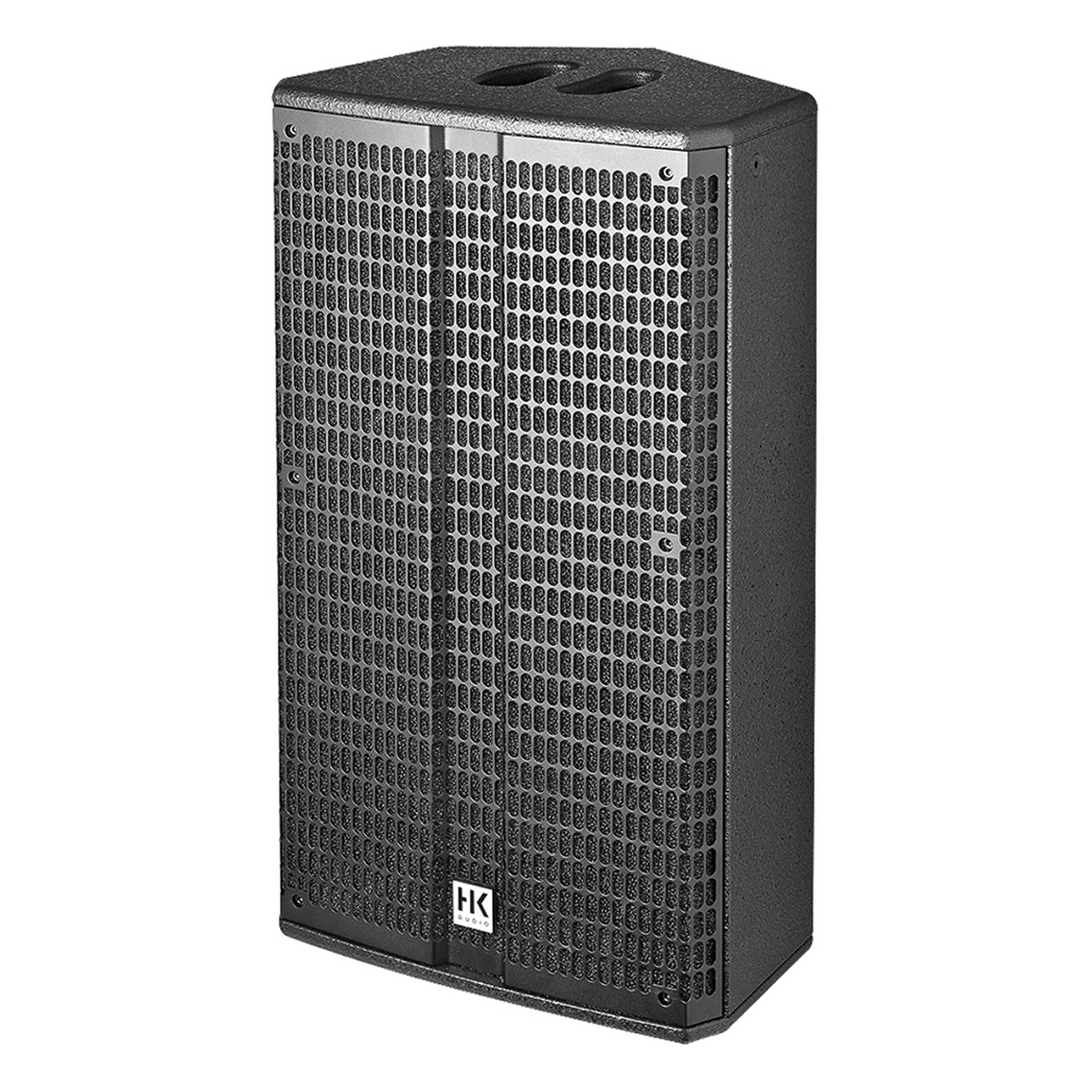

HK Audio L5-112X - HK AUDIO LINEAR 5 112 X

Enlarge ↗

Brand	HK Audio ›
Price:	$ 799.00

DESCRIPTION

12″/1″ model in a multifunctional housing with exceptional maximum sound pressure (135dB max. SPL peak) in combination with the Linear Sub 2000 for system applications. The LINEAR 5 112 X is also ideally suited as a monitor with plenty of gain before feedback; the rotatable 60° x 40° CD horn produces exemplary dispersion.

Technical data
Power-handling nominal (RMS) 500 W
Power-handling, program 1000 W
Frequency response +/-3 dB 100 Hz – 18 kHz
Frequency response -10 dB 72 Hz – 19 kHz
Sensitivity 1 W @ 1 m 104 dB half space
Max. SPL @ 10% THD 130 dB half space (100 Hz – 12 kHz average)
Max. SPL Peak @ 10% THD 135 dB half space
Electrical impedance 8 ohms
Protective circuits PTC circuit
Low-/mid speaker 1x 12", 2.5" voice coil
HF Driver 1", 1.75" voice coil
Directivity 60° x 40°, rotatable CD horn
Crossover frequency 1.7 kHz, 12 dB/Oct.
Connections 2x Speakon NL4
Angles up 33°
Pole mount DuoTilt 3°/7°
Rigging points 3x M8 (AP-8)
Carrying handles 1x SingleGrip, 1x MultiGrip
Housing Hybrid (birch multiplex/MDF)
Finish Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 37 x 67 x 30 cm 14-9/16 x 26-19/64 x 11-13/16"
Weight 19.5 kg / 43 lbs
