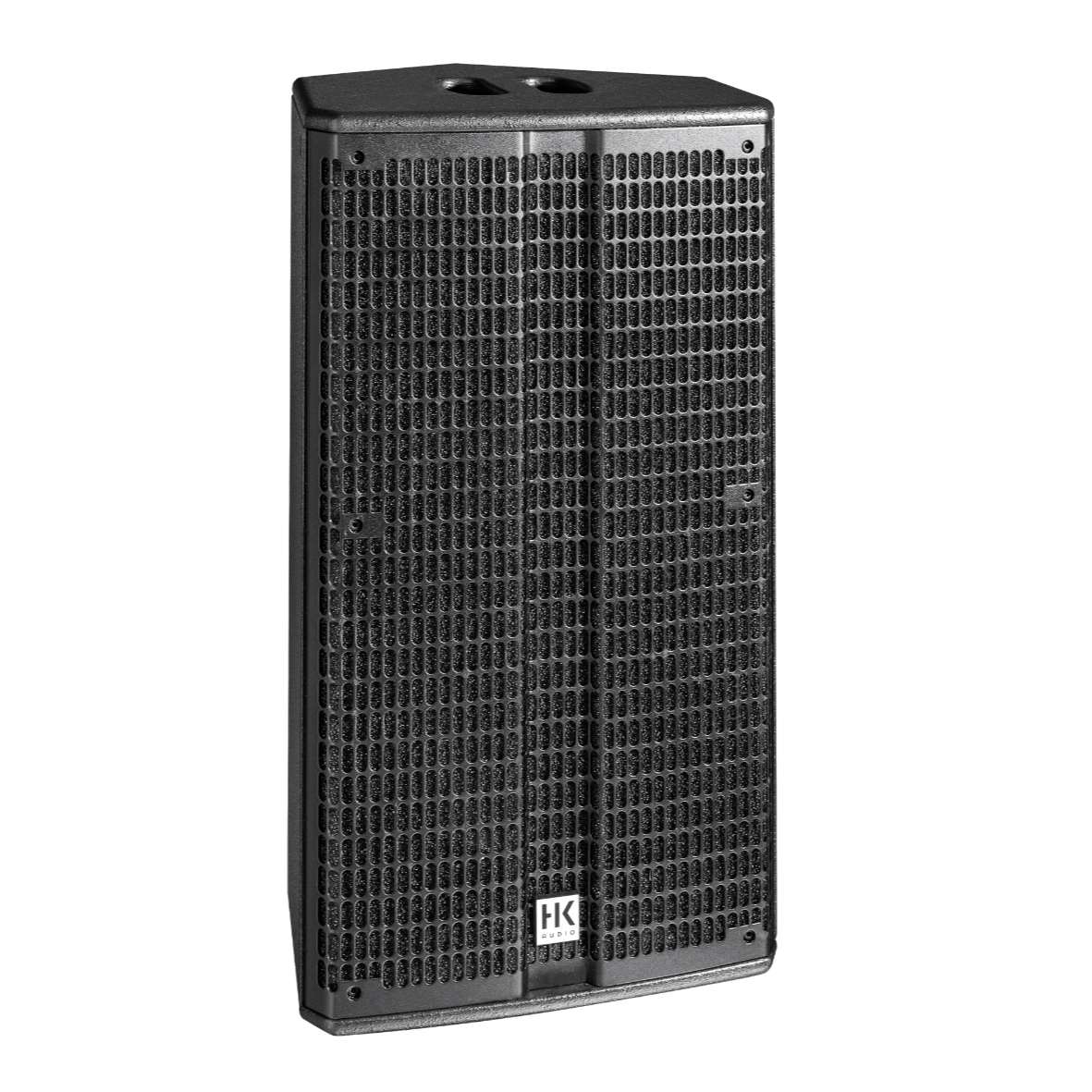

HK Audio L5-112XA - HK AUDIO LINEAR 5 112 XA

L5-112XA - HK AUDIO LINEAR 5 112 XA  L5-112XA - HK AUDIO LINEAR 5 112 XA
Enlarge ↗
BrandHK Audio ›
Price:$ 1199.00

The LINEAR 5 112 XA is an active multifunctional speaker optimized for voice reproduction in the frequency range from 100 Hz upwards and therefore ideal for use as an active mid/high unit for high ranges.

Since these applications do not require a high level of deep bass, HK Audio has cut down on cabinet volume in the design and developed a clever, compact multifunctional cabinet: Thanks to the slanted cabinet shape and the 60° x 40° CD horn for optimized, directional dispersion, the speaker also acts as an amazingly powerful stage monitor with low feedback.

The professional standards are rounded off by the wooden cabinet, high-quality components and innovative technologies that make the LINEAR 5 from HK Audio the loudest speaker family in its class. The LINEAR 5 112 XA also proudly bears the label “Made in Germany”.

Technical data
Max. SPL @ 10% THD 128 dB half space (70 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD 136 dB half space
Frequency response +/-3 dB 100 Hz – 12 kHz
Frequency response -10 dB 75 Hz – 20 kHz
Power amp output (peak power) 1000 W
Amp type Class D - biamped
Active protective circuits Under-voltage, thermal, short circuit, and over-current protection, Subsonic 24 dB/oct. peak limiter
Low-/mid speaker 1x 12", 2.5" voice coil
HF driver 1", 1.75" voice coil
Horn directivity 60° x 40° CD horn, rotatable
Active crossover frequency 1.65 kHz, 24 dB/Oct.

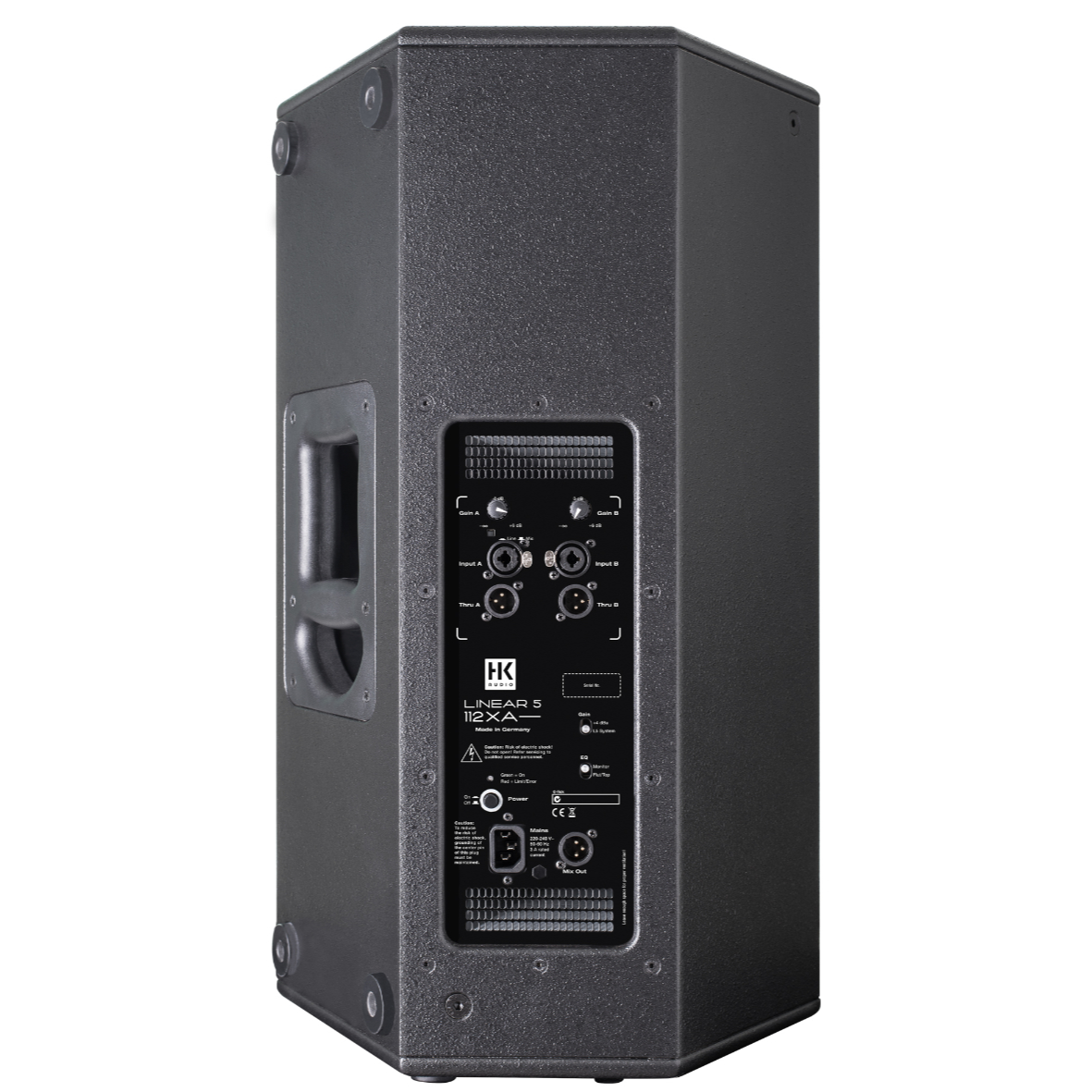

Analog inputs 2x XLR combo balanced
Analog outputs 2x XLR Thru balanced, 1x XLR Mix Out
Input sensitivity +4 dBu @ Gain center-notched / L5 System Level
Sensitivity switch Line/Mic Input A
Filter presets EQ switch: Flat/Monitor
Mains connector 1x IEC socket with V-Lock cord retainer
Power consumption 3 A / 230 V nominal according to EN 60065
Angels up (Monitor angle) 33°
Pole mount DuoTilt 3°/7°
Rigging points 4x M8 (AP-8)
Carrying handles 1x SingleGrip, 1x MultiGrip
Housing Hybrid (birch multiplex/MDF)
Finish Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 37 x 66.8 x 30 cm 14-9/16 x 26-19/64 x 11-13/16"
Weight 21.1 kg / 46.5 lbs
