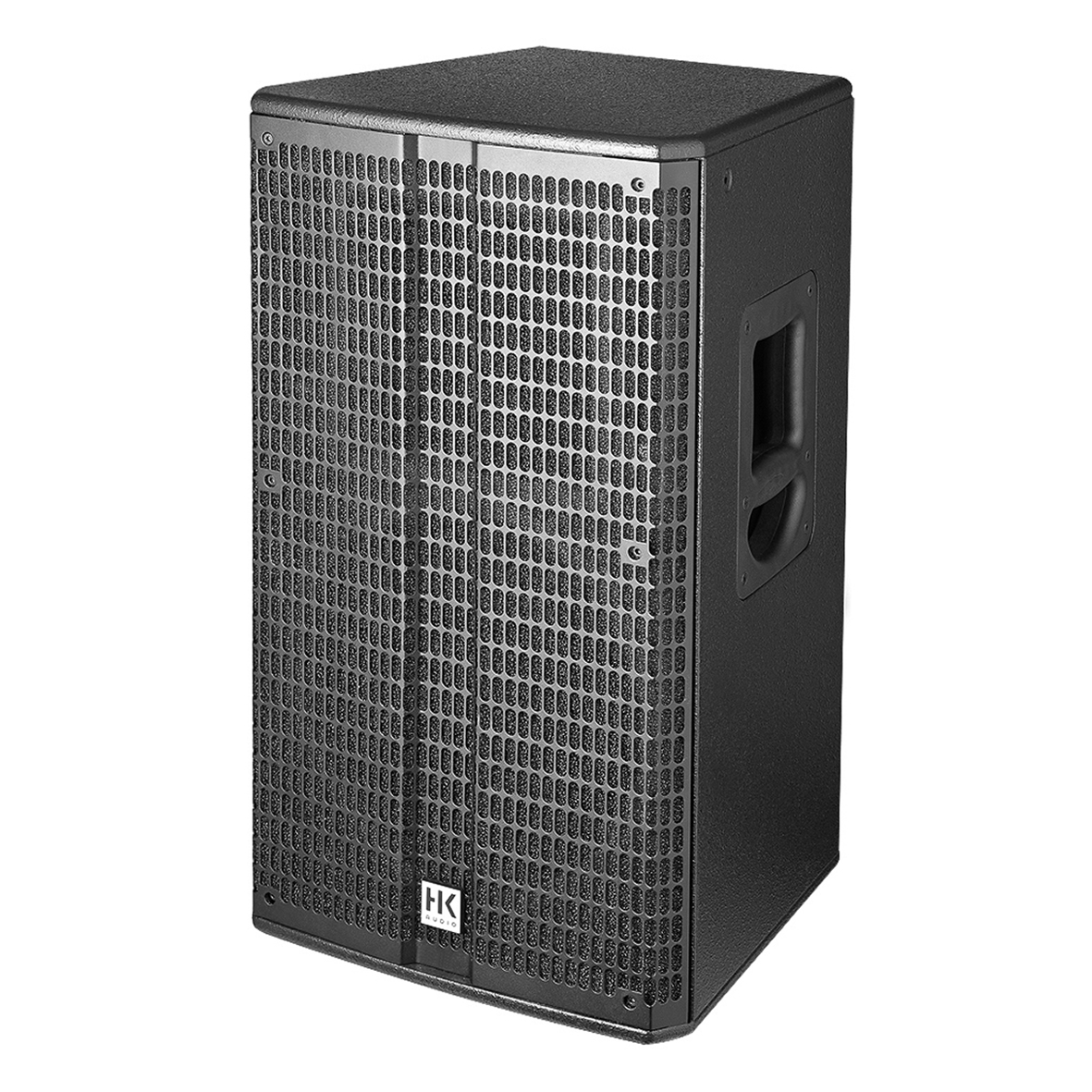

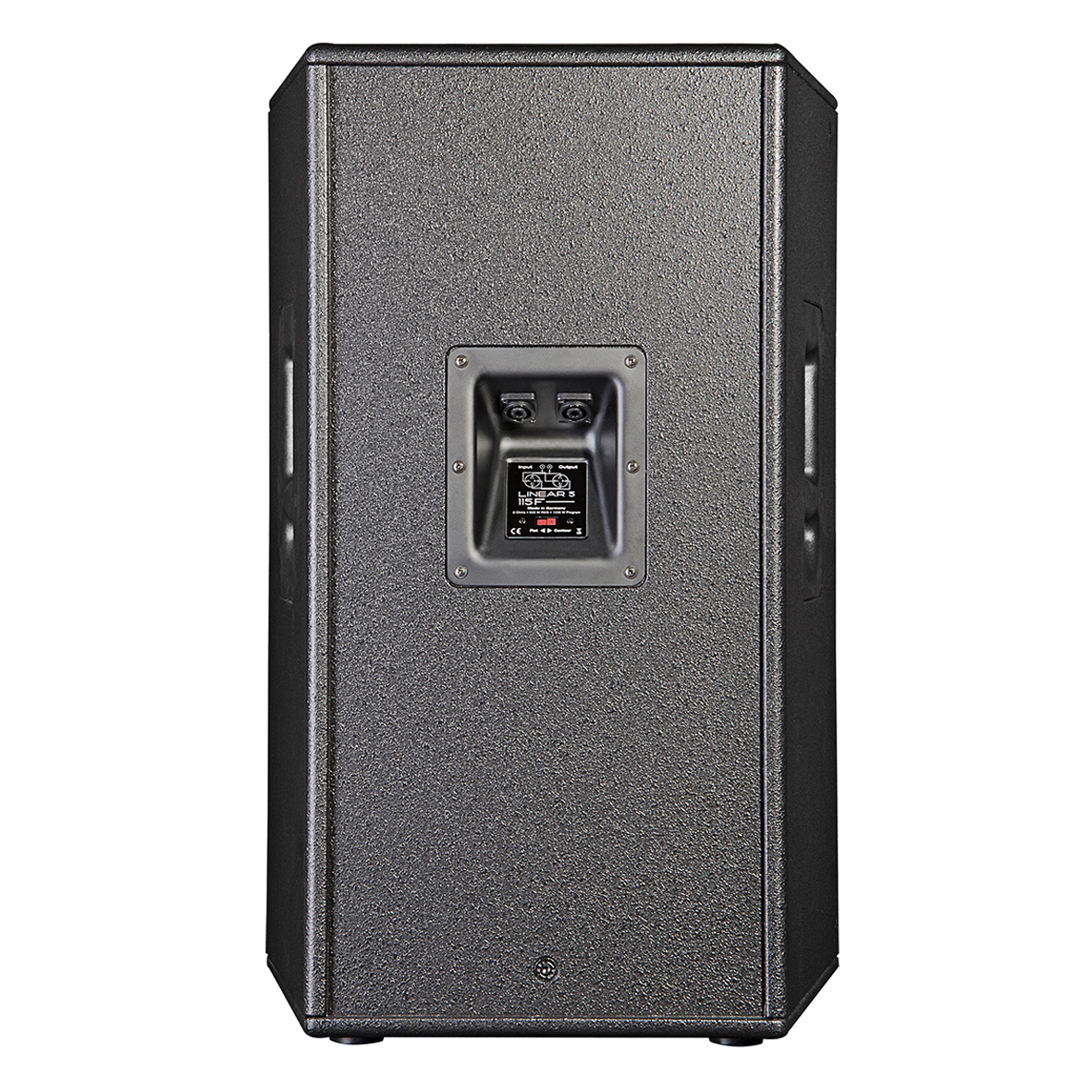

HK Audio L5-115F - HK AUDIO LINEAR 5 115 F



L5-115F - HK AUDIO LINEAR 5 115 F
L5-115F - HK AUDIO LINEAR 5 115 F
Enlarge ↗
BrandHK Audio ›
Price:$ 929.00




DESCRIPTION
As a stand-alone speaker with a maximum power handling capacity of 2,400 watts peak, the 15″/1″ full-range mid/high unit is the loudest reference in its class. Like the LINEAR 5 112 F, it is equipped with an asymmetrical horn for optimum dispersion, allowing it to provide a wide dispersion at the front while directing the sound more focussed in the back for a greater range. Application: Mid/high unit, standalone system, DJ monitoring

Technical data
Power-handling nominal (RMS) 600 W
Power-handling, program 1200 W
Frequency response +/-3 dB 62 Hz – 18 kHz
Frequency response -10 dB 52 Hz – 20 kHz
Sensitivity 1 W @ 1 m 103 dB half space
Max. SPL @ 10% THD 129 dB half space (62 Hz – 12 kHz average)
Max. SPL Peak @ 10% THD 135 dB half space
Electrical impedance 8 ohms
Protective circuits PTC circuit
Low-/mid speaker 1x 15", 3" voice coil
HF Driver 1", 1.75" voice coil
Directivity 60°–90° (asymmetrical) x 55° CD-Horn, rotatable
Crossover frequency 1.7 kHz, 12 dB/Oct.
Connections 2x Speakon NL4
Pole mount DuoTilt 3°/7°
Rigging points 3x M8 (AP-8)
Carrying handles 2x MultiGrip
Housing Hybrid (birch multiplex/MDF)
Finish Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 44.9 x 70.8 x 45 cm 17-43/64 x 27-7/8 x 17-23/32"
Weight 30.1 kg / 66.4 lbs
