HK Audio L5-115FA - HK AUDIO LINEAR 5 115 FA

L5-115FA - HK AUDIO LINEAR 5 115 FA  L5-115FA - HK AUDIO LINEAR 5 115 FA
Enlarge ↗
BrandHK Audio ›
Price:$ 1349.00

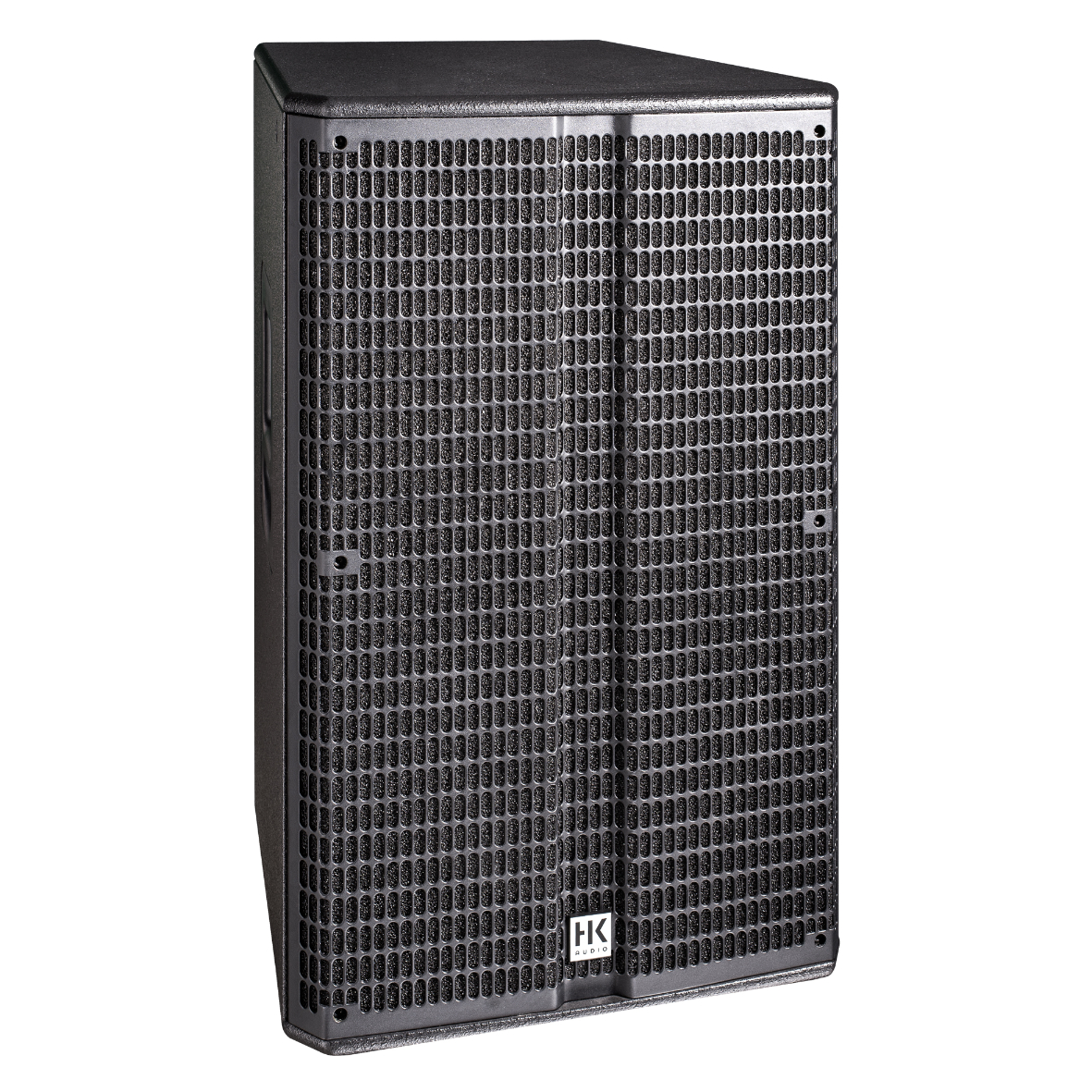

As a stand-alone speaker with 1,000 watts of amp power, the 15″/1″ full-range mid/high unit is the loudest reference in its class due to its high efficiency. Like the LINEAR 5 112 FA, it is equipped with an asymmetrical horn for optimum dispersion, allowing it to provide a wide dispersion at the front while directing the sound more strongly in the back for a greater range.

With a sound pressure of 137 dB and the high cabinet volume, it is the most powerful speaker in its class and also delivers excellent sound characteristics.

Suitable for DJs, bands, weddings or group celebrations – there is no challenge that the LINEAR 5 115 FA cannot meet.

Technical data
Max. SPL @ 10% THD 128 dB half space (58 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD 137 dB half space
Frequency response +/-3 dB 60 Hz – 17 kHz
Frequency response -10 dB 50 Hz – 20 kHz
Power amp output (peak power) 1000 W
Amp type Class D - biamped
Active protective circuits Under-voltage, thermal, short circuit, and over-current protection, Subsonic 24 dB/oct. peak limiter
Low-/mid speaker 1x 15", 3" voice coil
HF driver 1", 1.75" voice coil
Horn directivity 60°–90° (asymmetrical) x 55° CD-Horn, rotatable
Active crossover frequency 1.65 kHz, 24 dB/Oct.

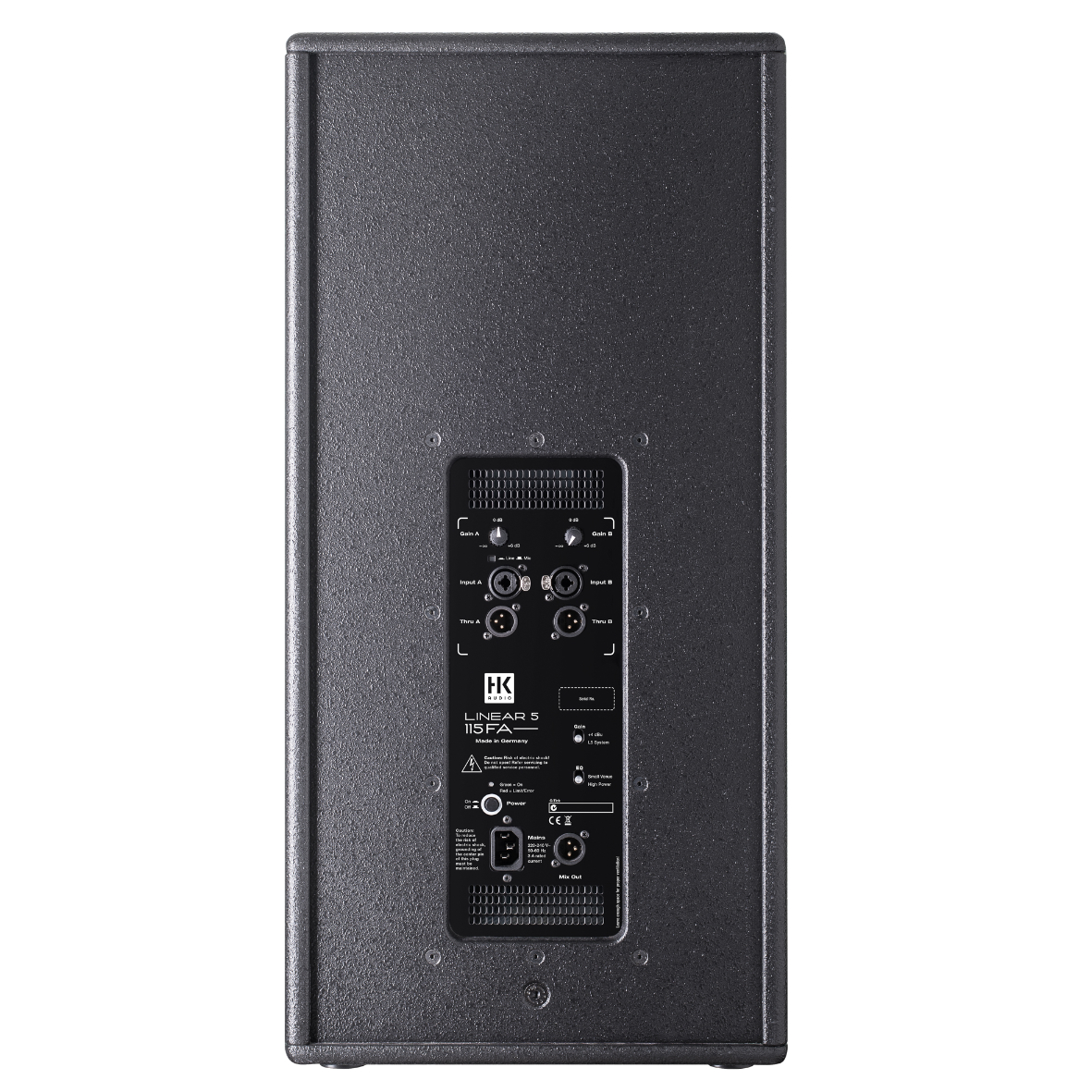

Analog inputs 2x XLR combo balanced
Analog outputs 2x XLR Thru balanced, 1x XLR Mix Out
Input sensitivity +4 dBu @ Gain center-notched / L5 System Level
Sensitivity switch Line/Mic Input A
Filter presets EQ switch: Small Venue/High Power
Mains connector 1x IEC socket with V-Lock cord retainer
Power consumption 3 A / 230 V nominal according to EN 60065
Pole mount DuoTilt 3°/7°
Rigging points 4x M8 (AP-8)
Carrying handles 2x MultiGrip
Housing Hybrid (birch multiplex/MDF)
Finish Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 44.9 x 70.8 x 45 cm 17-43/64 x 27-7/8 x 17-23/32"
Weight 30.7 kg / 67.7 lbs
