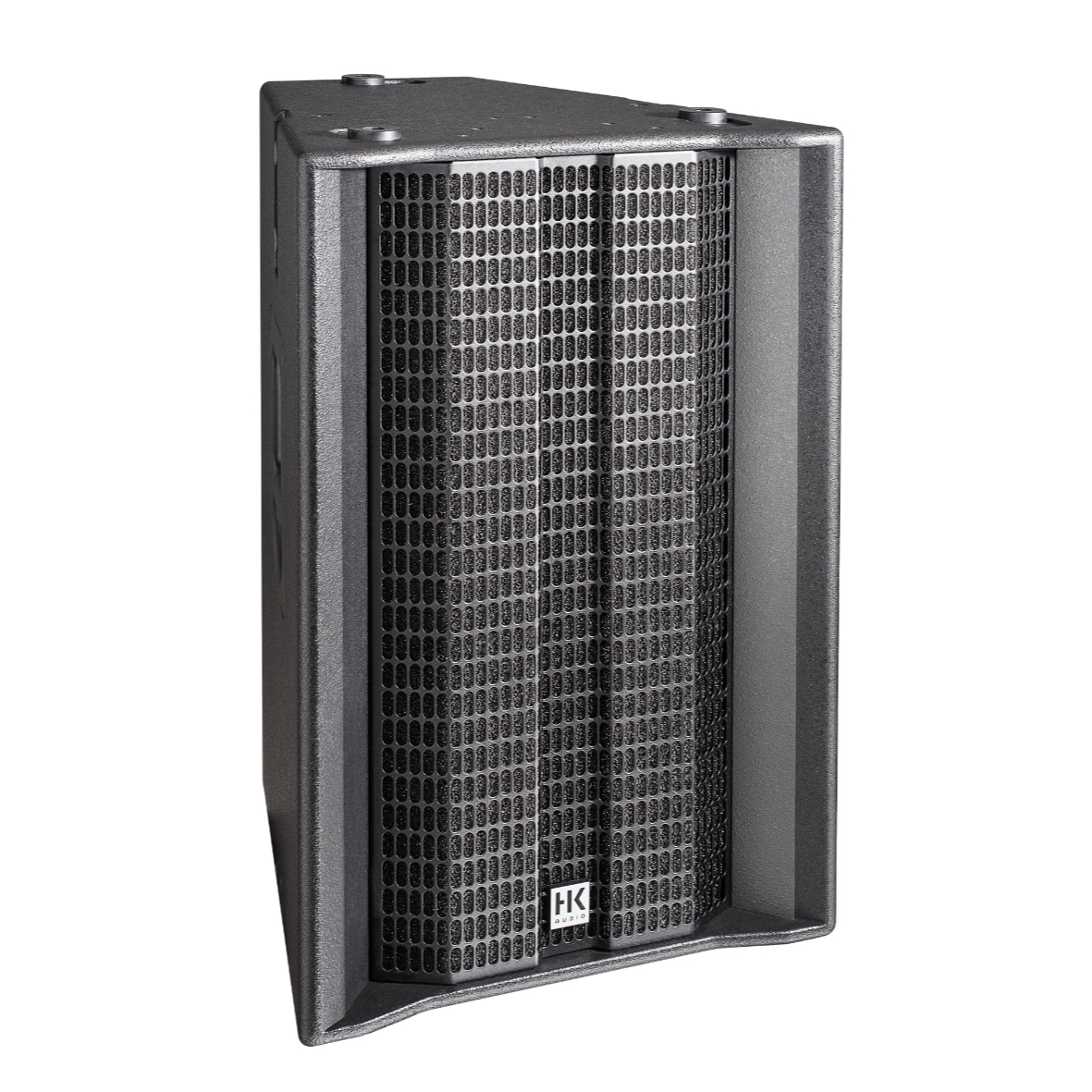

HK Audio L5-LTSA - HK AUDIO LTS A SYSTEM

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/HK-Audio-L5-LTSA.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/HK-Audio-L5-LTSA-1.jpg

Brand	HK Audio ›
Price:	$ 1859.00

DESCRIPTION

In the past, only large line arrays have been capable of projecting the entire frequency spectrum powerfully over 30 m and beyond – until now. The LINEAR 5 LTS A brings true long-throw characteristics to an ultra-compact format. For the user, this means fewer speaker components are required, thus saving valuable truck space. It also makes rigging and ground stacking much easier and faster. This makes the LINEAR 5 LTS A Long-Throw System not only the simplest, but also the most economical solution to achieve the best sound results for events with up to 3,000 people.

Technical data
Max. SPL @ 10% THD 133 dB half space (100 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD 138 dB half space
Frequency response +/-3 dB 115 Hz - 14 kHz
Frequency response -10 dB 100 Hz - 20 kHz
Power amp output (peak power) 1000 W
Amp type Class D - biamped
Active protective circuits Under-voltage, thermal, short circuit, and over-current protection, Subsonic 24 dB/oct. peak limiter
Low-/mid speaker 3x 8", 2" voice coil (neodymium)
HF driver 1", 1.75" voice coil
Horn directivity 60° x +5°/-25° MCT horn
Active crossover frequency 1.7 kHz FIR X-over with 24 dB/Oct.
Analog inputs 1x XLR combo balanced
Analog outputs 1x XLR Thru balanced
Input sensitivity +4 dBu @ Gain center-notched / L5 System Level
Filter presets EQ switch: Flat/Contour
Mains connector 1x IEC socket with V-Lock cord retainer
Power consumption 3.3 A / 230 V nominal according to EN 60065
Pole mount MonoTilt 0°
Rigging points 5x M8 (AP-8)
Carrying handles 2x MultiGrip
Housing Birch multiplex
Finish Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 44 x 68 x 46.1 cm 17-5/16 x 26-25/32 x 18-5/32"
Weight 24.9 kg / 54.9 lbs
