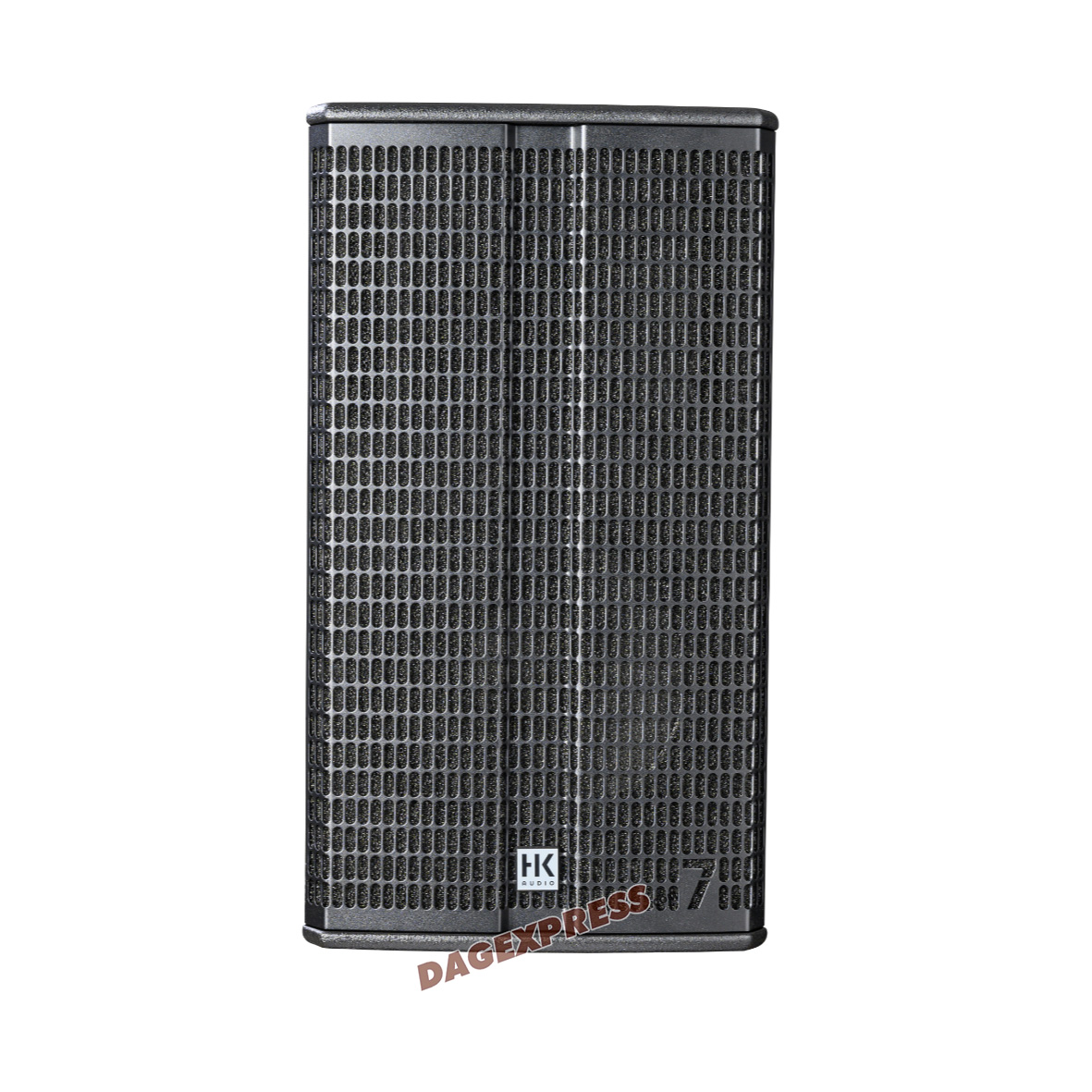

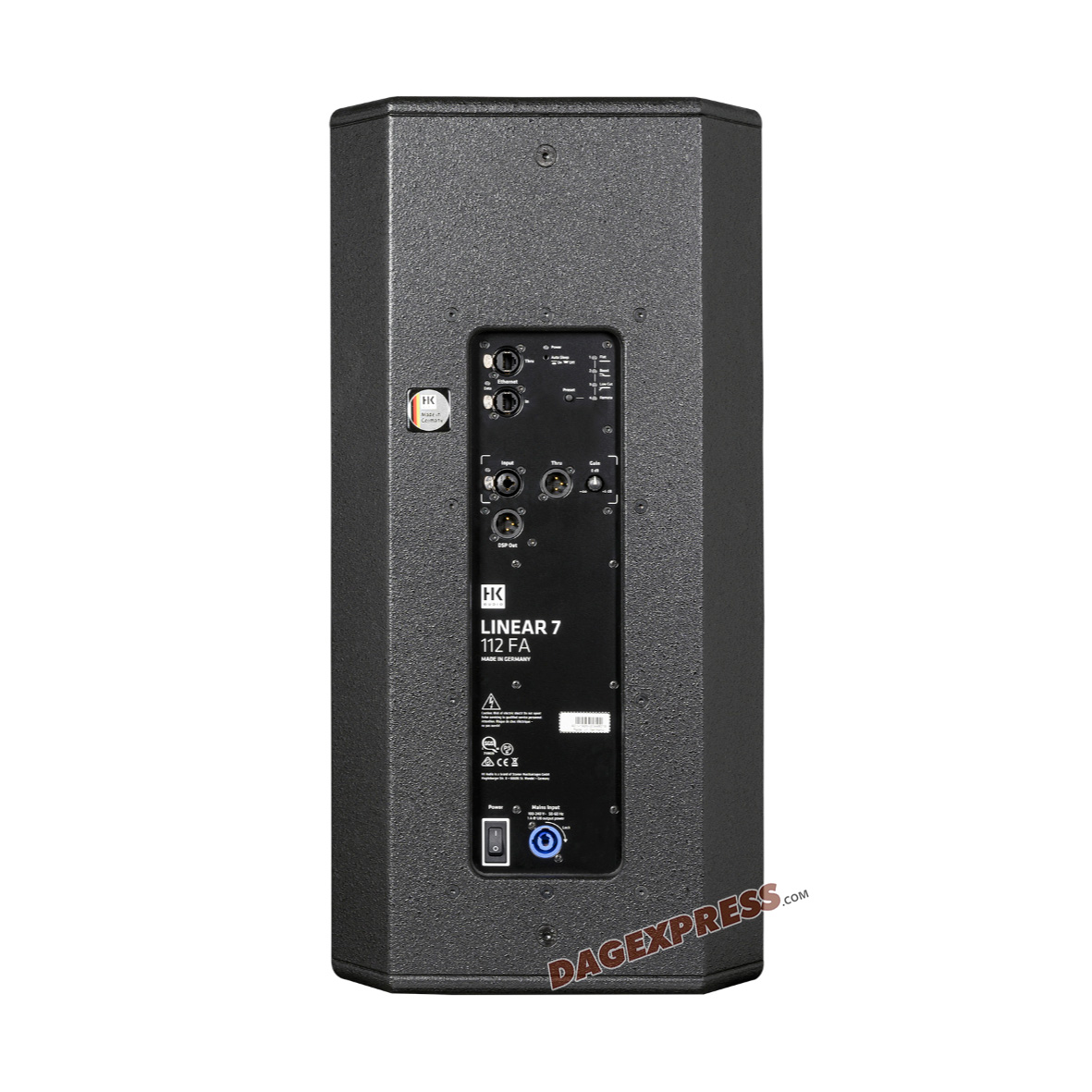

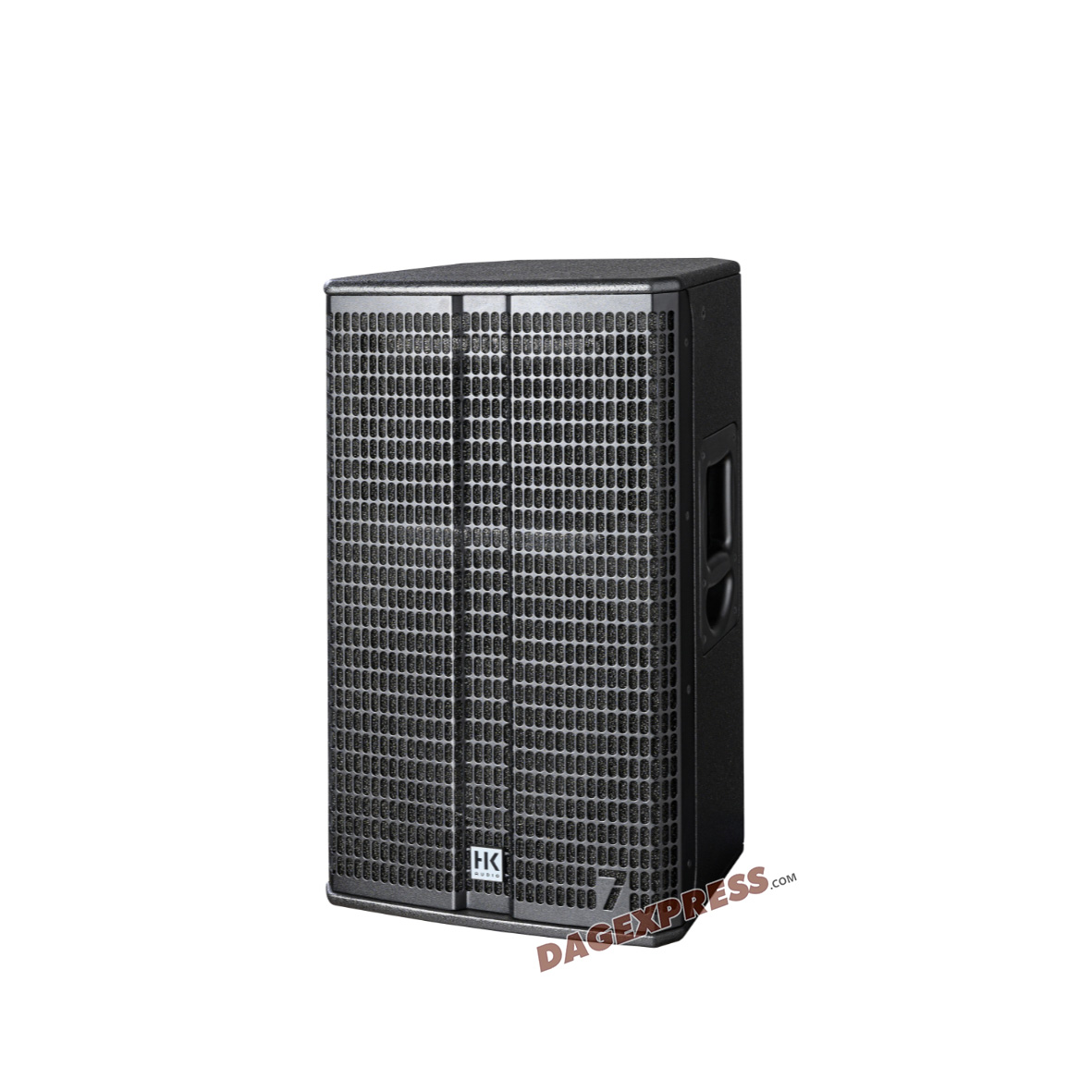

Yorkville LINEAR 7 112 FA - Active Full-Range Speaker
Enlarge ↗
×
❮
❯
Brand
Yorkville ›
Price:
$ 1849.00
DESCRIPTION
Documentation ↗
The LINEAR 7 112 FA active and network-compatible full-range speaker delivers more sound pressure in the low-frequency range thanks to its larger cabinet volume. With the Bass Boost preset optimised for each speaker, the low-frequency range can be boosted as required.
Technical data
Max. SPL @ 10% THD 128 dB half space (70 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD 131 dB half space
Frequency response +/-3 dB 64 Hz – 19 kHz
Frequency response -10 dB 55 Hz – 20 kHz
Power amp output (peak power) 2000 W
Amp type Class D - biamped
Low-/mid speaker 1x 12", 2.5" voice coil
HF driver 1", 1.7" voice coil
Horn directivity 70° x 50° CD horn, rotatable
Active crossover frequency 1.6 kHz FIR X-over with 60 dB/oct.
Maximum input level +20 dBu
Analog inputs 1x XLR combo balanced
Analog thru 1x XLR balanced
DSP Out 1x XLR
Network port Ethercon RJ45, 1x In, 1x Thru
Filter presets Flat, Boost, Low Cut, Remote
Remote software DSP CONTROL (Windows, Mac OS)
DSP functions Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate 96 kHz
System latency Less than 2.6 ms
Mains connector 1x Powercon NAC3 In, 100–240 V
Power consuption 1 A / 100–240 V nominal according to EN 62368-1
Clustering angle 70°
Pole mount DuoTilt 3°/7°
Rigging points 4x M8 (AP-8)
Carrying handles 2x MultiGrip
Housing Hybrid (birch multiplex/MDF)
Finish Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 37 x 67 x 37 cm 14-9/16 x 26-3/8 x 14-9/16"
Weight 23 kg / 50.7 lbs
