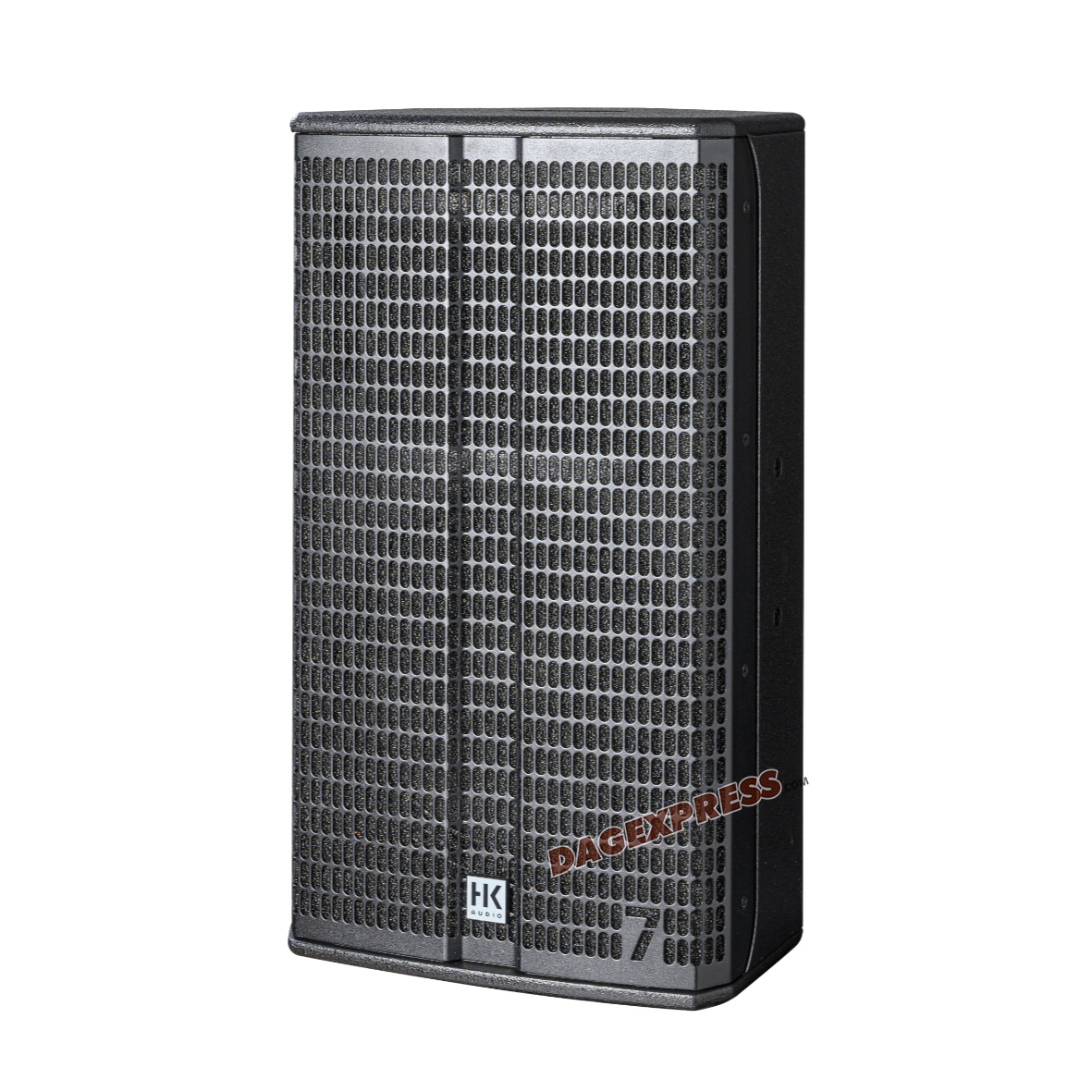

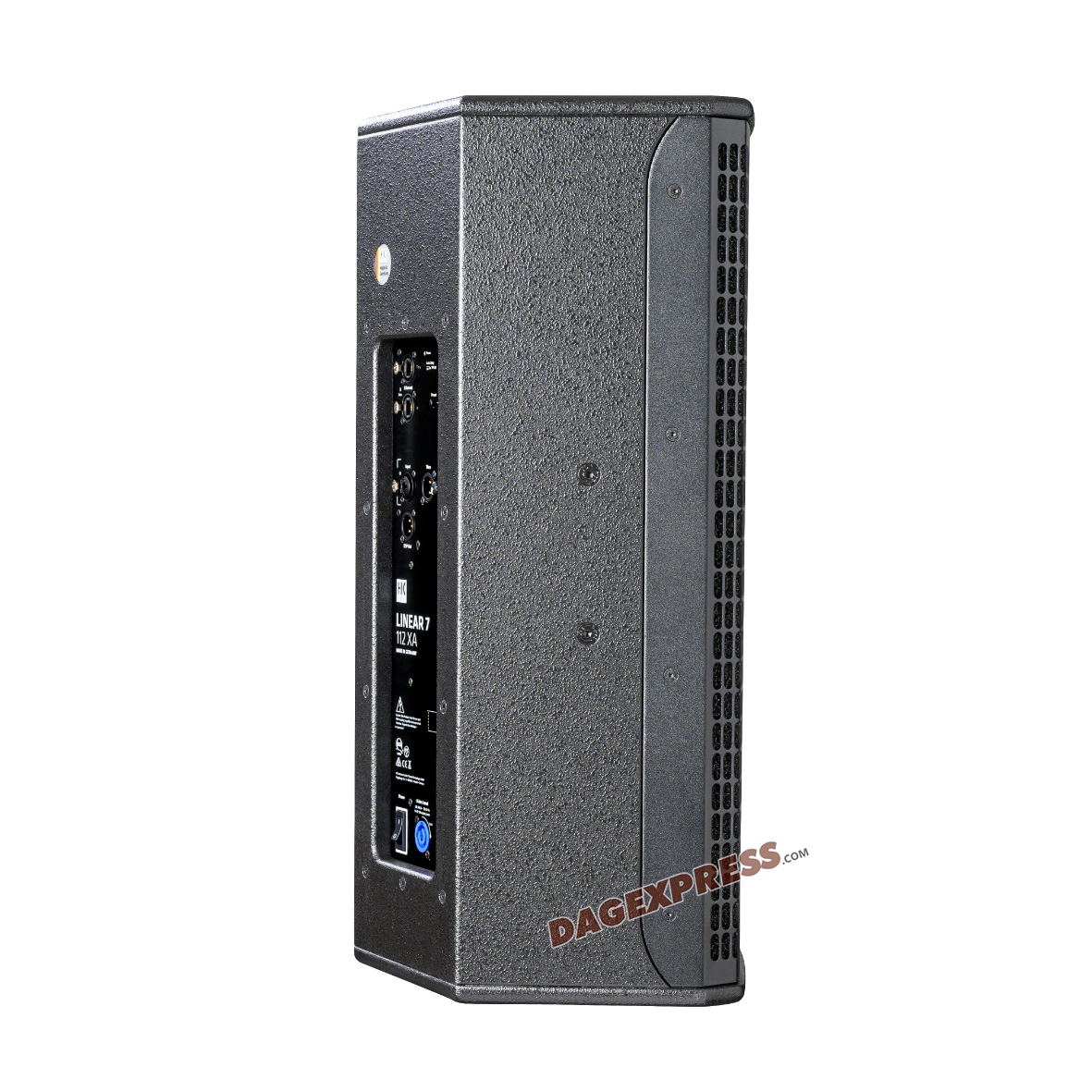

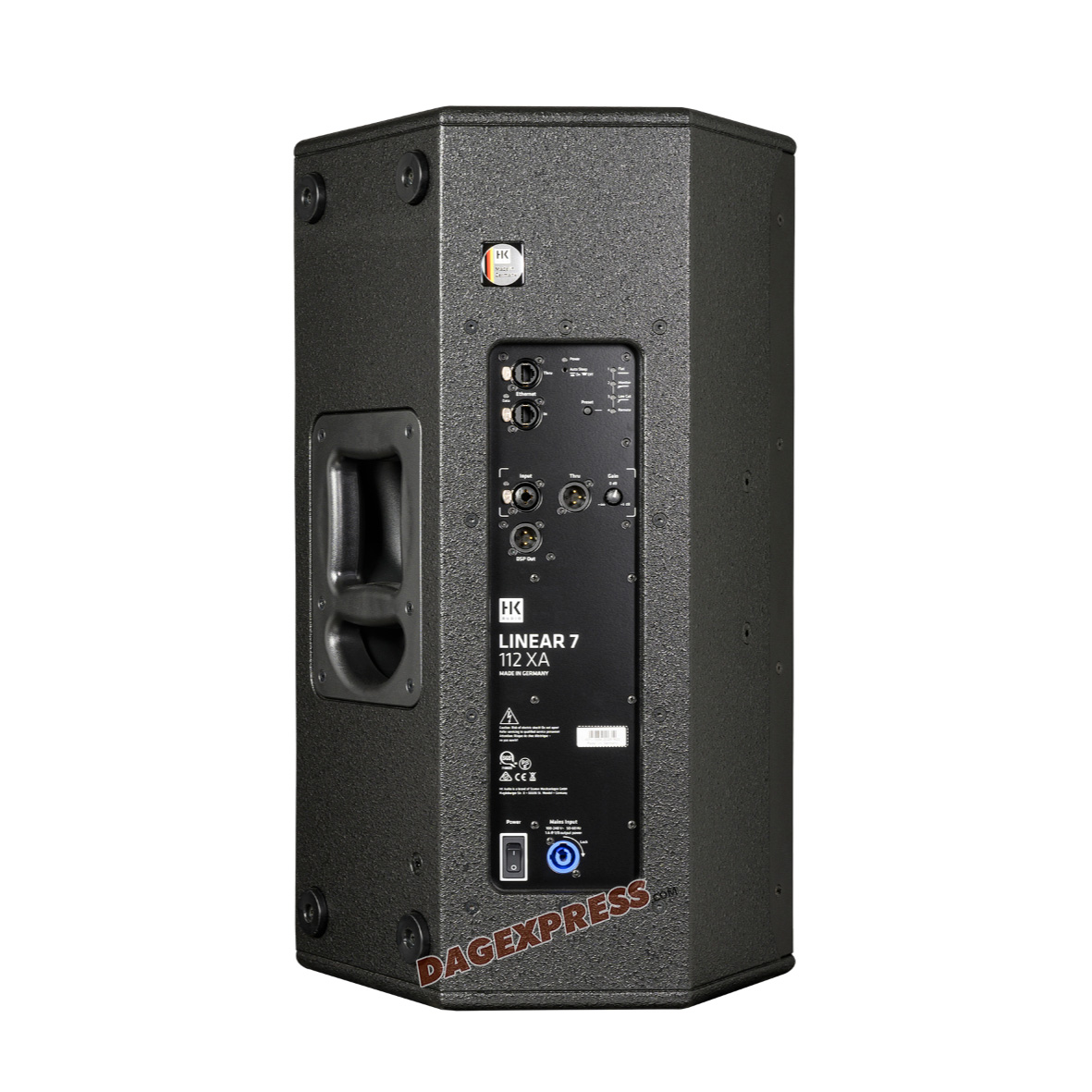

HK Audio LINEAR 7 112 XA

LINEAR 7 112 XA  LINEAR 7 112 XA  LINEAR 7 112 XA
Enlarge ↗
BrandHK Audio ›
Price:$ 1849.00

Thanks to its cabinet shape with integrated 30° slant, the LINEAR 7 112 XA active and network-compatible multifunctional speaker is also suitable for use as a transverse stage monitor. It offers a preset optimised for use as a monitor, which compensates for the overemphasis of the low frequencies caused by contact with the ground in transverse operation.

Technical data
Max. SPL @ 10% THD 128 dB half space (70 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD 131 dB half space
Frequency response +/-3 dB 67 Hz – 19 kHz
Frequency response -10 dB 62 Hz – 20 kHz
Power amp output (peak power) 2000 W
Amp type Class D - biamped
Low-/mid speaker 1x 12", 2.5" voice coil
HF driver 1", 1.7" voice coil
Horn directivity 70° x 50° CD horn, rotatable
Active crossover frequency 1.6 kHz FIR X-over with 60 dB/oct.
Maximum input level +20 dBu
Analog inputs 1x XLR combo balanced
Analog thru 1x XLR balanced
DSP Out 1x XLR
Network port Ethercon RJ45, 1x In, 1x Thru
Filter presets Flat, Monitor, Low Cut, Remote
Remote software DSP CONTROL (Windows, Mac OS)
DSP functions Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate 96 kHz
System latency Less than 2.6 ms
Mains connector 1x Powercon NAC3 In, 100–240 V
Power consuption 1 A / 100–240 V nominal according to EN 62368-1
Angels up (Monitor angle) 30°
Pole mount DuoTilt 3°/7°
Rigging points 5x M8 (AP-8)
Carrying handles 1x SingleGrip, 1x MultiGrip
Housing Hybrid (birch multiplex/MDF)
Finish Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 37 x 67 x 31 cm 14-9/16 x 26-3/8 x 12-13/64"
Weight 21 kg / 46.3 lbs
