HK Audio LINEAR 7 118 Sub A
Enlarge ↗
×
❮
❯
Brand
HK Audio ›
Price:
$ 2699.00
DESCRIPTION
Documentation ↗

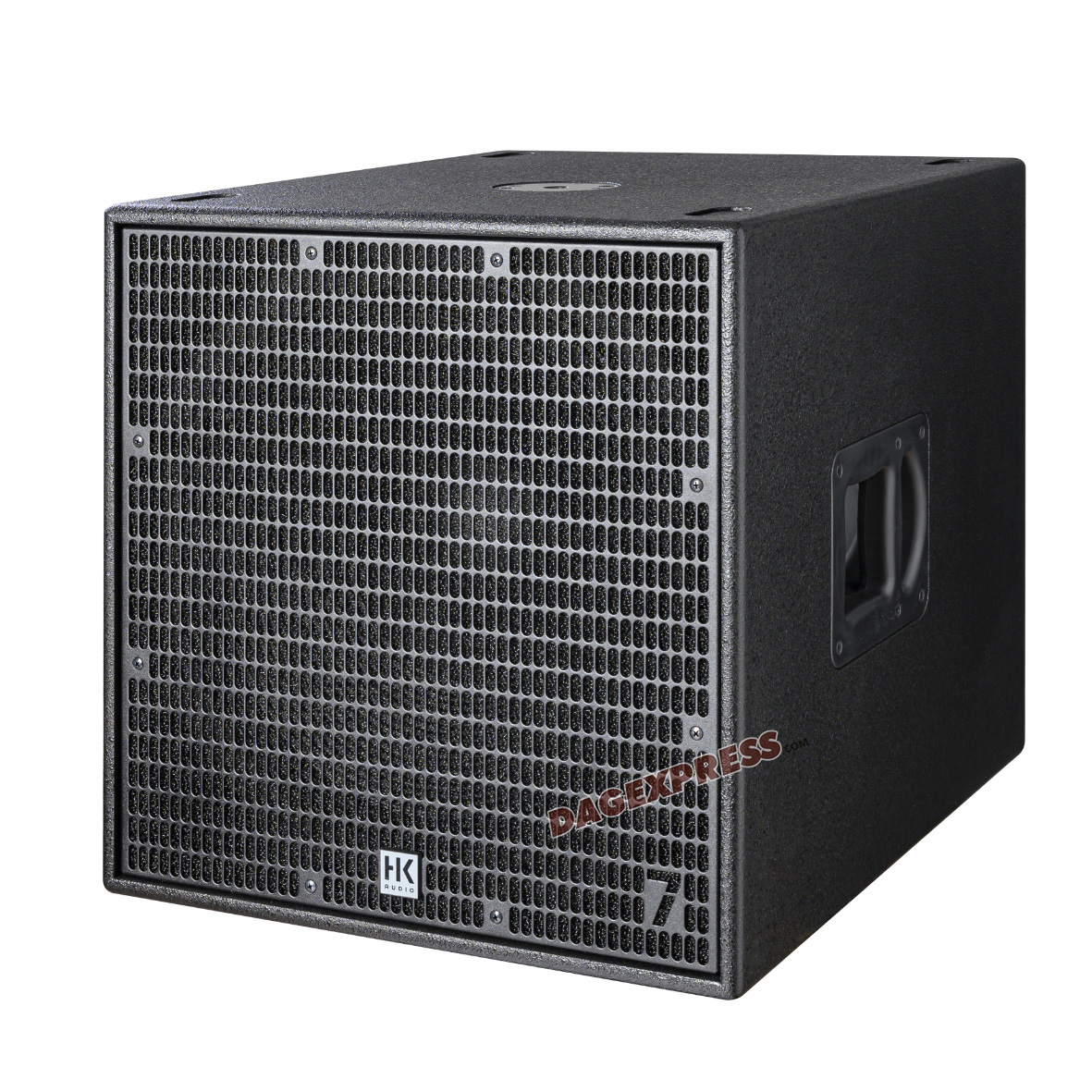

The LINEAR 7 118 Sub A is an extremely powerful yet compact 18-inch subwoofer. Equipped with all the features of the network-compatible LINEAR 7 Series, it delivers phenomenal low-frequency performance in numerous applications.
Technical data
Max. SPL @ 10% THD 129 dB half space (42 Hz – 100 Hz averaged)
Max. SPL peak @ 10 % THD 131 dB half space
Frequency response +/-3 dB 42 Hz – X-over
Frequency response -10 dB 38 Hz – X-over
Power amp output (peak power) 2000 W
Amp type Class D
LF driver 1x 18", 4" voice coil
Maximum input level +20 dBu

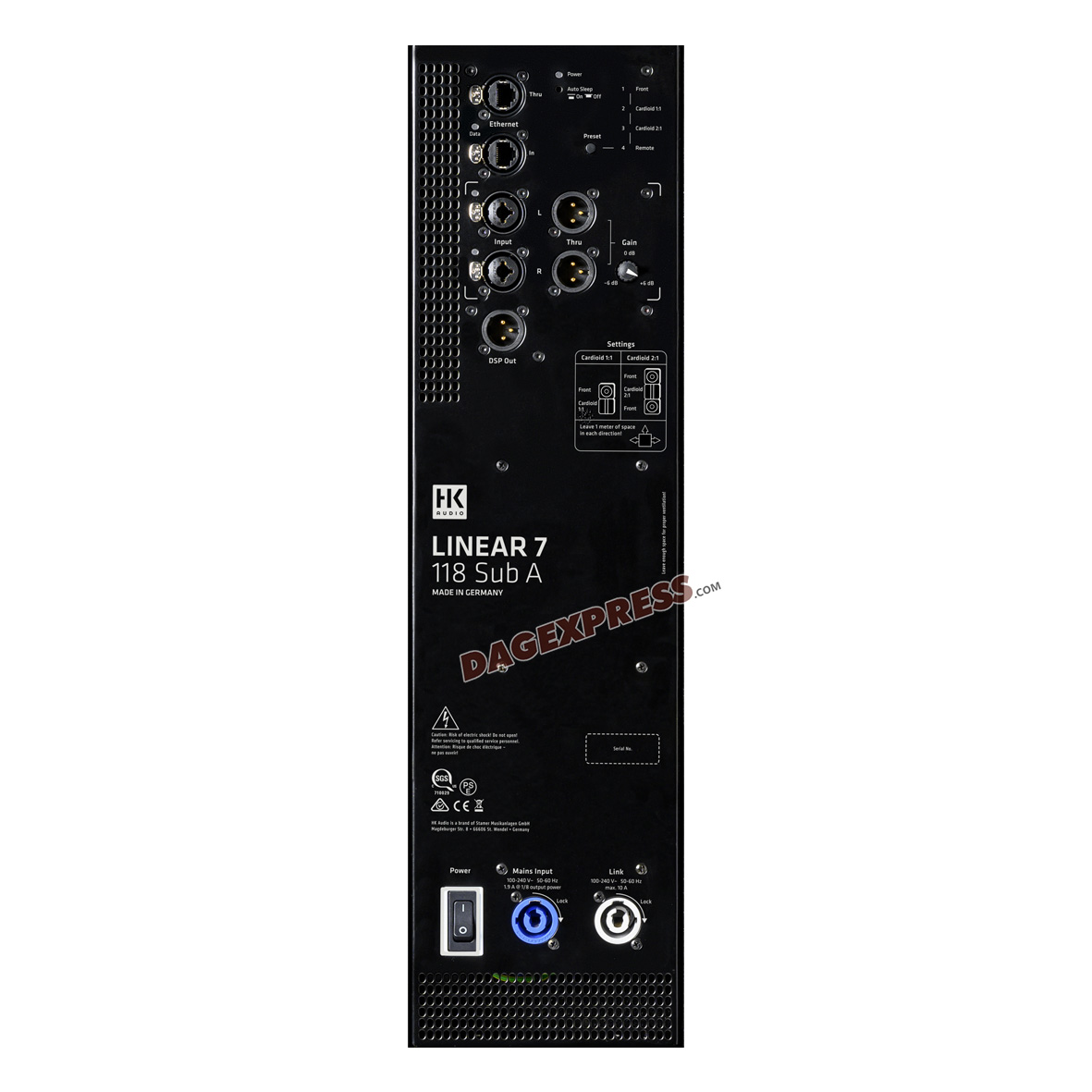

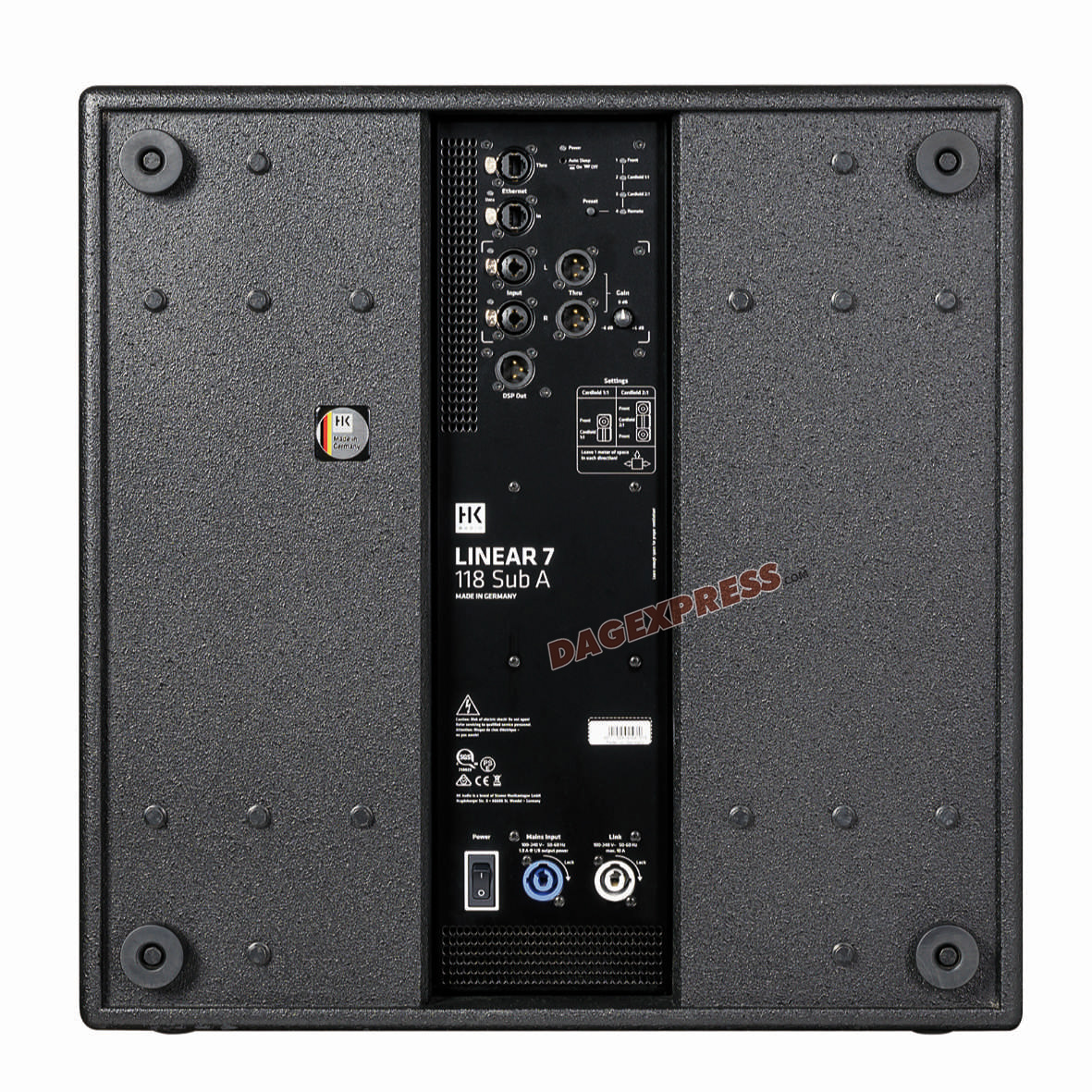

Analog inputs 2x XLR combo balanced
Analog thru 2x XLR balanced
DSP Out 1x XLR
Network port Ethercon RJ45, 1x In, 1x Thru
Filter presets Front, Cardioid 1:1, Cardioid 2:1, Remote
Remote software DSP CONTROL (Windows, Mac OS)
DSP functions Fully parametric 10-band EQ with variable filter characteristics, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate 96 kHz
System latency Less than 2.6 ms
Mains connector 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V
Power consuption 1.9 A / 100–240 V nominal according to EN 62368-1
Pole mount 1x M20
Carrying handles 2x MultiGrip
Housing Birch multiplex
Finish Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 55 x 56 x 69 cm 21-21/32 x 22-3/64 x 27-11/64"
Weight 41 kg / 90.4 lbs
