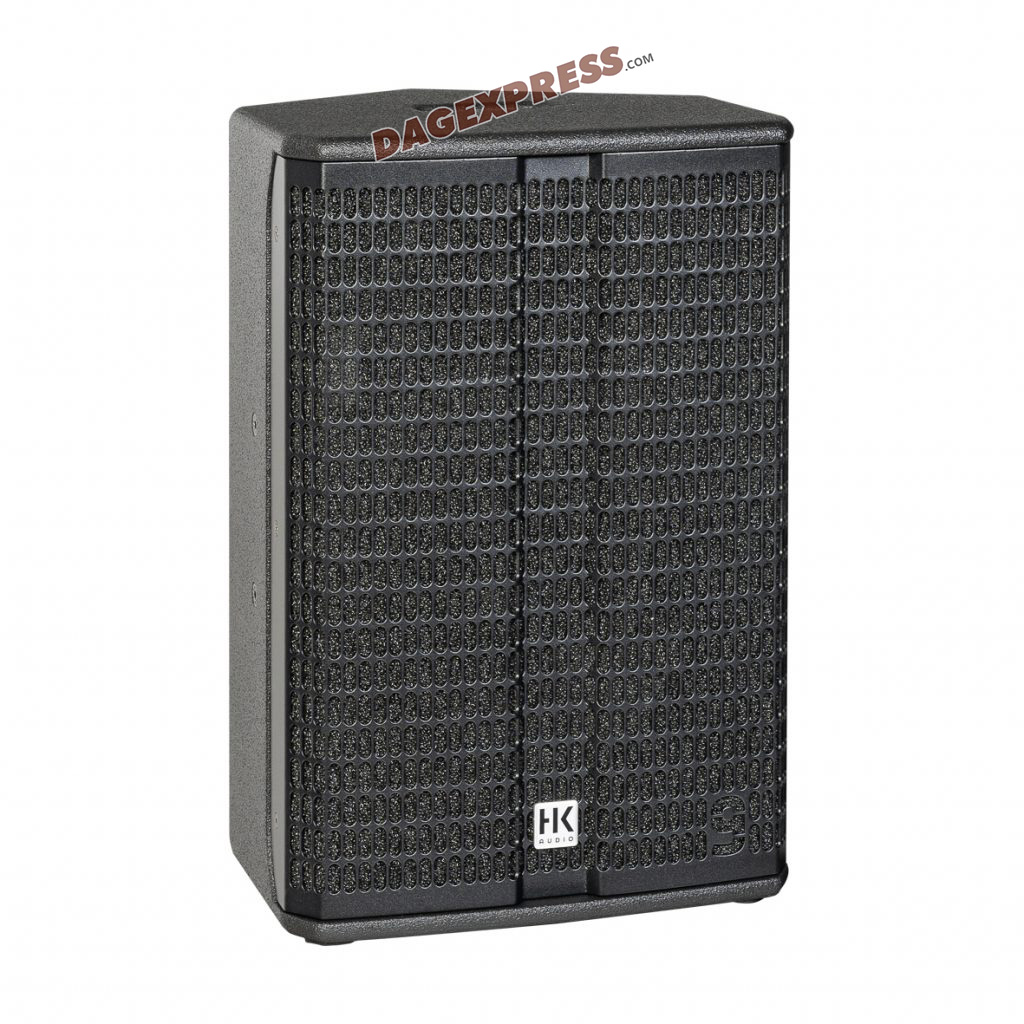

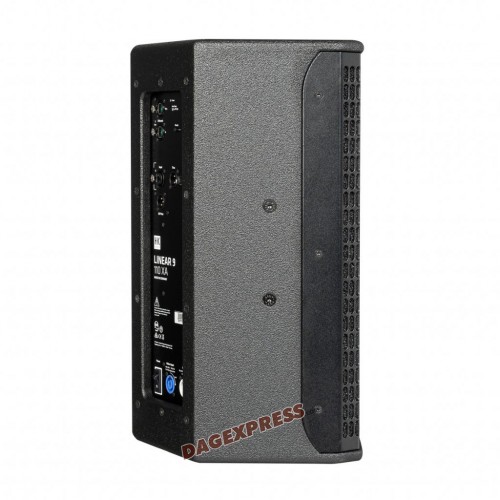

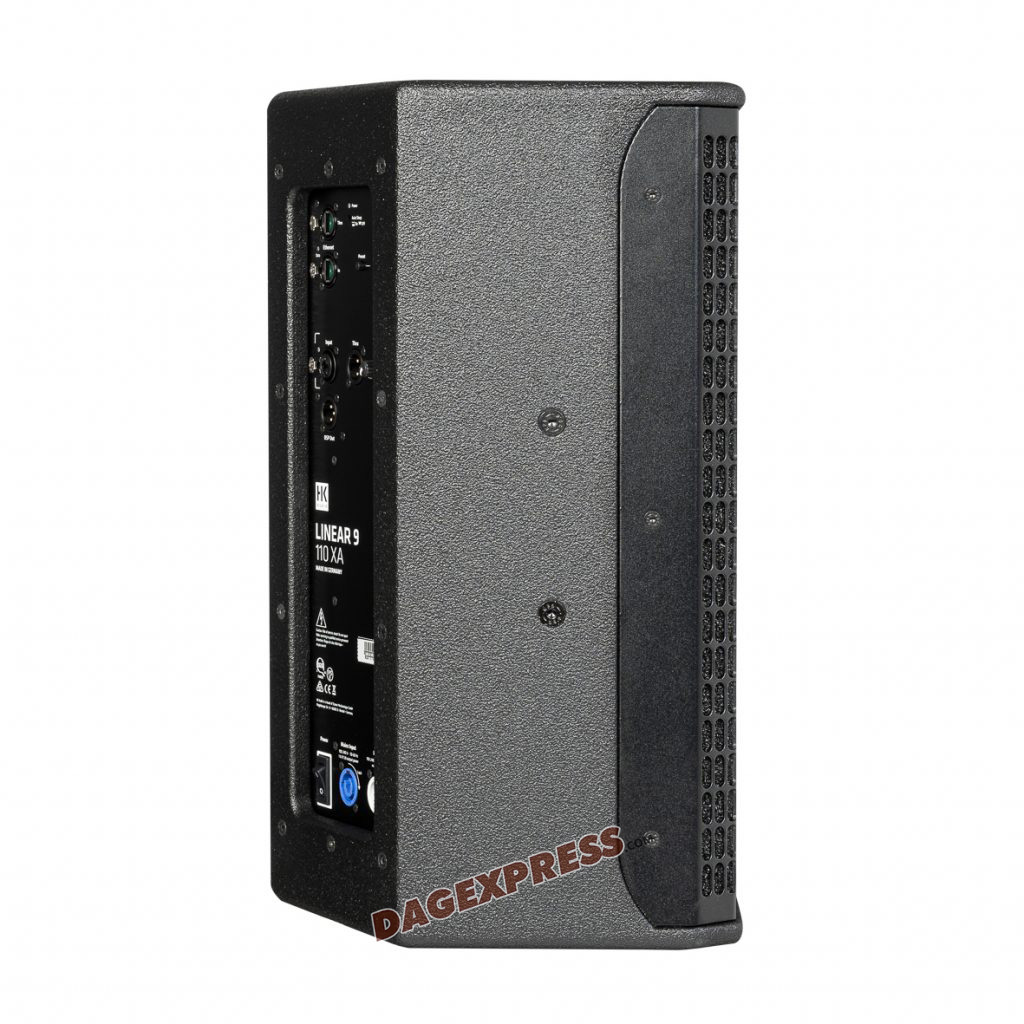

HK Audio LINEAR 9 110 XA

LINEAR 9 110 XA  LINEAR 9 110 XA
Enlarge ↗
BrandHK Audio ›
Price:$ 1629.00

Optimised horns for perfect dispersion behaviour

The dispersion angle of each speaker’s horn is optimised for its intended use. The LINEAR 9 110 XA 10" speaker is equipped with an 80° x 60° wide dispersion horn for homogeneous near-field dispersion. It can be rigged either via the rigging points (steel cables or chains in combination with the AP-8 attachment point) or with the TB-28N tilt bracket.

Technical data
Max. SPL @ 10% THD 126 dB half space (70 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD 129 dB half space
Frequency response +/-3 dB 70 Hz – 19 kHz
Frequency response -10 dB 65 Hz – 20 kHz
Power amp output (RMS) 700 W
Amp type Class D - biamped
LF driver -
Low-/mid speaker 1x 10", 2.5" voice coil
HF driver 1", 1.4" voice coil
Horn directivity 80° x 60° CD horn, rotatable
Active crossover frequency 2 kHz FIR X-over with 60 dB/oct.
Maximum input level +20 dBu
Analog inputs 1x XLR combo balanced
Analog thru 1x XLR balanced
DSP Out 1x XLR balanced
Network port Ethercon RJ45, 1x In, 1x Thru
Filter presets Flat, Monitor, Low Cut, Remote
Remote software DSP CONTROL (Windows, macOS)
DSP functions Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate 96 kHz
System latency Less than 2.6 ms
Mains connector 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V
Power consuption 1 A / 100–240 V nominal according to EN 62368-1
Clustering angle -
Angles up (Monitor angle) 30°
Pole mount DuoTilt 3°/7°
Rigging points 5x M8 (AP-8)
Carrying handles 2x SingleGrip
Housing Birch multiplex
Finish PU coating black
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 36 x 54 x 31 cm 14-11/64 x 21-1/4 x 12-13/64"
Weight 16.5 kg / 36.4 lbs
