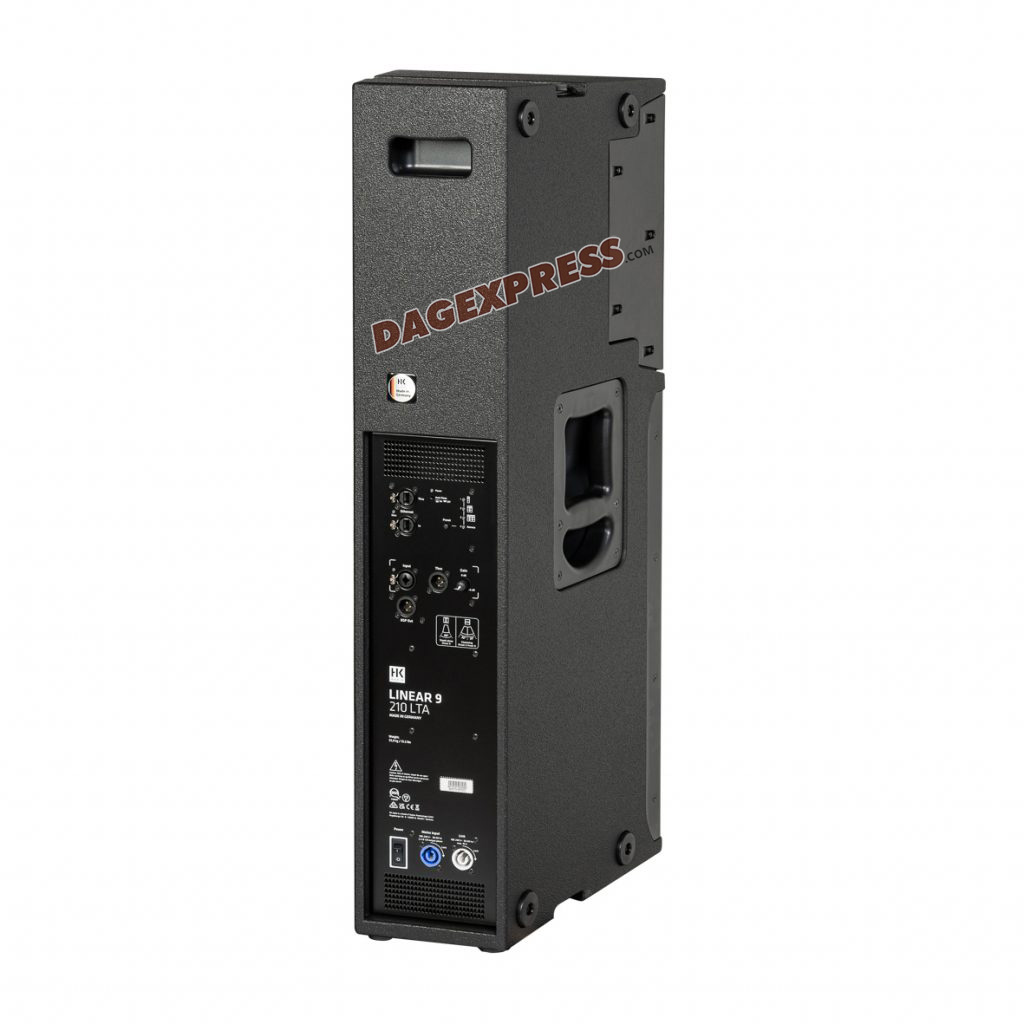

HK Audio LINEAR 9 210 LTA

Enlarge ↗
BrandHK Audio ›
Price:$ 3259.00

Exceptional performance in a scalable package

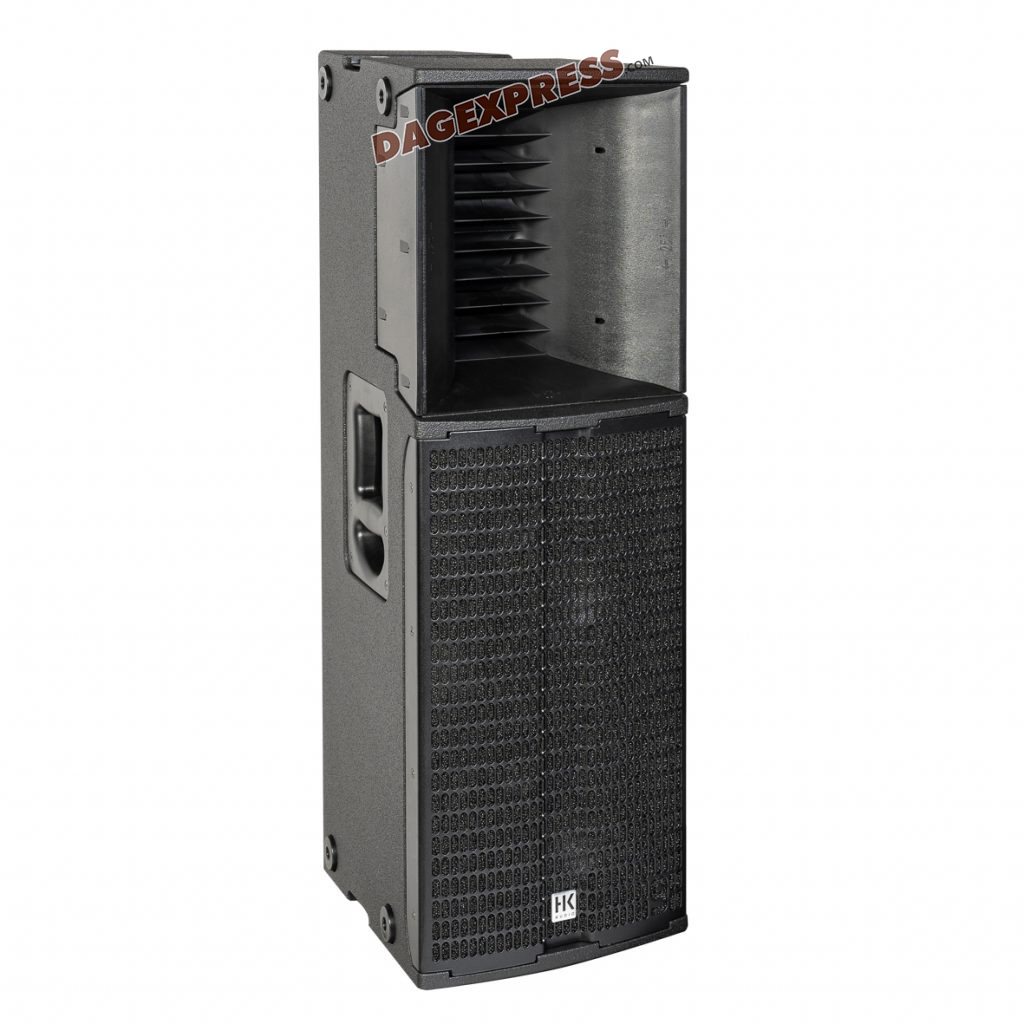

As a pure mid/high unit equipped with a rotating 60° x 25° horn with a powerful 1.4" driver and two vertically arranged 10" speakers, which are additionally directed by a carefully calculated sound guide, this speaker achieves remarkably high efficiency. The perfect interplay of these components with the powerful electronics and the large sound guides delivers impressive results with clearly defined directivity at a constant frequency.

The LINEAR 9 210 LTA is the ultimate mid/high unit within the LINEAR 9 family due to its enormous throw and power. The 210 LTA is particularly impressive in applications where the sound requirements demand the creation of a horizontal cluster or straightforward flying capabilities.

Technical data
Max. SPL @ 10% THD 133 dB half space* (88 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD 142 dB half space*
Frequency response +/-3 dB 88 Hz - 19 kHz*
Frequency response -10 dB 82 Hz 20 kHz*
Power amp output (RMS) 1,000 W
Amp type Class D - Biamped
LF driver -
Low-/mid speaker 2x 10", 2.5" voice coil
HF driver 1.4", 2.5 voice coil
Horn directivity 60° x 25° MCT horn, rotatable
Active crossover frequency 1.35 kHz FIR X-over with 72 db/oct.
Maximum input level +20 dBu

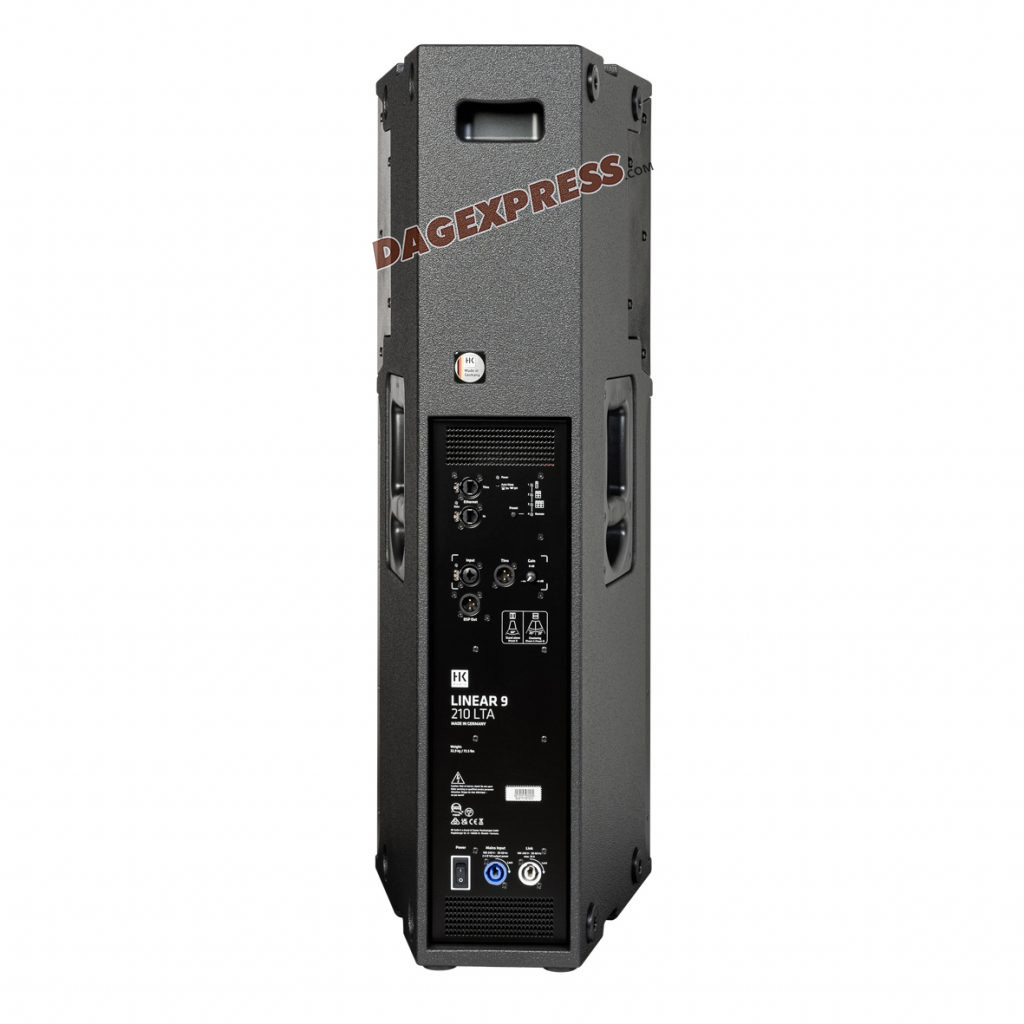

Analog inputs 1x XLR combo balanced
Analog thru 1x XLR balanced
DSP Out 1x XLR balanced
Network port Ethercon RJ45, 1x In, 1x Thru
Filter presets Stand Alone, Cluster (2), Cluster (3), Remote
Remote software DSP CONTROL (Windows, macOS)
DSP functions Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate 96 kHz
System latency Less than 2.9 ms
Mains connector 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V
Power consuption 2.5 A / 100–240 V nominal according to EN 62368-1
Clustering angle 25°
Angles up (Monitor angle) -
Pole mount DuoTilt 3°/7°
Rigging points -
Carrying handles 2x MultiGrip
Housing Birch multiplex
Finish PU coating black
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 34 cm x 96 cm x 39 cm
Weight 33 kg / 72.8 lbs
