HK Audio LSUB-1200A - HK AUDIO LINEAR SUB 1200 ACTIVE

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/HK-Audio-LSUB-1200A.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/HK-Audio-LSUB-1200A-1.jpg

Brand	HK Audio ›
Price:	$ 1419.00

DESCRIPTION

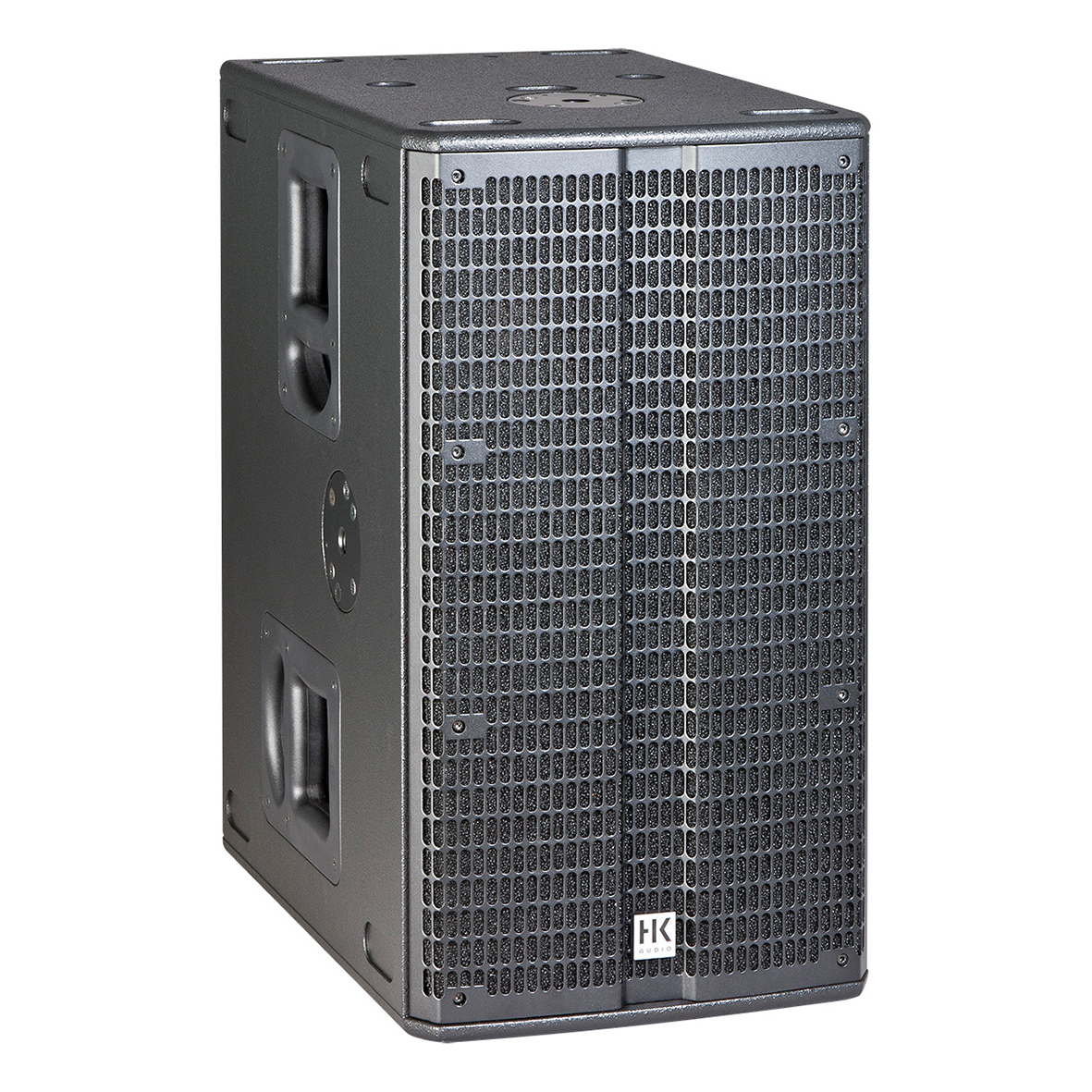

Compact, lightweight subwoofer in a bass reflex cabinet. It is ideal for band systems, and the active version features an extremely effective 1,200-watt Class-D power amp, allowing for another passive LINEAR SUB 1200 to be connected. The two 10″ woofers deliver fast and concrete bass with plenty of punch and low bass down to around 38 Hz.

Technical data
Max. SPL @ 10% THD 127 dB half space (50 Hz – 130 Hz averaged)
Max. SPL peak @ 10 % THD 130 dB half space
Frequency response +/-3 dB 51 Hz – 150 Hz
Frequency response -10 dB 42 Hz – 150 Hz
Power amp output (peak power) 1200 W
Amp type Class D
Active protection circuits Undervoltage-Protection, Thermoprotection, Short-Circuit-Protection, Overcurrent-Protection, Subsonic 24 dB/oct., Peak-Limiter
LF driver 2x 10", 2.5" voice coil
Active crossover frequency 100 Hz / 130 Hz variable with 24 dB/oct.

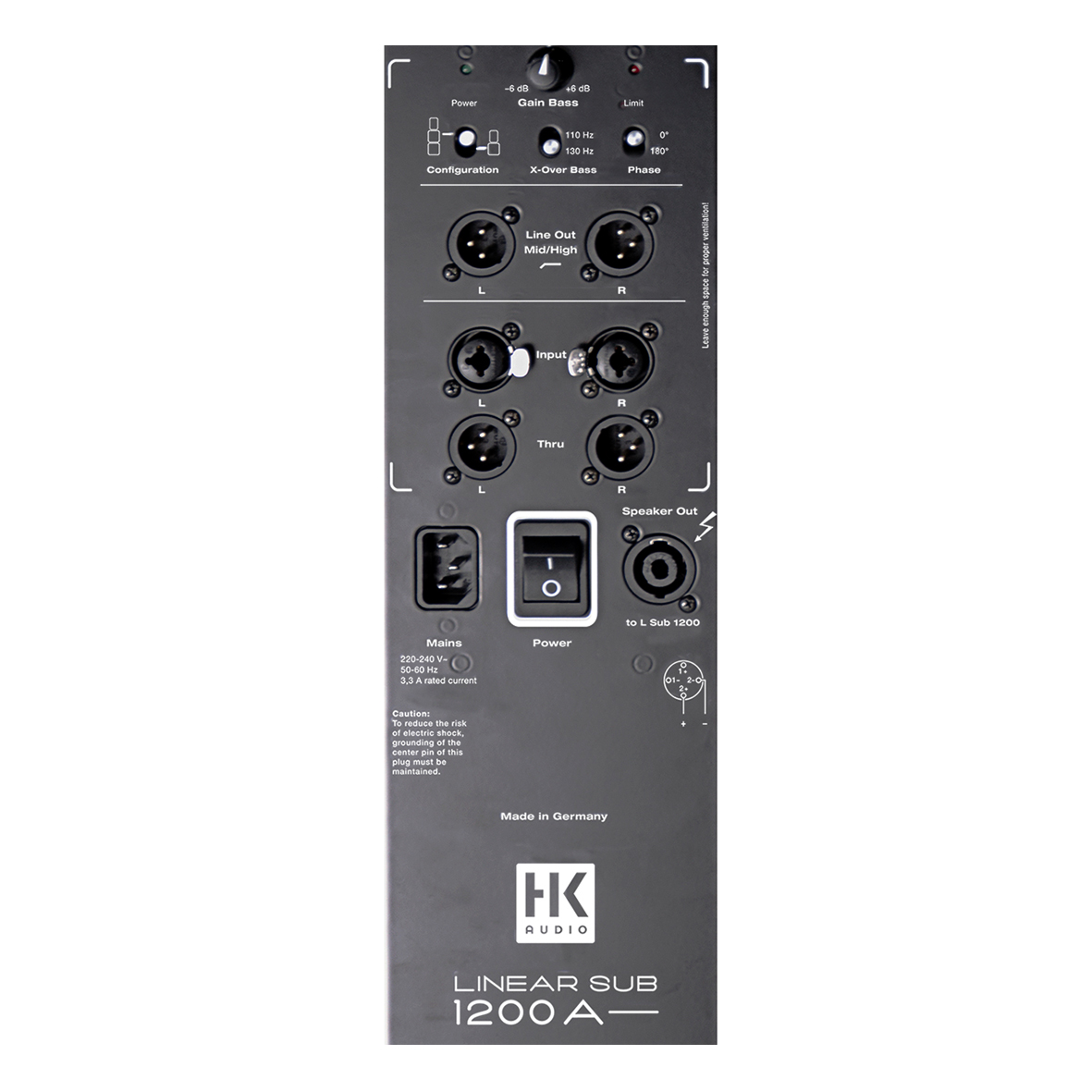

Analog inputs 2x XLR combo balanced
Analog outputs 2x XLR Thru balanced, 2x XLR Mid/High Out, Speakon NL4 to L SUB 1200
Input sensitivity +4 dBu @ Gain center-notched
Mains connector 1x IEC socket with V-Lock cord retainer
Power consuption 3.3 A / 220-240 V (6.6 A / 100-120 V) nominal according to EN 60065
Pole mount 2x M20
Carrying handles 4x MultiGrip
Housing Birch multiplex
Finish Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 38 x 66,8 x 56 cm 14-31/32 x 26-19/64 x 22-3/64"
Weight 30.7 kg / 67.7 lbs
