HK Audio LSUB-4000 - HK AUDIO LINEAR SUB 4000

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/HK-Audio-LSUB-4000.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/HK-Audio-LSUB-4000-1.jpg

Brand	HK Audio ›
Price:	$ 2079.00

DESCRIPTION

LINEAR SUB 4000 is a powerful 18″ dual vented bandpass subwoofer. It is compatible with all LINEAR 5 full-range speakers and mid/high units and delivers an impressively powerful low-frequency response from 30 to 100 Hertz. The subwoofer is the recommended extension to the LINEAR 5 LTS long-throw powerhouse. It can be used as a subwoofer extension to the existing LINEAR SUB 2000, delivering powerful low bass with optional frequency separation. Filter presets for Lab.Gruppen IPD and PLM 12K44 controllers are available.

Technical data
Power-handling nominal (RMS) 1200 W
Power-handling, program 2400 W
Frequency response +/-3 dB 39 Hz – X-over
Frequency response -10 dB 31 Hz – X-over
Sensitivity 1 W @ 1 m 106 dB half space
Max. SPL @ 10% THD 135 dB half space
Max. SPL peak @ 10% THD 137 dB half space
Electrical impedance 4 ohms
Low-/mid speaker 1x 18", 4" voice coil featuring advanced ventilated voice coil gap
Crossover frequency 100 Hz, active X-over with controller amp (can be set lower when used as a sub-low)

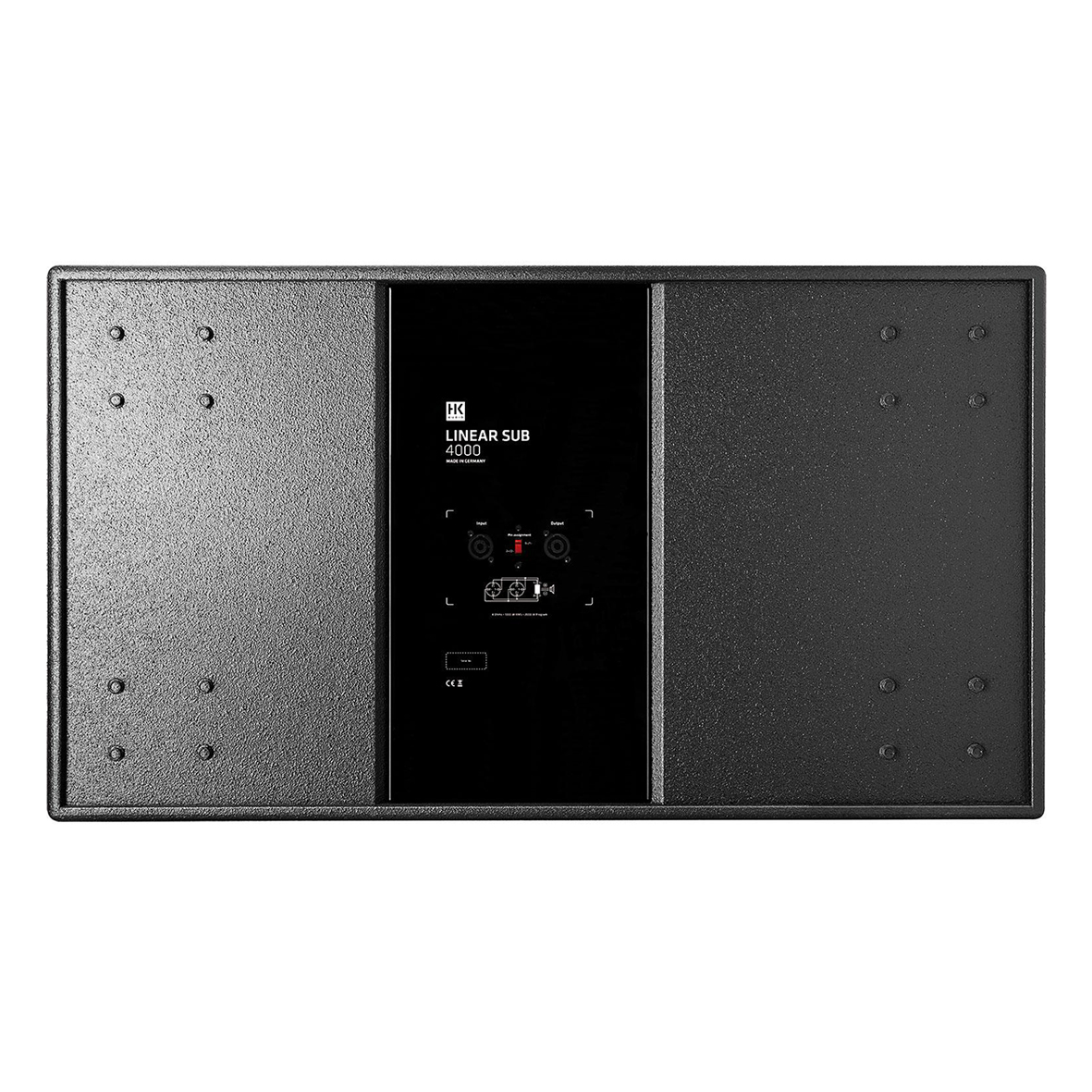

Connections 2x Speakon NL4, pin assignment switchable between 1+/1- and 2+/2-
Integrated pole mount 2x M20
Carrying handles 8x MultiGrip
Housing Birch multiplex
Finish Acrylic enamel, black
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 91 x 51 x 81 cm 35-3/4 x 20 x 31-25/32"
Weight 57.1 kg / 125.9 lbs
