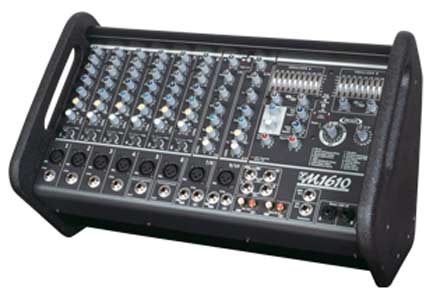

MicroMIX M1610-2 - 10 2 Channel Stereo Box Mixer - 2x 800 watts @ 4R, 2x9 band EQs and Lo/Hi Tone Controls

Enlarge ↗

Brand	MicroMIX ›
Price:	$ 1309.00

DESCRIPTION

Documentation ↗

2x800w, 10 inputs Mixer/Amp
The convenience, lighter weight and small 'footprint' of a box mixer with the tilt-back visibility and channel control access of a desk mixer makes these new 'wedge' mixers an ideal high power, high quality powered mixer solutions. High-powered high-efficiency class-H power amplifiers, newly designed input strips, on-board DSP, a new, more effective master EQ section and ten very useful and usable input channels complete the new 'wedge' mixer packages.

The 1600-watt M1610-2 has two integrated 800-watt power amplifiers that can be assigned as stereo mains, or mono main and mono monitor. Each amplifier is attached to an innovative master EQ section designed specifically for these new mixers. The master EQ has a 9-band graphic EQ with additional high and low shelving EQ's at either end of the frequency band. The nine graphic sliders are essentially all of the middle bands of a 15-band graphic EQ with the low and high frequency bands covered by separate shelving controls. This gives the user more control over the feedback-prone mid frequency bands; with high and low tone-shaping frequencies controlled by additional simple +/- 15 dB trim controls.

The M1610 has 10 input channels. The first six channels have balanced XLR microphone and TRS balanced inputs, input trim control, three-band EQ, master volume and trim set light. The mono line inputs on channels 5 and 6 are pre-EQ'd for Hi-Z instrument level input, making them an ideal place to start when looking for that perfect live acoustic guitar or direct bass sound. When the input trim level is properly set, users will have ample overall gain while taking full advantage of the new clip elimination circuit which makes it virtually impossible to distort the input of the microphone and instrument channels.

10 Channels
800 watts per channel @ 4 ohm (Assignable Left/Right or Main/Monitor)
Gold plated dual contact XLR connectors (all channels)
TRS balanced inputs (dual inputs for stereo channels 7/8 and 9/10)
"Set" LED's for easy and proper adjustment of Trim control
3 bands of EQ on channel strips
9 band graphic EQ for each output with shelving EQ for precise control
Built in Digital Effects
Footswitch jack for bypassing effects
Mute switch (channels 1-8) for quick change-over between band and DJ
Dual RCA Tape/CD In and Rec Out jacks
Optional RK1610 rackmount kit (6U)
Made in Canada

Number of Channels 10
Mono Channel EQ Low, Mid, High
Stereo Channel EQ Low, Mid, High
Channel Effects All Channels
Monitors Effects Yes
Balance Controls Ch. 7 - 10
Pan Controls Ch. 1 - 6
Channel Overload Protection Ch. 1 - 6
Inputs - XLR (bal) 8
Inputs - 1/4" 10
Inputs - RCA (unbal) 1 Pair
Mute Switches Global 1 - 8
Activity / Solo LED Trim Set Ch. 1 - 6
Clip / Mute LED All Channels
Phantom Power 48V LED Indicator
Internal Effects 24 Bit stereo, 16 Effects with Parameter Pot
Auxiliary Sends Effect - Monitor
Effects Send Yes
Effects Return Internal
Effects Return to Main Yes
Effects Return to Monitor Yes
Reverb / Effects Footswitch Yes
Record Outputs Stereo RCA Pair
Max Gain to Line Out -Mic Input (dB) 84
Max Gain to Line Out -Line Input (dB) 82
Master EQ -1 (type/Channels/Range -dB) Graphic 9 band (160hz-6.3khz) 2 band Shelving
Monitor EQ -1 (type/Channels/Range-dB) Graphic 9 band (160hz-6.3khz) 2 band Shelving
Main Outputs (Line Level) 2 x 1/4inch TRS
Main Amp Inputs (Line Level) 2 x 1/4inch TRS
Monitor Outputs (Line Level) 1 x 1/4inch TRS
Outputs - Amp A - 1/4" Jacks 2
Outputs - Amp A - Speakon 4-pin 1
Outputs - Amp B - 1/4" Jacks 2
Outputs - Amp B - Speakon 4-pin 1
Mixer - Signal to Noise Ratio (dB) 101
Mixer - Freq Resp (Tone and EQ Flat, +/- 2dB) 20 - 20,000
Mixer- Input Ref Noise to line out @150 Ohms(dBv) -119
Mixer THD (Main out with -10dB input) 0.0001
Amp A-Power Output@8 Ohms (0.1 PER THD 1kHz) 600
Amp A - Power Output @ 4 Ohms 800
Amp A - Power Output -other 600 @ 2 ohms
Amp B-Power Output@8 Ohms (0.1 PER THD 1kHz) 600
Amp B - Power Output @ 4 Ohms 800
Amp B - Power Output -other 600 @ 2 ohms
THD - 1kHz (dB) 0.001
THD - 20Hz-20kHz (dB) 0.005
Hum and Noise (un / Aweight -dB) -101
Typical crosstalk -1 kHz (dB- better than -60db
Input Impedance - Bal/Unbal (Ohms) 20k / 10k ohms
Input Sesitivity (Vrms Sine) 1.4
CMRR @ 60Hz (min/typ) -37db / -60db
Max Votage Gain (dB) 32
Power Consumption (typ/max) 6.4A @ 60hz / 3.3A @ 50Hz
Protection Thermal, Short Circuit, Current, Clip
Cooling 2 x 80mm Fans
Transformer Type Toroidial
Finish Grey and Black Powder Coat
Chassis Construction Steel and Aluminum
Rackmount Yes (Kit Available - 6U)
Other Features Tiltback or Upright Wedge Angles
Dimensions (DWH, inches) 11.1 x 18.6 x 11
Dimensions (DWH, cm) 28 x 47 x 28
Weight (lbs/kg) 31.3 / 14.2
