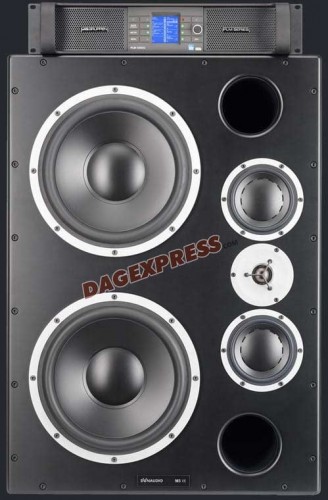

Dynaudio Pro M3XE/RIGHT - Studio Main Systems - Quad-Amped, Dual 12 inch ESOTAR Woofers, Dual 6 inch Midrange Drivers

Enlarge ↗

Brand	Dynaudio Pro ›
Price:	$ 9500.00

DESCRIPTION

Documentation ↗

For Mastering, Tracking and Mixing. Quad amped.

The Dynaudio Professional M3XE monitor system that takes monitoring to a whole new level with a significant upgrade from its predecessor - the renowned M3A 3-way monitor. Each speaker is powered by a four channel PLM 12k44 amplifier from Lab.gruppen.

With the newest and most pristine Dynaudio ESOTAR2 driver technology, M3XE takes over where most other monitor systems give up. With unsurpassed attention to detail, underpinned by an impressive 22Hz - 21kHz frequency response and beyond 135dB SPL, M3XE leaves no room for desire in terms of resolution, range or sheer power.

Different from its sister monitor M3VE, a set of M3XE's is powered by not one, but two 12k44 Lab.gruppen amplifiers, using the integrated Lake active cross-over processing as well as powering the HF, MF and dual LF woofers by the four independent amplifier channels of the 12k44.

Three-Way Main Monitor
Handcrafted drivers
For in-wall or free standing setups
Matched with Lab.gruppen PLM 12k44 amplifier
Made in Denmark

System: 3-way Active Main Monitor
Frequency Response ( -3dB): 22Hz - 21kHz
Peak SPL 1m, pair (IEC Short Term): > 135dB peak
Resonance Frequency: 24Hz
Internal Cabinet Volume: 145 liters
Bass Principle: Bass reflex
Amplifier: 1 Lab-gruppen PLM10000Q (pr. speaker). Preset: M3XE V06
Tweeter: Esotar2 28mm soft dome Magnetic fluid, Metal rear chamber, Pure alu wire voice coil, 4 mm die-cast alu front, Neodym magnet material
Midranges: 15cm with 75mm diameter pure alu wire voice coil, MSP-cone, long stroke
Woofers: Esotar 30cm with 75 mm diameter pure cupper wire voice-coil, MSP-cone, long stroke
Weight: 65kg
Dimensions (W x H x L): 555 x 775 x 505mm
Cabinet: 25mm MDF. Strategically braced and damped. Low turbulence reflex-ports. Separate chambers for each woofer.
Crossover: All 4 channels: Active dsp-based in-amp Lake processor. Each channel has impedance-correction providing the best working conditions for the ampflifier.
Specification sheet for M Series part 1
Model: 12k44
Number of amplifier channels: 4
Max out Power per Channel (4 ohms, all channels driven): 3000W
THD N at 1 kHz and 1 dB below clipping: < 0.04 %
Dynamic Range: > 114dB
Channel separation (Crosstalk) at 1 kHz: > 70dB
Inputs: Analog, AES/EBU
