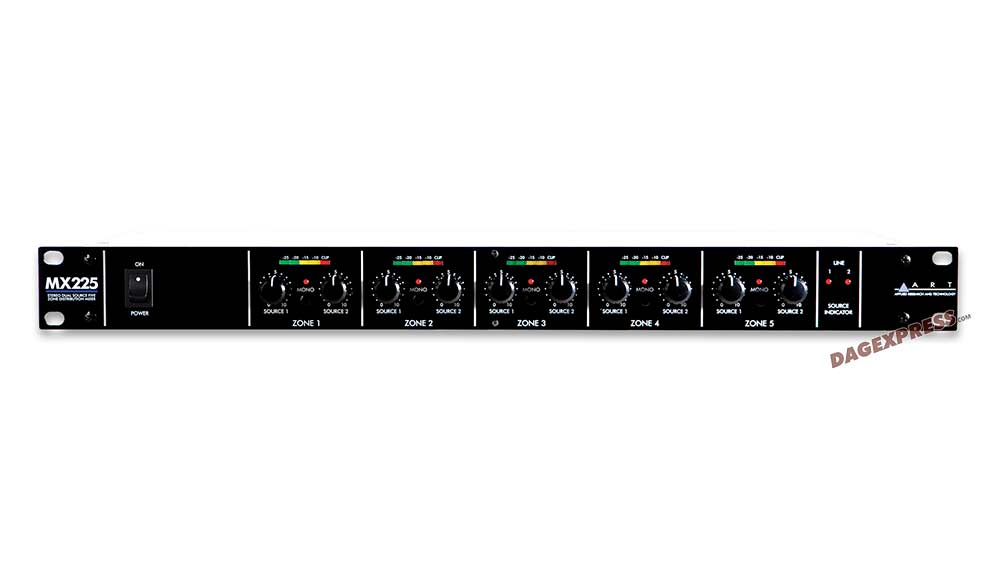

Art MX225 - Stereo Dual Source Five Zone Distribution Mixer

Enlarge ↗

Brand	Art ›
Price:	$ 209.99

DESCRIPTION

Documentation ↗

Overview
The MX225 is designed for remote volume control of multiple amplifiers or powered speakers in a distributed audio system. Two stereo sources are available to each of five output zones. Each source input pair handles separate left and right balanced line level signals. Each output zone features independent level control from inputs 1 and 2, stereo/mono selector with mono indicator, LED level metering, and left and right balanced line level zone outputs. All audio connections are balanced XLR. The built in power supply and single high 19″ rack mount format allows for easy installation and reliable operation.

Specifications
Input Connections XLR-F balanced (x4)
Output Connections XLR-M balanced (x10)
Input Impedance 47k Ω
Output Impedance 200 Ω
Total Harmonic Distortion .05% Typical
Signal to Noise Ratio > 90dB typical
Maximum Input Level +20dBu
Maximum Output Level +24dBu balanced
Maximum Gain +6DB
Power Requirements USA – 105 to 125 VAC / 50-60Hz, 15 W typical
Dimensions 1.75″H x 19″W x 7.25.0″D (44.5mm x 483mm x 184mm)
Weight 5.34 lbs (2.42 kg)
