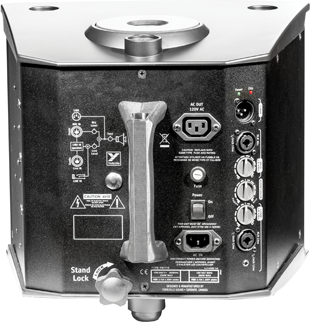

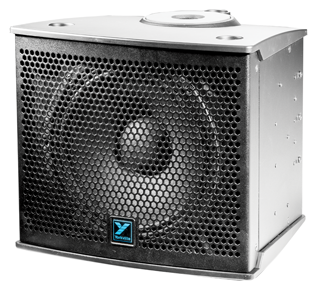

Yorkville NX10C - 300 watts - powered - 1/10 inch COAX woofer with and internal 1 inch driver - built-in mixer

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/Yorkville-NX10C.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/Yorkville-NX10C-1.jpg

Brand	Yorkville ›
Price:	$ 569.00

DESCRIPTION

Documentation ↗

Features
No need to bring separate stands for stage lighting and speakers when NX10C's can be mounted under the light bars, saving valuable stage space.
For side-wash monitor applications on tight stages, the NX10C can be mounted under the front of house cabinets to provide a monitor signal that will be fully phase coherent with the front of house signal.
The innovative custom rear mounted handle also functions as a tilt stand allowing the NX10C to be used as a compact wide coverage floor monitor or center fill cabinet.
Versatile inputs for mic or line level sources as well as an 1/8th-inch TRS jack allow the NX10C to direct connect to any audio source.
Made in Canada

Overview
No need to bring separate stands for stage lighting and speakers when NX10C's can be mounted under the light bars, saving valuable stage space.

For side-wash monitor applications on tight stages, the NX10C can be mounted under the front of house cabinets to provide a monitor signal that will be fully phase coherent with the front of house signal.

The innovative custom rear mounted handle also functions as a tilt stand allowing the NX10C to be used as a compact wide coverage floor monitor or center fill cabinet.

Versatile inputs for mic or line level sources as well as an 1/8th-inch TRS jack allow the NX10C to direct connect to any audio source.

Specifications
Active or Passive Active
Power Rating (Watts) 300 Watts (600 Watts Peak)
Biampable Self Powered
Max SPL (dB) 125dB Peak (122dB Continuous)
Frequency Response (Hz +/- 3dB) 80Hz - 20kHz
Crossover Frequency (Hz) 2500Hz
Driver Configuration Coaxial 10-inch/1-inch
HF Driver(s) 1-inch Throat, Ceramic Magnet, 1.4 inch PETP Film
HF Dispersion (°H x °V) 60 x 60
LF Driver(s) 10- inch Ceramic Magnet with a 2.5" voice coil
HF Amplifier Type Class A/B
LF Amplifier Type Two Tier Class- H
Power Cable Yes
Power Switch Yes
Power Consumption (typ/max) 100-240V, 12-5A, 1200W
Inputs 3 (Combi-jack Mic Input / Combi-jack Line Input / 1/8-inch TRS Line Input) 1/4" inputs are parallel
Input Sensitivity (Vrms Sine) 1.23 Vrms, +4dBu
Mixer Controls Contour (Playback/Vocal Mode)
Level Controls Line/Mic
Limiter Yes
LED Indicators Power, Clip
Feet Yes
Pole Mount Adapter (1 3/8"-3.5cm) Pole Through
Enclosure Materials Injection Molded Fiber Reinforced ABS / Aluminum/13ply birch
Grille Perforated Metal
Dimensions (DWH xbackW, inches) 13 X 13.5 X 12
Dimensions (DWH xbackW, cm) 33 x 34.3 x 30.5
Weight (lbs/kg) 25 / 11.3
Specifications subject to change without notice
