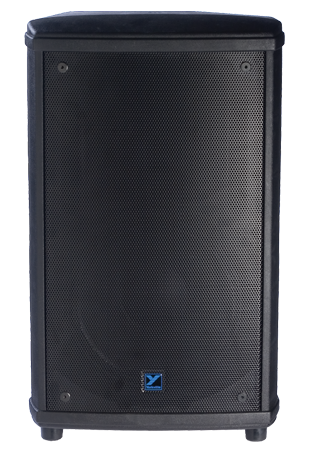

Yorkville NX35-2 - 500 watts - 8 ohms - 12" woofer & 80°x50° horn with 1 inch driver

Enlarge ↗

Brand	Yorkville ›
Price:	$ 539.00

DESCRIPTION

Documentation ↗

Features
1000 Watt Full Range Loudspeaker (500 Watts Program)
Dual purpose full range and wedge monitor format enclosure
Ultra-clear reproduction throughout bandwidth
Ultra-high efficiency performance requires less power for more output
Max SPL 130dB Peak (127dB Continuous)
High quality 1" High Frequency drivers
Next generation woofer / driver / horn technology
Integrated flying hardware (1/4" threaded holes)
Tough, full length metal grille
Recessed Input panels
Dual bulb CTL™ HF protection system
Made in Canada

Overview
The new NX35-2 is slightly larger that the original NX20. The increased cabinet volume greatly increases low frequency response and makes for a better, more balanced overall cabinet tone. It features a new 80° x 50° horn, patterned after the custom ABS waveguide horn used in the popular élite loudspeaker line.

As with all NX series enclosures, the NX35-2 is manufactured with rigid internal bracing and using tough, light weight low resonance variable density composite materials that are UV and moisture resistant. The new shape employed on the NX35-2 makes for an improved monitor angle when it is employed in that role and upright, it is ideal for mounting in tight arrays, or in multiple cabinet clusters. The NX35-2 is the ideal cabinet to become the flagship of the NX Series' compact models. All in all, the NX35-2 is an ideal solution to professional sound requirements where high performance is needed from a compact, lightweight speaker.

The NX35-2 enclosure itself has been molded for maximum versatility. The trapezoid box is ideal for mounting in arrays, or for use as a monitor. An improved wedge monitor angle has been incorporated into the new design.

Specifications
System Type 2-Way
Active or Passive Passive
Power Rating (Watts) 500 Watts (1000 Watts Peak)
Biampable No
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 100
Max SPL (dB) 130dB Peak (127dB Continuous)
Frequency Response (Hz +/- 3dB) 60 - 18k
Crossover Frequency (Hz) 2k
Driver Configuration 12 inch / 1 inch
HF Driver(s) 1.4-inch Aluminum Diaphragm / 1-inch exit
HF Impedance (Ohms) 8
HF Dispersion (°H x °V) 80 x 50
HF Protection Dual bulb CTL™
LF Driver(s) 12-inch, 2.5-inch voicecoil
LF Impedance (Ohms) 8
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Feet Yes
Bar Handles 1 (Side)
Flying Hardware 1/4-20 x 5 - 2 (Top), 2 (Bottom), 1 (Pullback)
Optional Flying Hardware NXF Flyware
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials Molded Polypropylene
Grille Black Perforated Metal
Covering / Finish Black
Dimensions (DWH xbackW, inches) 12.25 x 16 x 26.5 x 9
Dimensions (DWH xbackW, cm) 31.12 x 40.6 x 67.3 x 22.9
Weight (lbs/kg) 28 / 12.7
Specifications subject to change without notice
