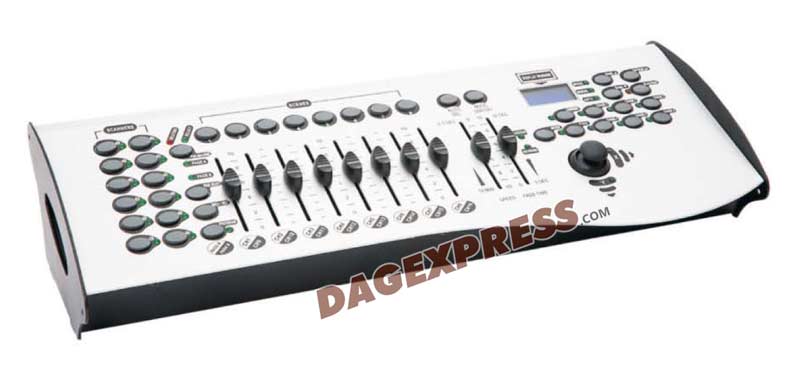

Orion Effects ORCONTROL - DMX512 Control Desk

Enlarge ↗
BrandOrion Effects ›
Price:$ 179.00

DMX Master Controller

Designed for simple setup and control of even the most complex lighting scenario, the ORCONTROL DMX512 lighting desk is capable of controlling 12 intelligent lights as well as smoke machines across 16 channels. 30 programmable banks with 8 scenes each (240 scenes) allow detailed preset design for even the most complex stage or club setup. Two assignable pan / tilt joysticks ensure the ORCONTROL is ready when you expand into moving head lights and effects. All channels and faders can be reassigned for detailed system control. The ORCONTROL is able to run multiple chases simultaneously, and can tap sync, audio sync or auto run depending on application. Ideal for use with any and all Orion DMX ready lasers, LEDs and smoke machines.

Universal DMX512 Controller
Controls 12 Intelligent Lights up to 16 Channels
30 Banks of 8 Scenes (240 Scenes Total)
Set up to 6 Chases containing 240 Scenes
Executes Multiple Chases Simultaneously
Channels are Re-assignable
Assignable 16-bit Pan / Tilt Joystick Controller
Beat Activation, Tap Sync, Auto Run Mode
Selectable DMX Output Polarity
MIDI Compatible

DMX Protocol: DMX-512 USITT
DMX Connections: DMX XLR 3-Pin Input & Output
Additional Conenctions: Audio Input (Sound Active Mode)
MIDI Input (Bank/Scene Select)
5-Pin DIN plug (Fog Machine Control)
USB Lamp Socket / Power Port
Power Supply: DC 9-12v 500mA
(Use Supplied Power Supply Only)
Dimensions (in): 19 x 7.5 x 3.5
Dimensions (mm): 482 x 190 x 90
Weight: 7.7 lbs / 3.5kg
