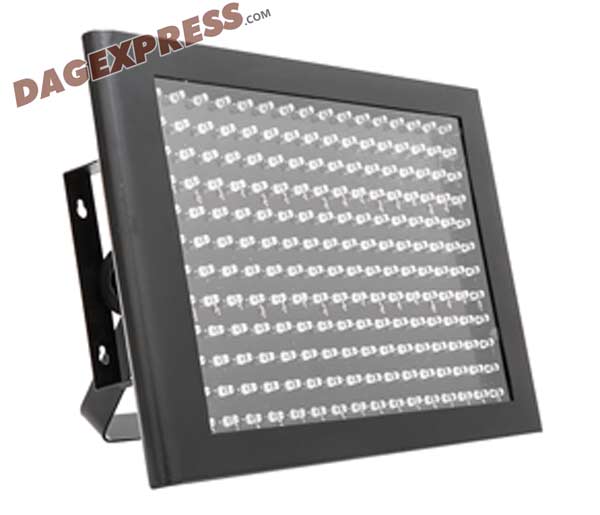

Orion Effects ORFX105 - UV Pulse Blacklight Panel - DMX
Enlarge ↗
×
Brand
Orion Effects ›
Price:
$ 149.00
DESCRIPTION
Documentation ↗
The ultra compact ORFX105 Black Light Strobe is designed for indoor use only, the unit should never be exposed to rain or excess moisture. This fixture should never be connected to any kind of external AC dimmer, and will operate only at intended voltage. There are no user serviceable parts inside. Should the ORFX105 fail, it should be referred to qualified service technician for repair.
The Orion ORFX105 can be run in manual operation from the controls on the back panel (see operation guide below), or via DMX512 controller through the XLR inputs provided. XLR is configured as follows:
Pin 1: Ground
Pin 2: Data Negative
Pin 3: Data Positive.
Manual Operation:
Switch 1: Tier 1 Lights
Switch 2: Tier 2 Lights
Switch 2: Tier 3 Lights
Switch 4: Intensity (high or low - In conjunction with Switches 1, 2 and 3)
Switch 5: Sound Active on / off
Switch 6: Pattern Motion
Switch 7: Fade Motion
Switch 8: Strobe
Switch 10: DMX
Light Source: 192 x 5mm UV LED
Operational Modes: Sound Active, Automatic & DMX Operation
DMX Protocol DMX-512 (6 Channels)
DMX Connection: 3-Pin XLR (In / Thru)
Input Power: AC 110-230V 50Hz / 60Hz
Power Consumption: 30 Watts
Dimensions (in): 14 x 9.5 x 3.0
Dimensions (mm): 355 x 241 x 76
Weight: 5.1 lbs / 2.3 kg
