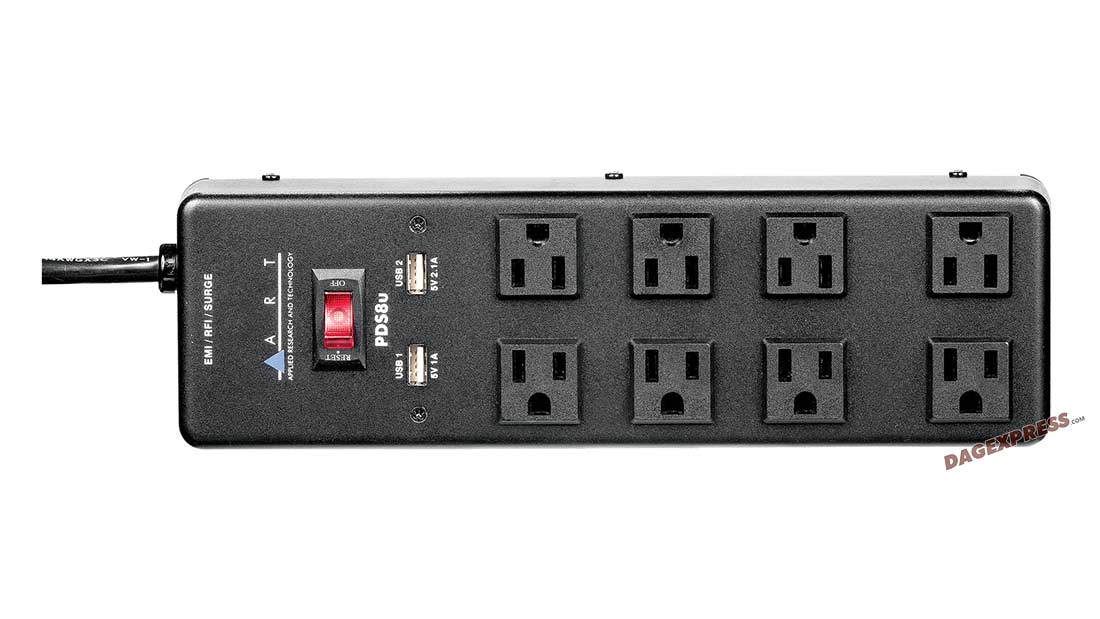

Art PDS8U - Eight AC recept with 2 USB outlets floor bar - 20' cord and durable metal casing

Enlarge ↗
BrandArt ›
Price:$ 115.99

Built for maximum functionality, the PDS8u has Eight AC outlets with opposing orientation ensuring easy access for AC cables. Two AC outlets are spaced for large size ‘wall wart’ adaptors. 1.0 and 2.0 Amp USB ports are included for powering tablets, iPhones and other USB accessories for added convenience.

PDS8U Applications:

Advanced EMI and RF filtering as well as Overload Protection ensures minimum external noise pollution interference with your audio system while offering additional safety for your valuable equipment
Solid all-metal chassis and heavy duty 20′ (6m) input AC cable ensures maximum long term reliability in this rugged package
Protects your delicate electronic equipment with a high voltage varistor (MOV) surge and transient suppressor.
Fast-acting suppression circuit responds in less than a nanosecond, clamping transient voltages to safe levels

Maximum Continuous Operating Voltage 130 VAC RMS
Maximum Output Current 15A
Line Cord 20ft., captive, 14AWG, With 3-conductor Edison Plug
Operating Voltage 120VAC/60Hz
Spike Protection Line to neutral
Energy Dissipation 1700 Joules
Peak Impulse Mode 12000 A
Let Through Voltage 400 Volts ( @125amps, 8/20us waveform)
Noise Attenuation Transverse mode: Greater Then (26db, 200kHz to 10Mhz)
USB Charger 2 port 5v/3.1A/(ovp&ocp)
Dimensions 1.61″H x 3.39″D x 11.02″W (41mm x 86mm x 280mm)
Weight 2.65 lbs (1.2 kg)
