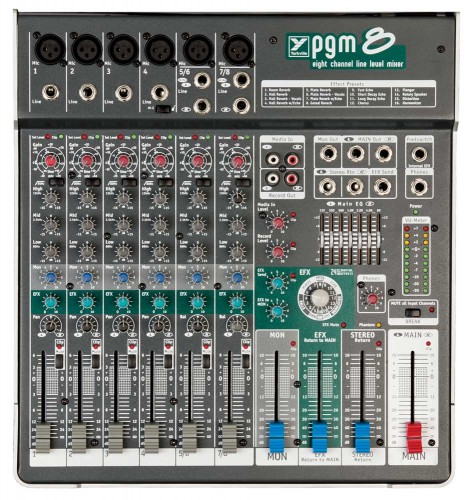

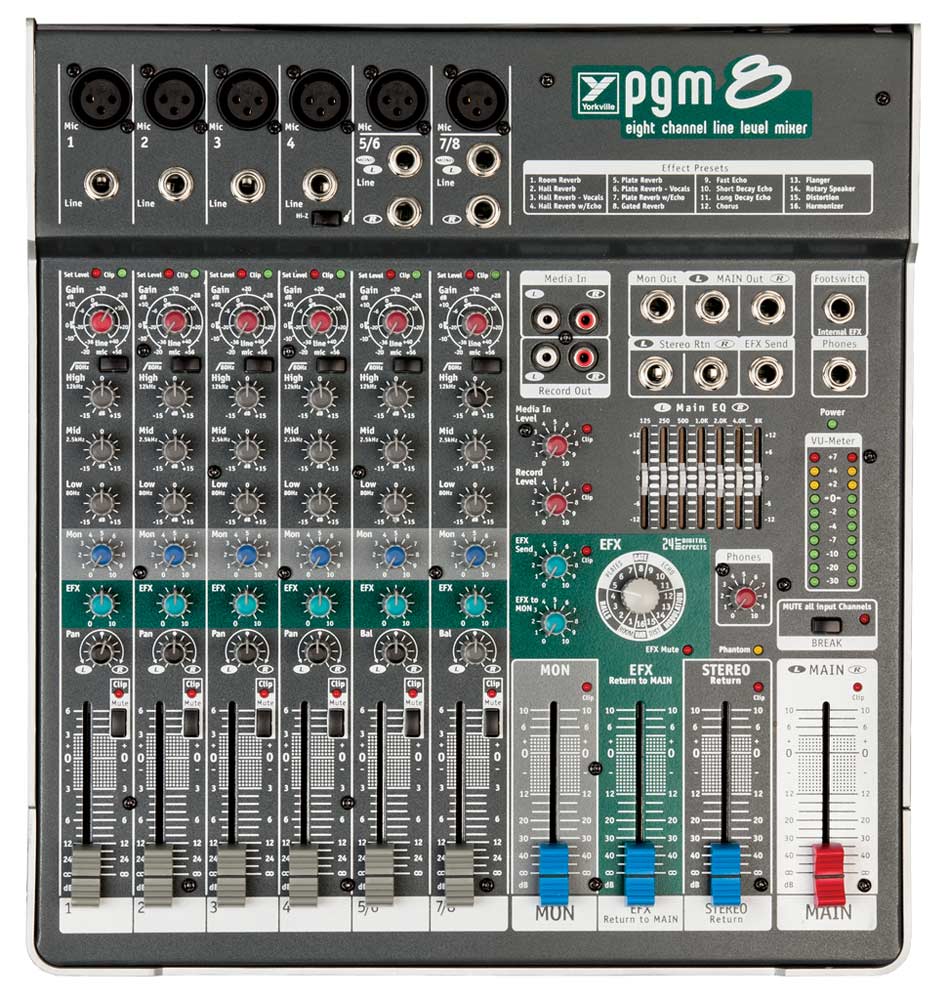

Yorkville PGM8 - 8-Channel Passive Mixer with Digital Effects and Graphic EQ

PGM8 - 8-Channel Passive Mixer with Digital Effects and Graphic EQ
PGM8 - 8-Channel Passive Mixer with Digital Effects and Graphic EQ
Brand:Yorkville ›
 Passive Console Mixers ›
Price:$ 339.00

Passive Series - PGM8
Compact Mixer
The Yorkville PGM8 delivers all of the essential features needed in a professional mixer in a convenient, ultra-compact package. High quality 60mm faders throughout, effective fully featured input channel design, 24-bit digital effects, and break switch make the PGM8 the perfect mixer for live music applications and for small installs.

Four Mono Input Channels with XLR & ¼-inch TRS inputs
Channel 4 Mono Input has a Hi-Z input switch
Two Additional stereo line input channels (5/6 and 7/8)
Additional XLR mono input per stereo channel for maximum 6 Mic inputs
Input gain level control with Non-defeatable soft multi-slope compressor on every input
3-band EQ, High Pass Filter, Monitor send , Effect Send, Clip LED, Mute Switch and Pan control per Channel
60mm Faders Throughout
Global 48 volt Phantom Power
7-band stereo graphic EQ on Main Outs
Stereo RCA Record Outputs with Level Control
BREAK Switch (mutes all input channels)
Stereo RCA Media Input Jacks with Rotary Level Control (returns pre equalizer, post BREAK switch).
Monitor TRS Output
Main stereo TRS phone and XLR outputs
Sixteen 24-bit digital audio effects
Effects TRS output jack
Effects defeat footswitch jack
Effects return to Main and Monitor
Stereo Return TRS jacks with fader
Headphone Level Control
Stereo Headphone Output Jack (Signal strong enough to drive 8-ohm speakers)
Dual 10-segment LED Output Meter
IEC removable line cord receptacle (No Adaptors)
Universal Power Supply from 90VAC to 264VAC at either 50Hz or 60Hz.

Number of Channels 8
Mono Channel EQ 3-band
Balance Controls Yes
Pan Controls Yes
Channel Overload Protection Yes
Inputs - XLR (bal) 6
Inputs - 1/4" 6
Inputs - RCA (unbal) 1 stereo pair
Phantom Power 48 volt + LED indicator
VU Meter 2 x 10 Segment LEDs
Headphone Monitor Features yes
Internal Effects 24 bit stereo 16 effects
Effects Send 2 (1 internal, 1 external)
Effects Return to Main Yes
Effects Return to Monitor Yes
Reverb / Effects Footswitch Yes
Record Outputs 1 stereo pair
Mixer - Signal to Noise Ratio (dB) Greater Than -100dB
Mixer - Freq Resp (Tone and EQ Flat,±2dB) 20Hz - 20KHz
Mixer THD (Main out w/ -10dB input) Less Than 0.05%
Typical crosstalk -1 kHz (dB- Greater Than -60dB
CMRR @ 60Hz (min/typ) 55dB/65dB
Power Consumption (typ/max) 26VA (typical)
Chassis Construction Steel
Dimensions (DWH, inches) 14.2 x 12.8 x 2.8
Dimensions (DWH, cm) 36 x 32.5 x 7
Weight (lbs/kg) 8.5/3.8
Specifications subject to change without notice
