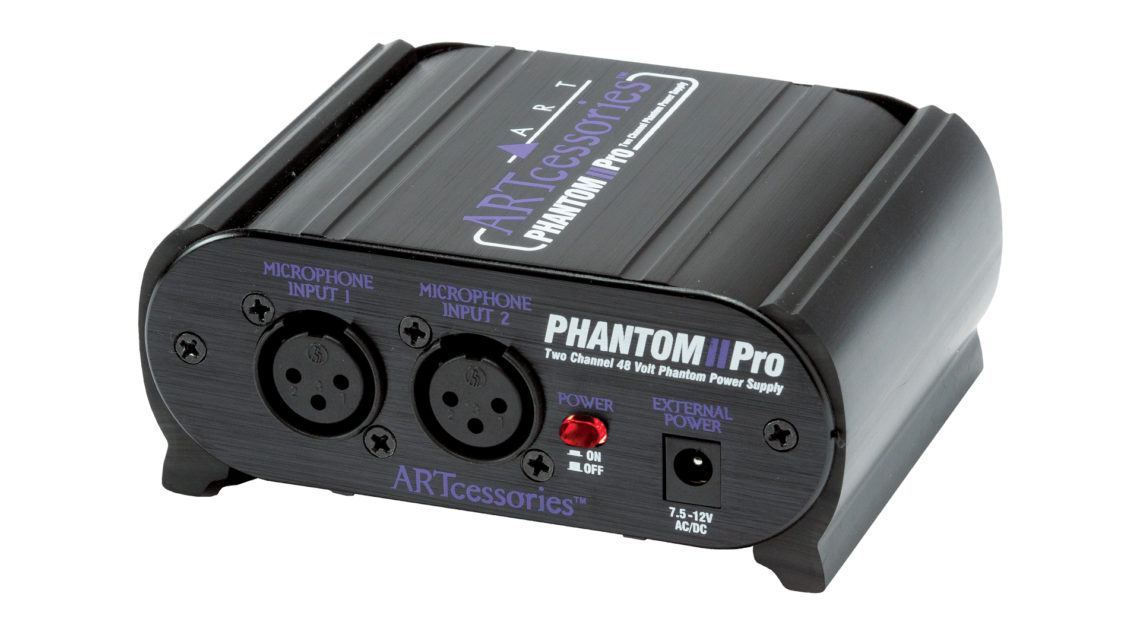

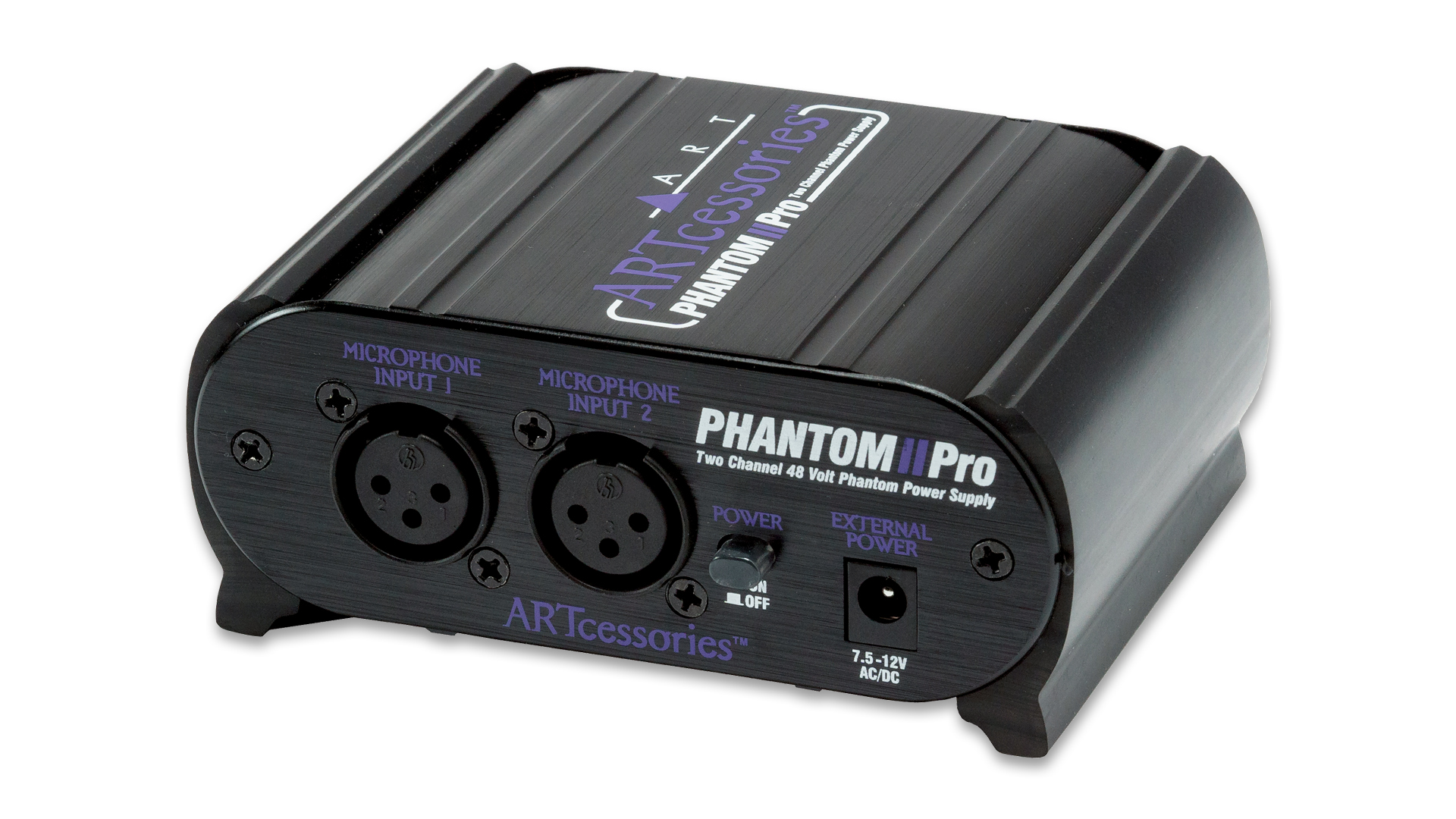

Art PHANTOM2PRO - Phantom II Pro - Dual Channel Phantom Power Supply



PHANTOM2PRO - Phantom II Pro - Dual Channel Phantom Power Supply
PHANTOM2PRO - Phantom II Pro - Dual Channel Phantom Power Supply
Brand:Art ›
 ARTcessories - Audio Solution Boxes ›
Sku:PHANTOM2PRO
Price:$ 54.00



The Phantom II Pro is designed to do one thing and do it well. It provides clean, reliable phantom power for one or two condenser microphones in a rugged, compact, and portable unit. Innovative low power circuitry generates the higher voltage necessary for powering microphones while maximizing battery life. The Phantom II Pro installs inline between your microphone and a balanced line input on your gear. Balanced lines offer increased immunity to external electrical noise, such as hum. Since a balanced system minimizes induced noise, it is the preferred method of connecting audio gear, especially when long lengths of cable are used.

The Phantom II Pro is an invaluable tool in application areas including (but not limited to): home or professional recording studios, live sound, PA, permanent installs, DJ, AV, podcasting and broadcasting. Use it with mixers, audio processors, digital audio workstations or anywhere you need phantom power for your mics.

Key Features
XLR connectors for balanced inputs and outputs
Low power, high efficiency CMOS circuitry for Long battery life using a standard 9 Volt battery (Alkaline recommended)
Can be powered with an external power supply for operation from AC mains
Rugged extruded aluminum case with accessible battery compartment
LED lighted On/Off switch
Low noise, low distortion circuitry

Specifications
Input Connections Female XLR (2)
Output Connections Male XLR (2)
Phantom Power 48 Volts DC typical
Current Limiting Resistors 6.98k Ω (1%)
Current Drain 10 mA – no load / 45 mA – typical (full load – 2 microphones)
Power 9V battery (IEC 6LR61, ANSI-1604A type Alkaline recommended) orexternal supply 7.5-12 V AC/DC, Any Polarity, <150 mA
Battery Life > 10 hours with Alkaline battery – typical (full load)
Dimensions 1.85″H x 4.6″W x 3.9″D (47mm x117mm x 99mm)
Weight 0.82 lbs (0.37 kg)
