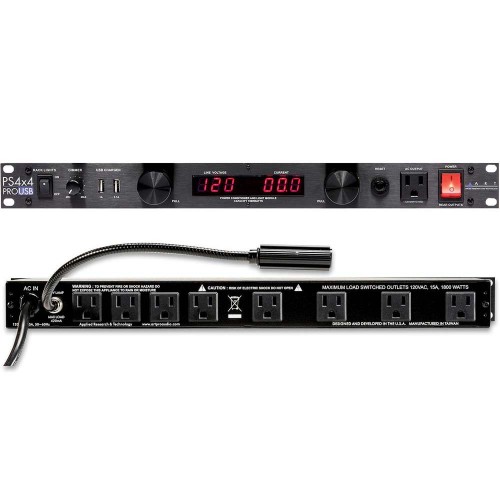

Art PS4x4PRO 1U - 8+1 Output Dual LED Metered Power Distribution System with 2x USB and Lights - 1800W

Enlarge ↗

Brand	Art ›
Price:	$ 269.99

DESCRIPTION

Documentation ↗

Key Features
8 Switched 3-Prong Outlets
Front Unswitched 3-Prong Outlet
Two USB Charging Ports on Front
Front Circuit-Breaker Reset Button
Two Front Pullout Light Pipes
Rear Gooseneck Light Connection

Distribute and filter power for up to nine devices with the ART PS4x4 PRO USB Dual LED Metered Rackmount Power Station. It features eight rear outlets with a front-panel switch, plus an extra unswitched outlet on the front. Two front-panel USB ports let you keep your compatible mobile devices charged, and the reset button allows you to reset the circuit breaker. A gooseneck light can be attached to the back, and two pullout light pipes help you see the front of your rack.

APF (Advanced Power Filtering)
APF is designed to filter out digital and dimmer hash as well as high-frequency noise above the audio range.
Common Mode and Differential Mode Topologies
By using these two topologies in series for the filter design, the PS4X4 PRO USB is engineered to block virtually all of the unwanted noise between the AC line and the ground, as well as both sides of the AC line, to help reduce ground loop problems in your system. Additionally, any signals above 10 kHz are filtered from the line with over 40 dB of attenuation above 100 kHz.

Additional Features
Surge and spike protection
EMI and RFI filtering
Front-mounted unswitched power outlet
Adjustable, detachable rear-mounted gooseneck light source to illuminate behind the rack
Four rear outlets spaced 1.25" apart to accommodate large power plugs
Pullout light pipes with AutoOff and Dimmer
Front-mounted circuit breaker reset switch
LED digital readouts to monitor input voltage and load current
Meter preview momentary rocker switch

SPECIFICATIONS
Power Capacity 1800 Watts
Circuit Breaker 15 Amp Domestic, 8 Amp Export Front Location
Power Outlets Rear Outlets (x 8) Front Outlet (x 1)
USB Charger 5V/3.1A (OVP&OCP)
Power Switch Front Location - On/Off
Power Switch Illumination Yes - In "On" Position
Surge & Spike Protection Yes
Power Dissipation 1800 Joules
Filtering APF, EMI & RFI
Construction All - Steel Chassis
Light Pipes PB4x4Pro - None
SP4x4Pro - 2 Front Pull-Out Shock Mounted w/dimmer
PS4x4Pro - 2 Front Pull-Out Shock Mounted w/dimmer
Metering PB4x4Pro - None
SP4x4Pro - Input Voltage
PS4x4Pro - Input Voltage, Load Current
Dimensions (HWD) 1.75-inch x 19-inch x 6.5-inch
44mm x 482mm x 165mm
Weight 5.5 lbs. (2.5 kg) PB4x4PRO
6.3 lbs. (2.8 kg) SP4x4PRO
6.6 lbs. (3.0 kg) PS4x4PRO
