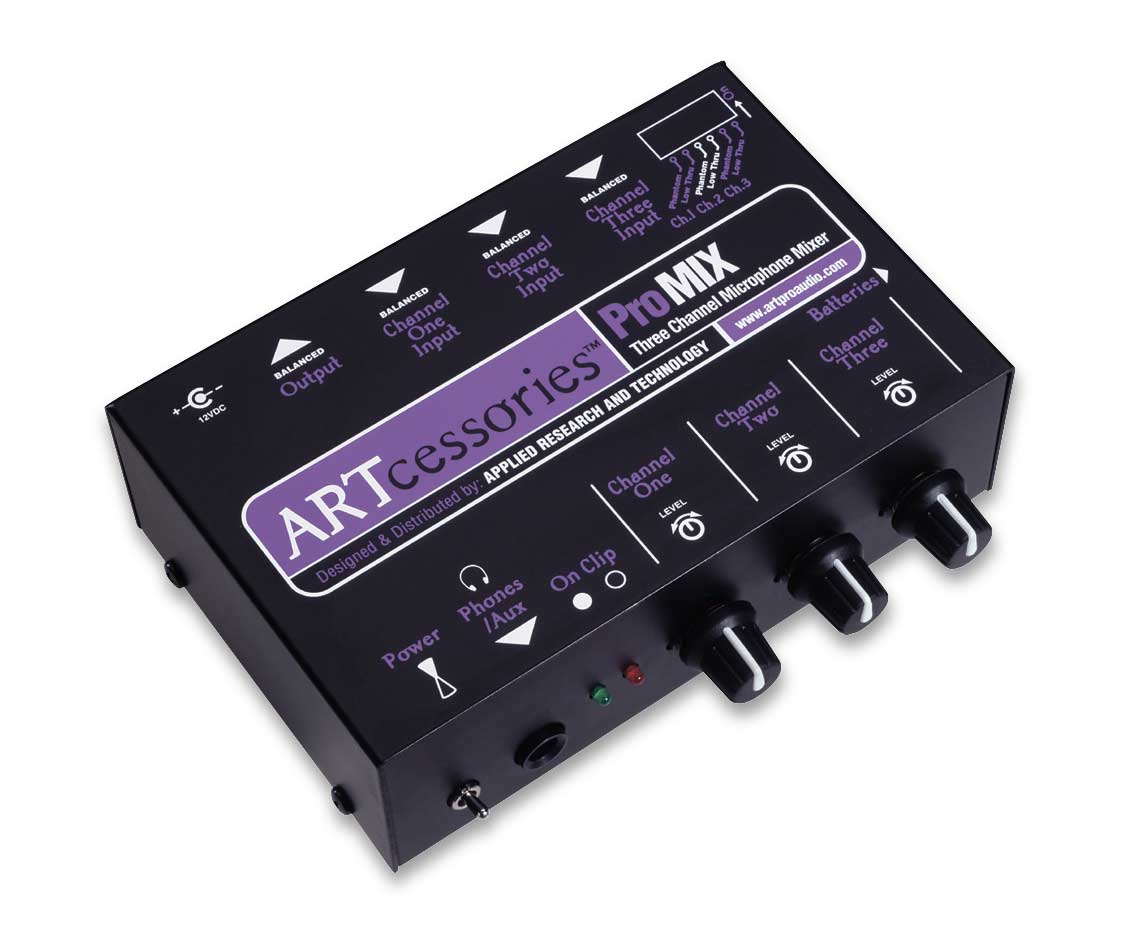

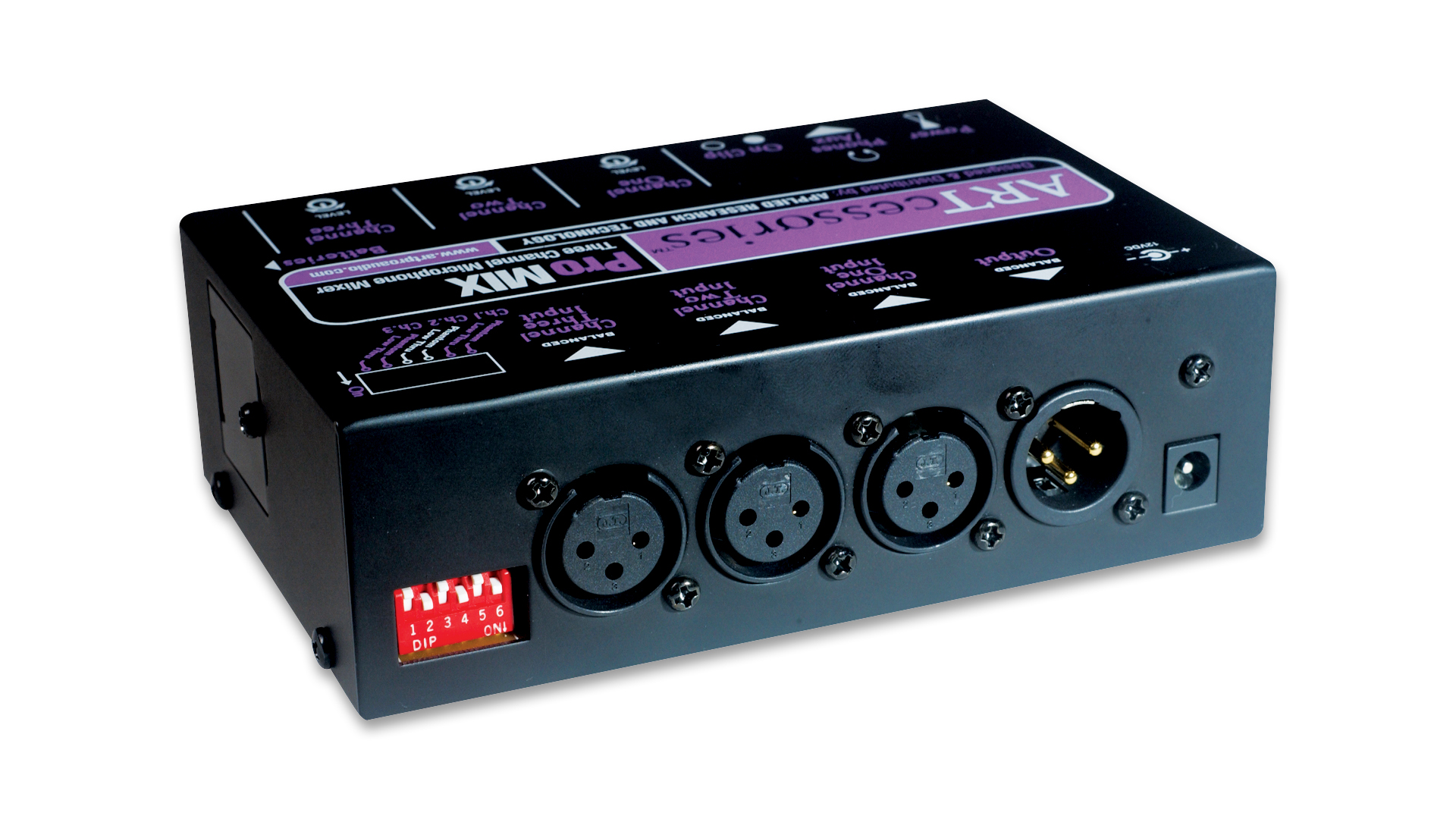

Art ProMIX - Three Channel Microphone Mono Mini Mixer

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/Art-PROMIX.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/Art-PROMIX-back.jpg

Brand	Art ›
Price:	$ 139.99

DESCRIPTION

Documentation ↗

Problem: You need to add 3 mics to a mixer, which only has one available channel.

Solution: Insert a ProMIX between the mics and the mixer. Each mic channel on the ProMIX has both phantom power and low-frequency cut selectable via DIP switches plus a level control. The balanced XLR line output can be connected to a mic input on the mixer and headphones or a powered monitor can be connected to the Phone/Aux output. And if AC power is not available, the ProMIX runs on batteries as well.

Specifications
Maximum Gain +60dB
Input Impedance 600 Ohms
Maximum Input Level -14dB
Maximum Output Level +14dB
Output Impedance 600 Ohms
Total Harmonic Distortion 0.0002
Low Cut -3dB @ 100Hz
Clip Headroom 3dB
Output Phantom Power 12V DC
Power 12V DC (adapter) / 2x 9V (batteries)
Dimensions 5.625×3.75×1.75 inches (143mm x 92mm x 45mm)
Weight 1.5lb (680g)
