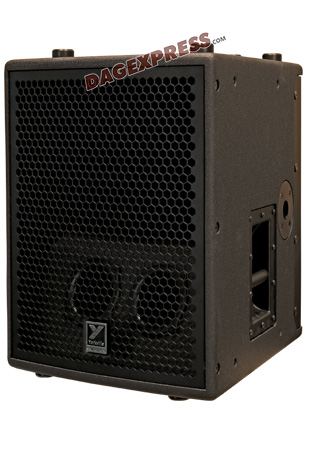

Yorkville SA102 - 1200-Watt Full Range Powered Cabinet, Speaker



SA102 - 1200-Watt Full Range Powered Cabinet, Speaker  SA102 - 1200-Watt Full Range Powered Cabinet, Speaker  SA102 - 1200-Watt Full Range Powered Cabinet, Speaker
Enlarge ↗
BrandYorkville ›
Price:$ 2539.00




DESCRIPTION
Overview
The SA102 full-range powered cabinet is a smaller, lighter and more portable addition to the Synergy Array Series. Providing a reduced footprint without sacrificing sonic integrity, the SA102 is ideal for medium to large venues, outdoor festivals and inclined seating theatres. The SA102 paired with the SA115S subwoofer creates the ultimate point source system built to power stages of all sizes, easy to lift and configure, and grow with you.

Signature to the Synergy series, the SA102 is equipped with the patented Paraline lens to create a precisely shaped wave front that matches the horn's physical coverage pattern. The SA102 uses Synergy Horn technology to maximize efficiency and directivity control by coupling the Paraline Lens with a 10-inch high output woofer.

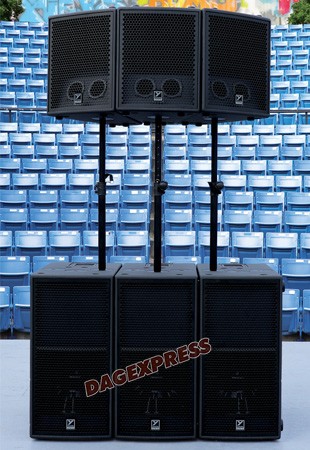

With a vertical coverage pattern of 7 Degrees Up, 38 Degrees Down, the SA102 can be turned 180 Degrees from top to bottom to accommodate larger audiences. Three top boxes arrayed horizontally together would create a vast 90 Degree coverage pattern.

The SA102 full range speaker paired with the new SA115S subwoofer creates the ultimate point source system built to start at small stages, easy to lift and configure, and grow with you.

Features
Full-range powered speaker:1200 watts (program), 2400 watts (peak)
1x10" LF Woofer, 1xHF Compression Driver
Incorporates Tom Danley's patented Paraline Lens and Synergy Horn technologies
Exceptionally high output and pristine clarity
Extremely well controlled coverage pattern
Measured MAX SPL (C-Weighted, Max Hold): 127 dB Cont, 133 dB Peak
Frequency Response (Hz +/- 3db): 60Hz-18k
Dispersion (°H x °V): 30x45 Asymmetrical (7 Up, 38 Down)

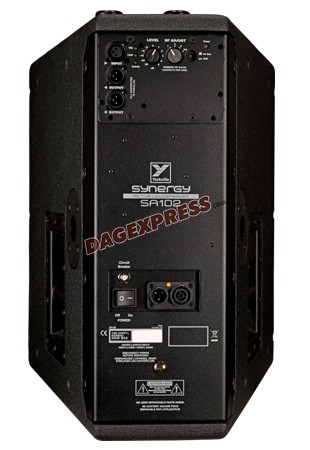

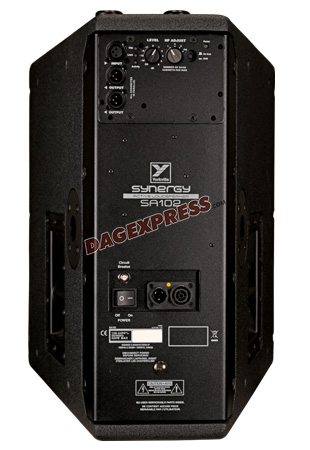

Audio Inputs: 1 XLR, 2 x XLR Loop
Removable Locking Powercon True Input and Loop Thru Output
Dimensions (DWH x backW, inches): 21.250 x 17.375 x 22.750 x 6.750
Made in Canada

Specifications
System Type Active Full-Range Powered Speaker
Active or Passive Active
Power Rating (Watts) 1200 Watts Program (2400 Watts Peak)
Biampable Biamp
Measured Max SPL (C-Weighted, Max Hold) 127 dB Cont. 133 dB Peak
Frequency Response (Hz +/- 3dB) 60Hz-18k
Dispersion (°H x °V) 30x45 Asymmetrical (7 Up, 38 Down)
Crossover Frequency (Hz) 750Hz
Cabinet Configuration Patented Synergy Horn and Paraline Lens Technology
Driver Configuration 1x10" LF Woofer, 1xHF Compression Driver
HF Driver(s) 4" Diaphragm/Voice Coil, Neo
HF Power Rating (Watts) 120 watts Program, 240 watts Peak
HF Impedance (Ohms) 8 ohm Load
HF Protection Peak and Average Limiting
LF Driver(s) 1x10" Neo Woofer with 3" Voice Coil
LF Impedance (Ohms) 2 ohm Load
LF Protection Excursion, RMS
HF Power Amplifier (Watts) 300 watts Program, 500 watts Peak
HF Amplifier Type 3-Tier Class H
LF Power Amplifier (Watts) 900 watts Program, 1600 watts Peak
LF Amplifier Type Class D
Cooling Scheme Convection
Power Cable Removable Locking Powercon True Input and Loop Thru Output
Power Switch Yes
Power Consumption 200VA
Inputs 1 XLR, 2 x XLR Loop
Input Sensitivity (Vrms Sine) Line in 1.4 at center, 0.56 at max
Level Controls Volume
EQ Controls HF Boost select, Fullrange/Sub switch
LED Indicators Power, Limit, Clip
Enclosure Materials Multiply 15mm Birch Plywood
Standard Rigging Hardware 1/4-20 Eyebolts (4 Top, 4 Bottom)
Stacking Feature Interlocking UHMW Feet (Top and Bottom)
Covering / Finish Paint
Dimensions (DWH xbackW, inches) 21.250 x 17.375 x 22.750 x 6.750
Dimensions (DWH xbackW, cm) 54 x 45 x 58 x 17
Weight (lbs/kg) 69/31.3
Specifications subject to change without notice
