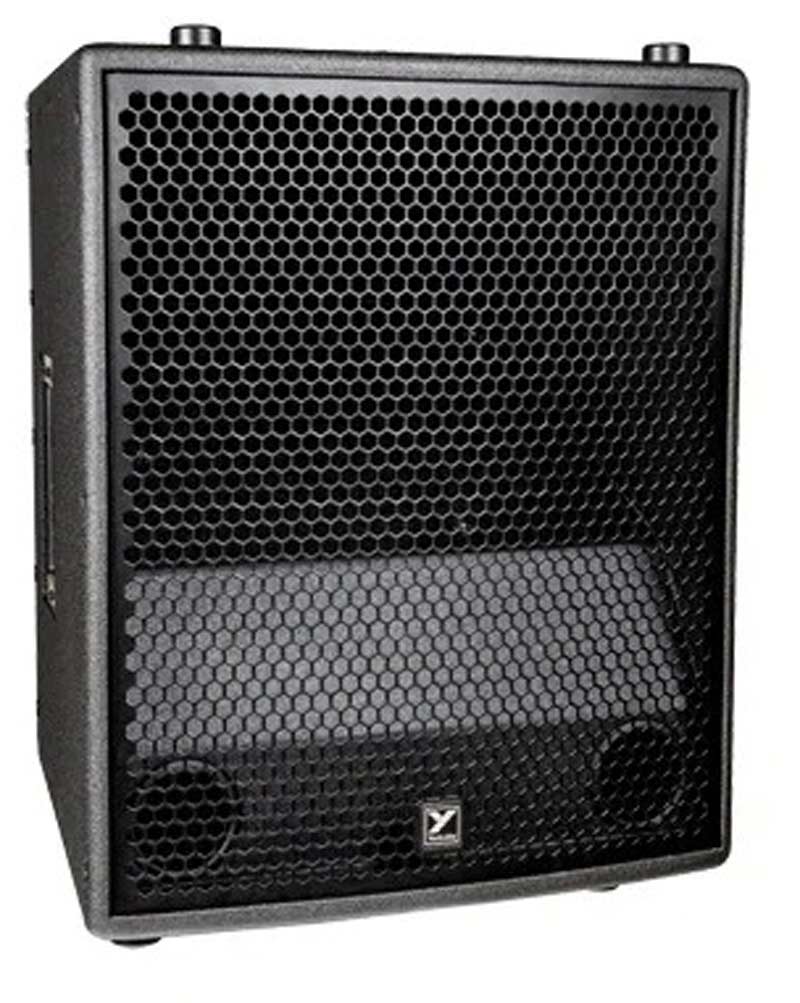

Synergy Array SA153 - 3-Way Full-Range Powered Speaker: 2600 Watts (program), 5000 Watts (peak)

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/Synergy-Array-SA153.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/Synergy-Array-SA153-1.jpg

Brand	Synergy Array ›
Price:	$ 3539.00

DESCRIPTION

Documentation ↗

3-way full-range powered speaker: 2600 watts (program), 5000 watts (peak)

1 x 15-inch LF woofer,
1 x MF/HF Co-ax Compression Driver.

Incorporates Tom Danley's patented Paraline Lens and Synergy Horn.

Exceptionally high output and pristine clarity.

Synergy Series - SA153
Active Loudspeaker
The Synergy Array Series is a truly revolutionary active point source system with unmatched flexibility, power, and directivity control. The Synergy System offers users unrivaled simplicity without sacrificing sonic performance.

The Synergy Array Series consists of the SA153 full-range powered cabinet, along with the SA315S powered subwoofer. This dynamic duo makes the ultimate point source speaker system scale-able for club gigs of all sizes, outdoor festivals, inclined seating venues, and arenas. Never before has a large point source system with this much output and sound quality been this easy to set up and use.

Overview
OUR MOST POWERFUL AND FLEXIBLE POINT SOURCE SYSTEM
The Synergy Array Series is a truly revolutionary active point source system with unmatched flexibility, power, and directivity control. The Synergy System offers users unrivaled simplicity without sacrificing sonic performance.

The Synergy Array Series consists of the SA153 full-range powered cabinet, along with the SA315S powered subwoofer. This dynamic duo makes the ultimate point source speaker system scale-able for club gigs of all sizes, outdoor festivals, inclined seating venues, and arenas. Never before has a large point source system with this much output and sound quality been this easy to set up and use.

Paraline Lens Technology
The unique geometry of the patented Paraline Lens is capable of producing a precisely shaped wave front that matches the horn's physical coverage pattern. It does this while providing a continuous horn throat from cabinet to cabinet on the horizontal plane. This virtually eliminates the comb filtering usually associated with traditionally arrayed cabinets. The Paraline Lens is fed by a high output mid-high driver which results in seamless coupling and a matching coverage pattern.

Synergy Horn Technology
The Synergy Horn configuration of the Paraline Lens coupled with a single 15-inch high output woofer seamlessly couples the output from both drivers while performing as a true point source. The horn utilizes the entire front area of the cabinet maximizing efficiency and directivity control.

NEVER BEFORE HAS A POWERED POINT SOURCE ARRAY BEEN SO FLEXIBLE AND POWERFUL, AND NEVER BEFORE HAS A TECHNOLOGICALLY ADVANCED SYSTEM BEEN SO EASY TO USE.

Specifications
Active or Passive Active
Power Rating (Watts) 2600 Watts Program (5000 Watts Peak)
Biampable Triamp
Measured Max SPL (C-Weighted, Max Hold) 131 dB Cont. 137 dB Peak
Frequency Response (Hz +/- 3dB) 55Hz-18k
Dispersion (°H x °V) 22.5x45 Asymetrical 10 Up, 35 Down
Crossover Frequency (Hz) 400Hz, 7kHz
Cabinet Configuration Patented Synergy Horn and Paraline Lens Technology
Driver Configuration 1x15" LF woofer, 1x MF/HF Co-ax Compression
HF Driver(s) 1.75" Diaphragm/Voice Coil Annular Co-axial
HF Power Rating (Watts) 300 Watts
HF Impedance (Ohms) 16 ohm Load
HF Protection Peak and Average Limiting
MF Driver(s) 3.5" Diaphragm/Voice Coil Annular Co-axial
MF Power Rating (Watts) 300 Watts
MF Impedance (Ohms) 16 ohm Load
MF Protection Peak and Average Limiting
LF Driver(s) 1x15" Neo Woofer with 3.5" Voice Coil
LF Power Rating(Watts) 2000 watts Program (4000 watts Peak)
LF Impedance (Ohms) 8 ohm Load
LF Protection Excursion, RMS
HF Power Amplifier (Watts) 300W
HF Amplifier Type 3-Tier Class H
MF Power Amplifier (Watts) 300W
MF Amplifier Type 3-Tier Cllass H
LF Power Amplifier (Watts) 2000W
LF Amplifier Type Class D
Cooling Scheme Convection

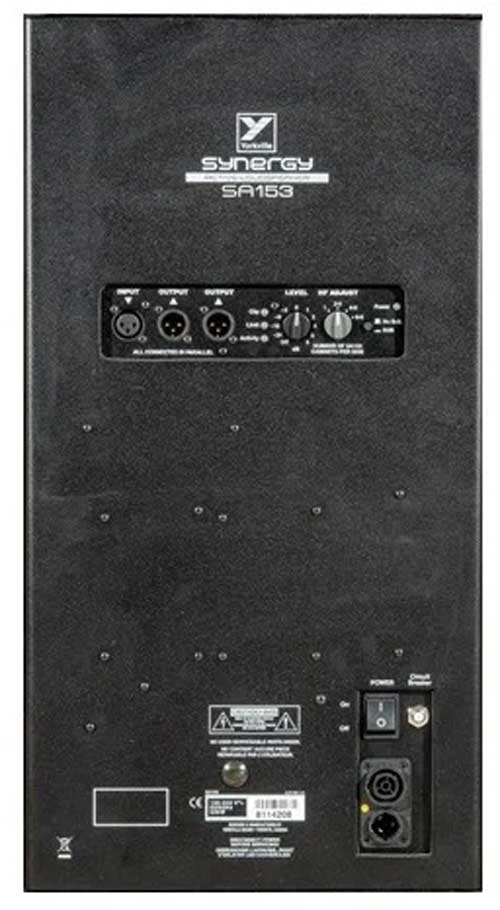

Power Cable Removable Locking Powercon True Input and Loop Thru Output
Power Switch Yes
Power Consumption (typ/max) 220 VA / 400 VA
Inputs 1 XLR, 2 x XLR Loop
Input Sensitivity (Vrms Sine) Line in 1.4 at center, 0.56 at max
Level Controls Volume
EQ Controls HF/MF Boost select,
Fullrange/Sub switch
LED Indicators Power, Limit, Clip
Enclosure Materials Multiply 15mm Birch Plywood
Standard Rigging Hardware RAIL and LOCKBAR Rigging System (Top and Bottom)
Stacking Feature Interlocking UHMW Feet (Top and Bottom)
Covering / Finish Paint
Dimensions (DWH xbackW, inches) 24 x 21 x 26.5 x 12.25
Dimensions (DWH xbackW, cm) 60.9 x 53.3 x 67.3 x 31.1
Weight (lbs/kg) 115/52.1
Optional Synergy Series Accessories
Pick Up Bar (SAPICKUPBAR1) Single column cabinet hanging hardware (2xSA153 Plus 1xSA315S MAX)
Flying Bumper (SABUMPER1) 4 wide flying bumper (8xSA153 Plus 4xSA315S MAX)
SA153 Cabinet Cover (SA153COVER) Will cover 2 Cabinets (stacked)
SA315S Cabinet Cover (SA315SCOVER) Will cover 1 Cabinet
Cabinet Dolly (SADOLLY1) Holds 2 x SA153 stacked or 1 x SA315S
Specifications subject to change without notice

Features
3-way full-range powered speaker: 2600 watts (program), 5000 watts (peak)
1 x 15-inch LF woofer, 1 x MF/HF Co-ax Compression Driver
Incorporates Tom Danley's patented Paraline Lens and Synergy Horn technologies
Exceptionally high output and pristine clarity
Simple and secure rigging hardware
Extremely well controlled coverage pattern
Measured MAX SPL (C-Weighted, Max Hold): 131dB continuous, 137dB Peak
Frequency Response (Hz +/- 3db): 55Hz-18K
Dispersion (°H x °V): 22.5° x 45° (Asymmetrical 10° Up, 35° Down)
Audio Inputs: 1 XLR, 2 x XLR Loops
AC Connections: 1 In, 1 Loop (Locking Powercon)
Dimensions (DWH x backW, inches): 24 x 21 x 26.5 x 12.25
Made in Canada
