Yorkville SAPICKUPBAR1 - Pick-up Bar for Single Cabinet Hang

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/Synergy-Array-SAPICKUPBAR1.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/Yorkville-SAPICKUPBAR1.jpg

Brand	Yorkville ›
Price:	$ 99.00

DESCRIPTION

Documentation ↗

Overview

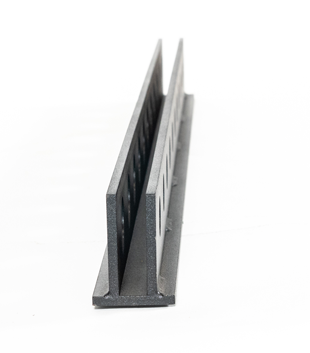

The pick up bar is simply slid into the integral flying rail on the top or bottom of the SA cabinets and secured in place with the provided hardware. There are 11 pick up points along the length of the bar allowing for easy tilting of the array.

Specifications
Max Load Capacity 500lbs/226kg at 7:1 Safety Ratio
Max Cabinet Capacity One Single Column Hang (2 x SA153 + 1 x SA315S Max. Total Cabinet hang = 3)
Material / Construction 7 Gauge Welded Steel Plate
Finish Black Powder Coat
Required Shackle Size (Not Included) 5/8" (Sample Crosby#1018473)
Overall Dimension DxWxH 26.750" x 1.562" x 2.187"
Weight 7lbs
Specifications subject to change without notice
