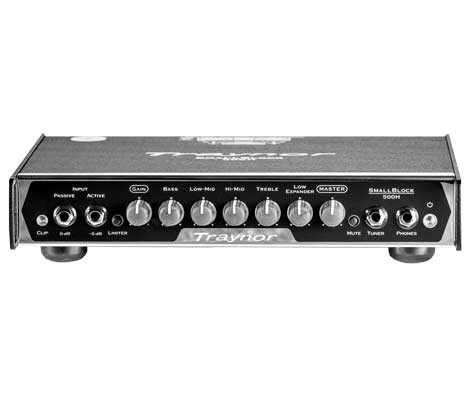

Traynor SB500H - The Small Block 500 Watt Ultra compact Bass Head

SB500H - The Small Block 500 Watt Ultra compact Bass Head
SB500H - The Small Block 500 Watt Ultra compact Bass Head
Enlarge ↗
BrandTraynor ›
Price:$ 539.00

Delivering a full 500 Watts at 4 ohms, the ultra compact and lightweight Traynor SB500H is the ideal professional bass head for the musician on the move. Loaded with essential features including Active and Passive level instrument inputs XLR DI output, a versatile four band EQ with an additional low frequency expander, the SB500H allows virtually any tone to be dialed in quickly and easily.

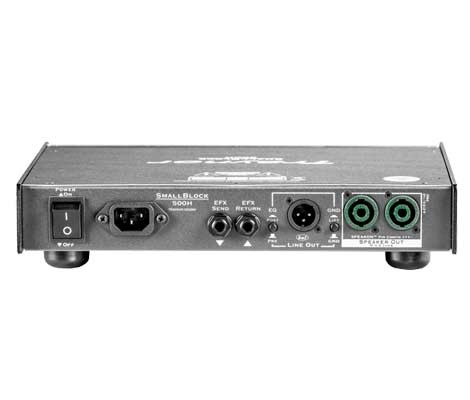

The all-metal chassis with front mounted handles to protect the knobs and jacks ensures the SB500H is fully road ready. A rear mounted in-line effects loop, selectable Pre/Post EQ XLR DI output, front mounted tuner out (with mute) and heavy duty Speakon speaker outs are included.

The SB500H is made in Canada and like all Traynor products, covered by an unconditional two-year transferable warranty.

500-watt Ultra Compact and Lightweight Bass Head
Versatile 4-band EQ with Additional Low Frequency Expander
All-Metal Chassis
Active and Passive Inputs
Selectable Pre / Post EQ XLR DI Output
Rear Mounted In-Line Effects Loop
Speakon Outputs
Made in Canada

Power @ min. impedance (Watts) 500 watts
Minimum Impedance (Ohms) 4
Burst Power - 2 cycle 600 watts
Inputs Passive 0 dB, Active -6 dB
Controls Gain, Bass, Low Mid, High Mid, Treble, Low Expander, Master Volume
Inline Effects Loop Yes - 1/4-inch Send and Return- Rear
Line Out (type / configuration) Balanced Pre/Post EQ Line Out W/ Ground Lift Switch
Line Out Sensitivity (Vrms) 1 Vrms
LED Indicators Blue - Power / Red - Protect/Mute
Protection Clip, Thermal, Overcurrent
External speaker output / location Speakon (x2 - Rear)
Other Features Headphone Out /Mute / Tuner Out
Dimensions (DWH, inches) 9.5 x 12 x 2.5
Dimensions (DWH, cm) 22 x 30 x 6.5
Weight (lbs / kg) 4.0 / 1.8
