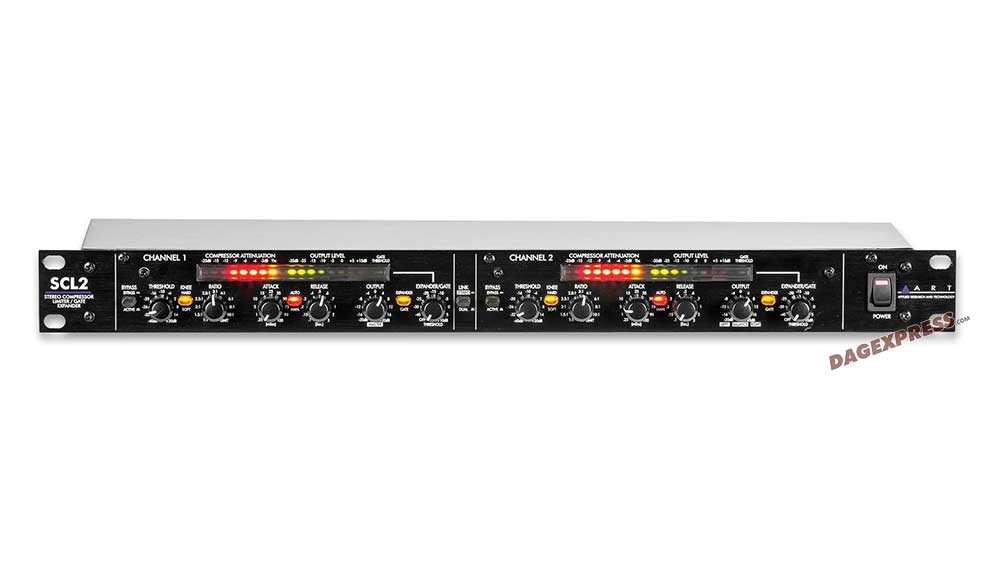

Art SCL2 - Stereo Compressor Limiter with gate and expander

Enlarge ↗
BrandArt ›
Price:$ 189.99

The SCL2 is a highly sophisticated and flexible dynamics processor designed for easy operation and great tone. The unit can be adjusted to provide anything from smooth subtle compression to hard limiting. Noise reduction is provided by a fast solid gate or a subtle expander.

The Attack and Release functions allow the user to set the general operating range and then automatically adapt to the audio being processed. A full auto mode is also available. The ultra-precise LED meters while two LED meters clearly display the gain reduction for each channel.

Input/Output Connections ¼-inch TRS balanced
Side Chain Connections ¼-inch TRS (Tip = Send, Ring = Receive)
Input Impedance 10k Ω
Output Impedance 200 Ω (bal), 100 Ω (unbal)
Maximum Input Level +20 dBu Balanced
Maximum Output Level +20 dBu Balanced
Frequency Response 10Hz to 40kHz, +/- .5dB
Dynamic Range 120 dB
Attack Time .25mSec to 100mSec Adjustable
Release Time 100mSec to 3 Sec Adjustable
Total Harmonic Distortion <0.06% (typical)
Power Requirements 120 V 60 Hz/50H, 10W max.
Dimensions 1.75″ H x 19.0″ W x 6″ D (4.5 x 48 x 15.2 cm)
Weight 4.2 lbs (1.9 kg)
