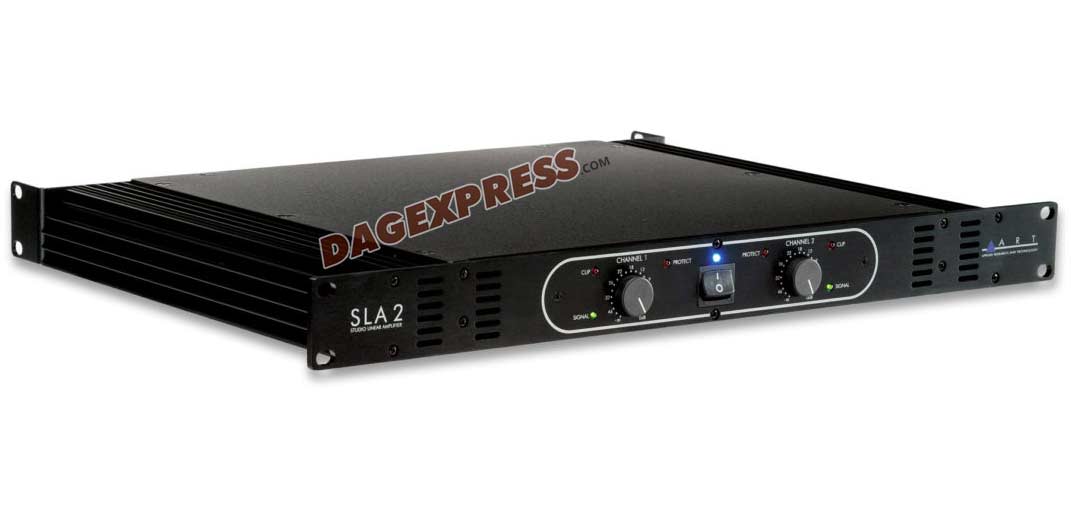

Art SLA2 - 200W Studio Power Amplifier - 2x200 Watts @ 8ohms / 2x280 Watts@4ohms - Fan Cooled - 1U


Brand:Art ›
 ART Studio Power Amplifiers ›
Sku:SLA2
Price:$ 347.99



The SLA-2 is studio linear power amplifier capable of delivering 280watts per channel (@4 ohms) with an incredible 10Hz to 40kHz frequency response. Compact single rackspace low noise linear design, the SLA-2 uses a solid steel chassis and toroidal transformer for added long term reliability. Stable down to 2 ohms, the SLA-2 can be bridged mono to deliver a full 560 watts into a single 8 ohm load.

Ideal for any studio or installation application, the SLA-2 uses oversized convection cooling heatsinks and temperature controlled variable speed SmartFan technology to ensure quiet operation in any environment.

SLA-2 Applications:
Designed to deliver in the most demanding audio applications.
Housed in an aluminum and steel single space 19-inch rackmount chassis
Proven toroidal transformer design for unmatched long-term reliability.
The SLA-2 features SmartFan, an advanced, thermal dependent fan assisted convection cooled system.
The SmartFan system is dependent upon the internal ambient temperature of the unit, and runs at high or low levels depending on the amplifier’s cooling needs
XLR and 1/4-inch TRS balanced inputs as well as multi-way output binding posts are ensure the SLA-2 can be quickly and easily tied in to any system without modification.
Simple to install tamper proof cover is included

Key Features
Toroidal Transformer
200 Watts per Channel @ 8 ohms
280 Watts per Channel @4 ohms
560 Watts when Bridged Mono @ 8 ohms
10 Hz – 40 kHz Frequency Response
XLR, Euroblock & 1/4-inch inputs
Tamper-Proof Faceplate SmartFan Silent Cooling System
Low Profile 1U Rack Mountable All Steel Chassis
Extremely Low noise, Discrete Linear Design

Specifications
Bridged Output Power, 8 Ohms 560 W MONO
CMRR > 60dB (typical @ 1kHz)
Frequency Response 10Hz to 40kHz, +/- .5dB
Total Harmonic Distortion > 0.05% (typical)
Hum and Noise > 100dB below clipping
Input Impedance 44k Ohms (bal), 22k Ohms (unbal)
Input Sensitivity 1V for full power output
Input/Output Connections IN: XLR, Euroblock (bal), 1/4″ TRS (bal/unbal)
Stereo Output Power, 4 ohms 280 W RMS per channel
Stereo Output Power, 8 ohms 200 W RMS per channel
Transformer Type Toroidal
Dimensions 1.75″h x 19″w x 13.5″d
Weight 19.8 lbs (9 kg)
Power Requirements USA 120vac 60 Hz 1000 W (max) 1000 W (max)
