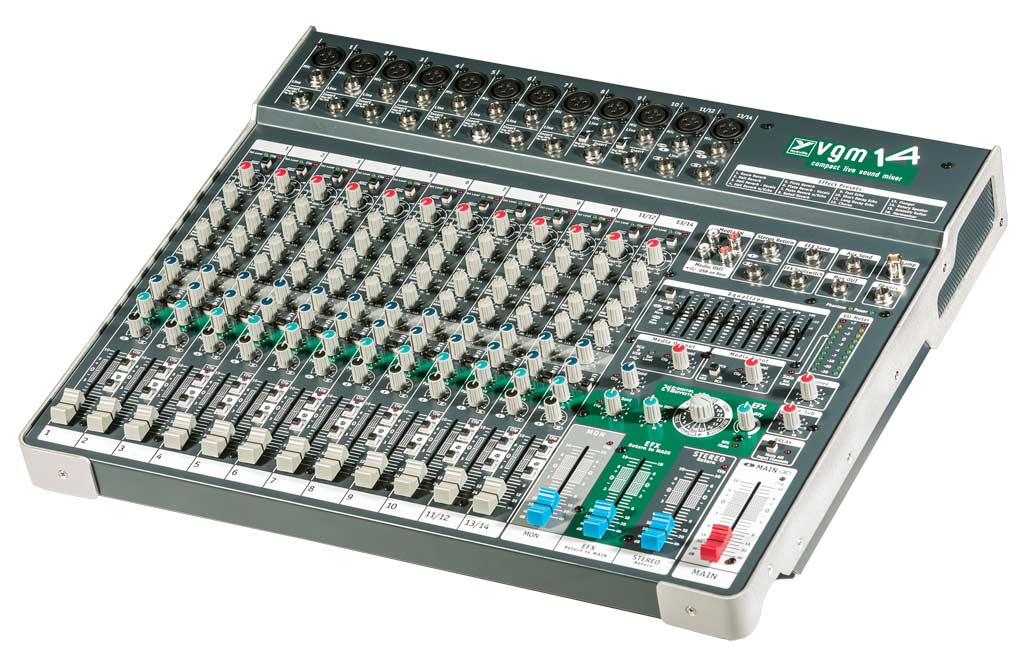

Yorkville VGM14 - 14-Channel Passive Mixer with Digital Effects and Graphic EQ


Enlarge ↗
×
BrandYorkville ›
Price:$ 689.00



Passive Series - VGM14
Compact Mixer
The Yorkville VGM14 delivers the essential features needed in a professional ultra-compact live sound mixer. All metal chassis design, effective fully featured input channel design, high quality 60mm faders throughout, 24-bit digital effects, and break switch make the VGM14 the perfect mixer for live music applications and for small installs. An IEC AC input (no proprietary adaptor or wall-wart required) for ultra reliable mobile operation. USB Audio I/O, additional media inputs, two High Impedance instrument level inputs for acoustic guitars or bass offer maximum connectivity for various audio sources.

Features
Ten Mono Input Channels with XLR & ¼-inch TRS inputs
Channel 9 & 10 Mono Inputs have a Hi-Z input switch
Two Additional stereo line input channels (11/12 and 13/14)
Additional XLR mono input per stereo channel for maximum 12 Mic inputs
Input gain level control with Non-defeatable soft multi-slope compressor on every input
3-band EQ with Sweep Mid, High Pass Filter, Monitor, Aux and Effect Send, Clip LED, Mute Switch and Pan control per Channel. 4-band EQ's on Stereo Channels
60mm Faders Throughout
Global 48 volt Phantom Power
Stereo 9-band graphic EQ Assignable Main/Monitor
Stereo RCA Media Outputs with Level Control
BREAK Switch (mutes all input channels)
Stereo RCA Media Input Jacks with Rotary Level Control (returns pre equalizer, post BREAK switch).
USB Audio I/O
Zone/Sub Output with Level Control
Main stereo TRS phone and XLR outputs
Sixteen 24-bit digital audio effects
Effects TRS output jack
Effects defeat footswitch jack
Effects return to Main and Monitor
Stereo Return TRS jacks with fader
Headphone Level Control
Dual 10-segment LED Output Meter
IEC removable line cord receptacle (No Adaptors)
Universal Power Supply from 90VAC to 264VAC at either 50Hz or 60Hz.

Specifications
Number of Channels 14
Channel Inserts 10
Mono Channel EQ 3-Band w/ mid Sweep
Stereo Channel EQ 4-Band
Balance Controls 11/12, 13/14
Pan Controls 1 to 10
Channel Overload Protection Yes
Inputs - XLR (bal) 12
Inputs - 1/4" 14
Inputs - RCA (unbal) 1 Stereo Pair
Solo Switches Yes - All Channels
Mute Switches Yes - All Channels
Hi Pass Switches Yes - All Channels
Activity / Solo LED Yes - All Channels
Clip / Mute LED Yes - All Channels
Phantom Power 48 volt + LED indicator
Internal Effects 24 Bit Stereo / 16 Effects w/ Modify Control
Auxiliary Sends Yes
Effects Send Yes
Effects Return Yes
Effects Return to Main Yes
Effects Return to Monitor Yes
Reverb / Effects Footswitch Yes
Record Outputs Yes (RCA and USB)
Max Gain to Line Out -Mic Input (dB) 80dB
Max Gain to Line Out -Line Input (dB) 65dB
Mixer - Signal to Noise Ratio (dB) Greater than 100dB
Mixer - Freq Resp (Tone and EQ Flat,±2dB) 20Hz - 20KHz
Mixer- Input Ref Noise to line out @150 Ohms(dBv) -118dBv (@ 150 ohms)
Mixer THD (Main out w/ -10dB input) Less Than 0.05%
Typical crosstalk -1 kHz (dB- Less Than -60dB
CMRR @ 60Hz (min/typ) 55dB/65dB
Power Consumption (typ/max) 26VA (typical)
Cooling Fan
Transformer Type SMPS
Chassis Construction Steel
Console Lamp Connector 12V DC (BNC) Yes - 12V DC (BNC)
Other Features Zone Output, Hi-Z Inputs (Ch9&10) USB I/O
Dimensions (DWH, inches) 16 x 19 x 2.8
Dimensions (DWH, cm) 40.6 x 48.3 x 7.1
Weight (lbs/kg) 13/5.9
Specifications subject to change without notice
