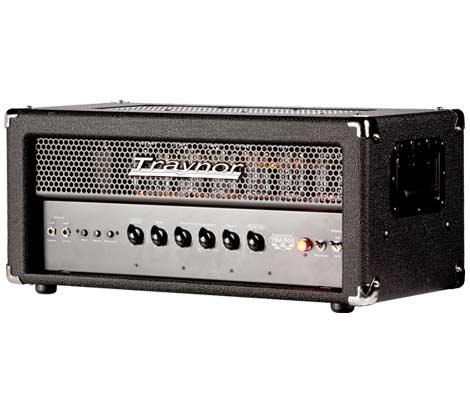

Traynor YBA300 - 300 Watt All tube Bass Head - 12 x EL34 Power Tubes
Tube Bass Heads ›
The all-tube Traynor YBA300 300-watt bass head has been designed from the ground up to be the ultimate high-power head for the working musician. Built for unmatched reliability in real world heavy-use touring environments, the designers of the YBA300 understand how important it is to make sure your amp is ready for action every night.
Highly effective and straightforward tube bias adjust with clear and concise LED display ensure any player can easily adjust pairs of the YBA300's power tubes without fear. LED indicators on the rear of the amp show proper tube function and status. In rare cases where a tube may fail, the YBA300 will lock out the problem tube and its partner, allowing the amp to finish the show on the remaining active tubes. LED display clearly shows which tube needs service.
The stock YBA300 ships with twelve hand-selected and tested 6L6 power tubes, delivering a truly classic hi-fi smooth tube tone. For players looking for a more aggressive bass sound, the stock 6L6 tubes can be easily changed to any high quality EL34 tube set and be rebiased in the field, making the YBA300 essentially two amps in one versatile chassis.
Simple controls make it easy to dial in virtually any bass tone.
The Traynor YBA300 is made in Canada using solid plywood cabinet construction, heavy gauge steel chassis, high quality pots and jacks and is covered by Yorkville Sound's two-year unlimited warranty*.
*Two-Year Unlimited Warranty in USA and Canada Only, Other Territories May Vary.
300 Watt All-Tube Bass Amp
Delivers Maximum Power at 2 or 4 ohms
Comes Stock with 3 x 12AX7, 1 x 12AU7 and 12 x 6L6 Tubes
6L6 Power Tubes Can Be Swapped for EL34 Tubes for Different Amp Character

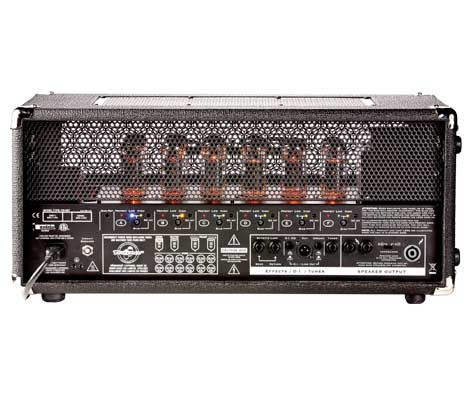

Player Friendly Individual bias adjust with indicator LEDs for Output Tubes
Tube Lockout for each Pair of Output Tubes removes damaged tubes from signal path allowing amp to continue operation in emergencies)
Simple and Effective Gain, Bass, Sweep-Mid, Treble and Master Controls
Deep, Bright, Resonance Tone Shaping Controls
Pre/Post EQ DI Output, Effects loop, Tuner Output
High and Low Level Inputs for Active or Passive Basses
1/4-inch and Speakon Output Connectors
Made In Canada
Power @ min. impedance (Watts) 300 @ 2/4 ohms switchable (250W into 8 ohms)
Minimum Impedance (Ohms) 2
Burst Power - 2 cycle 400 Watts
Frequency Response (Hz +/- 3dB) 30 - 16,000
Hum and Noise (dB) -90db
Channel 1 - Inputs 2 x 1/4inch
Channel 1 - Controls Gain
Master Volume Control Yes
Main Tone Controls Treble, Mid, Frequency, Bass
Input Sensitivity (mV) 20
Master Outputs Pre-amp out (Pre Master)
Line Out (type / configuration) XLR Balanced (Pre/Post, Grnd Lift)
Line Out Sensitivity (Vrms) 200
Effects Loop / Location Pre-amp out, Power Amp in, Loop Thru
Effects Return Sensitivity (Vrms) 1
LED Indicators Power/Standby
External speaker output / location 2 x 1/4inch, 1 Speakon (Rear)
Other Features Bright, Deep & Resonance Switches
Impedance Selector (2/4 ohms)
Tubes: 3x12AX7, 1x12AU7, 12x6L6
Tuner output 1/4inch
Dimensions (DWH, inches) 11.5 x 24 x 10
Dimensions (DWH, cm) 29 x 61 x 25.4
Weight (lbs / kg) 51 / 23
