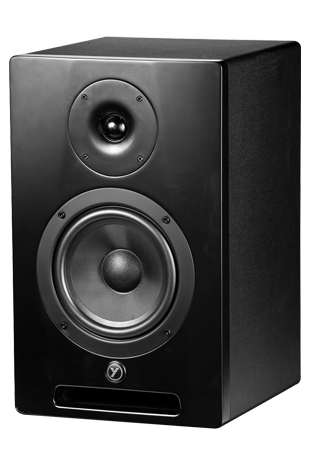

Yorkville YSM6 - Powered studio reference monitor - 6 inch BLACK woofer, 1 inch dome tweeter - 45w+20w biamp - power & clip LEDs


Enlarge ↗
×
BrandYorkville ›
Price:$ 239.00



Features
Reproduces source material with near pinpoint accuracy and detail
Contoured MDF baffle engineered to minimize front face reflections
Front facing port design eliminates bass coupling with back walls and corners in imperfect listening environments
Improved phase response provides a wider 'sweet spot' in the listening position
Strategic bracing and ample internal dampening eliminates unwanted low frequency rumble
Biamplified Power Module (50 watts woofer / 18 watts tweeter)
Custom designed soft dome tweeter
High quality low frequency 6.5-inch woofer
Rock-solid 3/4-inch MDF cabinet construction
XLR and ΒΌ-inch TRS balanced inputs
4-position high and low frequency trim controls to optimize response for recording space
Front mounted power switch for added convenience

Overview
Compatible with virtually any source, Yorkville YSM6 has a widely variable input trim control making it compatible with any source from direct connection to a soundcard, or connection to a professional console control room output. Four position high and low frequency trim controls (at -2, -1, 0 and +1.5dB) allow user adjustable EQ contour to compensate for speaker placement in less than perfect listening spaces.

Specifications
System Type 2-Way
Active or Passive Active
Power Rating (Watts) 68
Biampable Self Powered
Biamp Operation Only Yes
Max SPL (dB) 105
Frequency Response (Hz +/- 3db) 50-20,000
Crossover Frequency (Hz) 2600
HF Driver(s) 1 inch Neodymium soft-dome tweeter
HF Power Rating (Watts) 18
LF Driver(s) 6.5 inch Composite woofer
LF Power Rating (Watts) 50
LF Protection Thermal / Current Limit
HF Distortion 0.0008
LF Distortion 0.0002
Inputs 1 Combi-Jack
Mixer Controls HF Trim (-2,-1, 0,+1dB) 4-position preset
LF Trim (-2,-1, 0,+1.5dB) 4-position preset
Level Controls Input Gain
Enclosure Materials MDF
Baffle Material MDF
Port(s) Yes - Front
Dimensions (DWH xbackW, inches) 10 x 9.5 x 15
Dimensions (DWH xbackW, cm) 25 x 24 x 38
Weight (lbs/kg) 21 / 9.5
Specifications subject to change without notice
