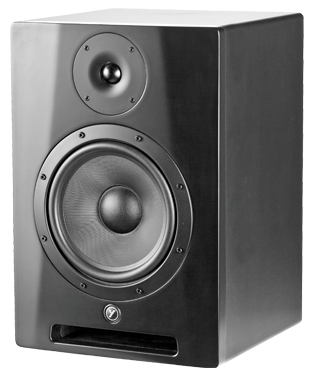

Yorkville YSM8 - Powered studio reference monitor - 8 inch BLACK woofer, 1 inch dome tweeter - 85w+30w biamp - power & clip LED's



YSM8 - Powered studio reference monitor - 8 inch BLACK woofer, 1 inch dome tweeter - 85w+30w biamp - power & clip LEDs  YSM8 - Powered studio reference monitor - 8 inch BLACK woofer, 1 inch dome tweeter - 85w+30w biamp - power & clip LEDs
Enlarge ↗
BrandYorkville ›
Price:$ 269.00



Features
Reproduces source material with near pinpoint accuracy and detail
Contoured MDF baffle engineered to minimize front face reflections
Front facing port design eliminates bass coupling with back walls and corners in imperfect listening environments
Improved phase response provides a wider 'sweet spot' in the listening position
Strategic bracing and ample internal dampening eliminates unwanted low frequency rumble
Biamplified Power Module (75 watts woofer / 20 watts tweeter)
Custom designed soft dome tweeter
High quality low frequency 8-inch woofer
Rock-solid 3/4-inch MDF cabinet construction
XLR and ¼-inch TRS balanced inputs
4-position high and low frequency trim controls to optimize response for recording space
Front mounted power switch for added convenience

Overview
Compatible with virtually any source, the Yorkville YSM8 has a widely variable input trim control for the balanced XLR / ¼-inch combi-jack input. Four position high and low frequency trim controls (at -2, -1, 0 and +1.5dB) allow user adjustable EQ contour to compensate for speaker placement in less than perfect listening spaces.

The YSM8 is designed for professional studio applications and for punishing listening environments where the widest possible sweet spot and higher volumes are required.

Specifications
System Type 2-Way Active Studio Monitor
Active or Passive Active
Power Rating (Watts) 95 Watts
Biamp Operation Only Yes (internal)
Max SPL (dB) 105dB
Frequency Response (Hz +/- 3db) 45Hz-20kHz
Crossover Frequency (Hz) 2.4 kHz
Driver Configuration 8-inch Composite Cone
HF Driver(s) Neo Soft Dome Tweeter
HF Power Rating (Watts) 20 Watts
LF Power Rating (Watts) 75 Watts
LF Protection Thermal / Current Limit
HF Distortion 0.08% THD
LF Distortion 0.02% THD

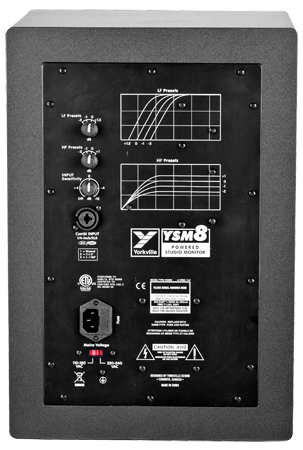

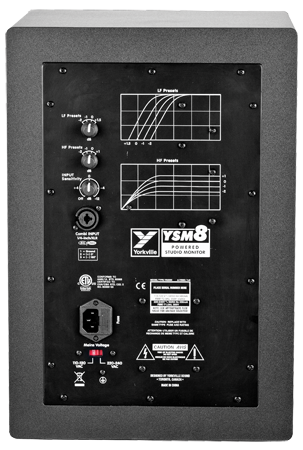

Inputs Combi-Jack
Other Controls / Features Input Gain, 4-position High Frequency Contour (-2,-1, 0,+1dB) and 4-position Low Frequency Trim (-2,-1, 0,+1.5dB).
Enclosure Materials MDF
Baffle Material MDF
Port(s) Yes - Front
Dimensions (DWH xbackW, inches) 10.8x 10.5x16.5
Dimensions (DWH xbackW, cm) 27 x 25 x 42
Weight (lbs/kg) 28 / 12.7
Specifications subject to change without notice
