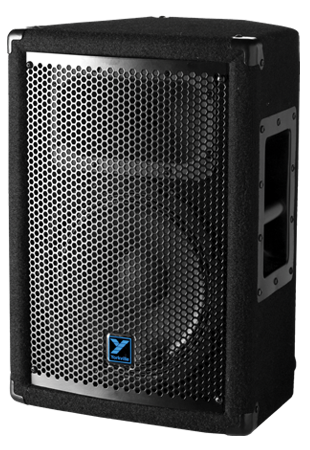

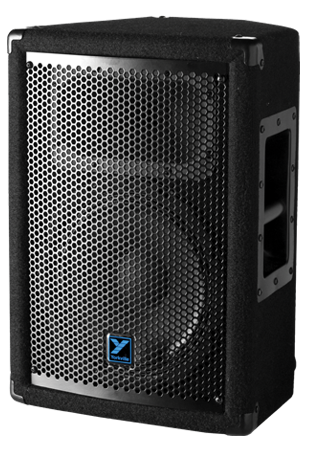

Yorkville YX10P - 200 watts - powered - 1/10 inch & 1 inch HF driver on 100°x30° horn - FOH/Monitor combo built in mixer with microphone and 1/8" inputs, plywood/carpet enclosure

YX10P - 200 watts - powered - 1/10 inch & 1 inch HF driver on 100°x30° horn - FOH/Monitor combo built in mixer with microphone and 1/8 inputs, plywood/carpet enclosure

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/Yorkville-YX10P.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/Yorkville-YX10P-1.jpg

Brand	Yorkville ›
Price:	$ 389.00

DESCRIPTION

Documentation ↗

Features
200 Watt Integrated Amplifier
Bi-amplified Power Module
High Powered 10-inch Woofer
Max SPL 119dB (Continuous)
90 x 40 Custom ABS Waveguide Horn
1.4-inch Aluminum Diaphragm Horn Driver (1-inch Throat)
¼-inch, XLR and 1/8-inch TRS Inputs
Solid Plywood Cabinet Construction
All Metal Grille, Integrated bar Handles & Stand Mount

Overview
Versatile input section allows direct connect via XLR, ¼-inch and 1/8th-inch TRS to microphones, instruments and iPods. Modified trapezoidal shape allows the YX10P to be used as a powered low profile wedge monitor as well as a front-of-house cabinet making an extremely versatile PA solution for rental houses.

The YX10P can be easily combined with the YX10SP powered subwoofer for larger PA applications where space is at a premium; yet additional bottom end may be required.

Specifications
System Type Active Loudspeaker
Active or Passive Active
Power Rating (Watts) 200 Watts
Max SPL (dB) 119 dB
Frequency Response (Hz +/- 3dB) 70Hz - 20kHz
Crossover Frequency (Hz) 3.5kHz
Driver Configuration 10-inch / 1-inch
HF Driver(s) 1.4-inch Aluminum Diaphragm / 1-inch exit
HF Power Rating (Watts) 20 Watts
HF Dispersion (°H x °V) 90 (h) x 40 (v)
HF Protection Peak Limiter
LF Driver(s) 10-inch Ceramic Magnet
LF Power Rating(Watts) 150 Watts
LF Protection Peak Limiter
Total Power (Watts) 170 Watts
Power Switch Yes - back
Power Consumption (typ/max) 120 / 200VA
Inputs XLR / 1/4-inch TRS / 1/8th-inch (3.5mm) TRS

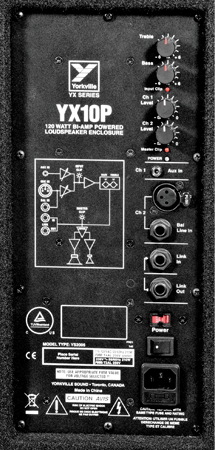

Mixer Controls Independent Gain Controls (Inputs 1 and 2), Global Bass/ Treble Control, Link Input and Output
Level Controls Yes
EQ Controls Yes - Bass / Treble Controls
Bar Handles 1
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials 15 mm (5/8-inch) plywood
Baffle Material 15 mm (5/8-inch) plywood
Grille Custom Punched Black Perforated Metal
Covering / Finish Black Ozite
Dimensions (DWH xbackW, inches) 12 x 13.5 x 19 x 5.75
Dimensions (DWH xbackW, cm) 30.5 x 34.3 x 48.3 x 14.6
Weight (lbs/kg) 28 / 12.7
Specifications subject to change without notice
