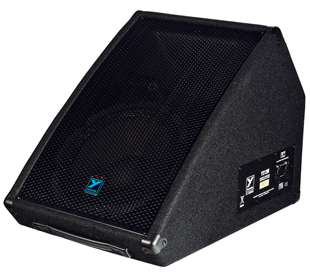

Yorkville YX12MC - 200 watts - 8 ohms - 1/12" & 1 inch HF driver on 90°x30° horn - Dedicated Monitor Wedge 2x 1/4 inch & 2x Speakon4 side mounted inputs, plywood/carpet enclosure

YX12MC - 200 watts - 8 ohms - 1/12 & 1 inch HF driver on 90°x30° horn - Dedicated Monitor Wedge 2x 1/4 inch & 2x Speakon4 side mounted inputs, plywood/carpet enclosure

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/Yorkville-YX12MC.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/Yorkville-YX12MC-1.jpg

Brand	Yorkville ›
Price:	$ 379.00

DESCRIPTION

Documentation ↗

Features
200 Watt Stage Monitor
12-inch Woofer
1-inch Compression Driver (1.4-inch Voicecoil)
Dedicated Wedge Monitor shape
Low Profile Cabinet Design
90° x 30° Injection Molded ABS Waveguide Horn
Innovative Dual Bulb CTL™ High Frequency Driver Protection

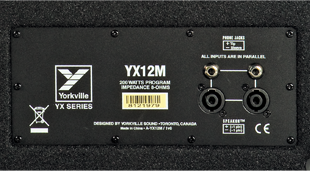

2 Speakon™ and 2 1/4-inch Paralleled Inputs
Solid 5/8-inch (15mm) Plywood Construction
Made in Canada

Overview
The YX12M uses a single 12-inch driver and an injection molded 90° x 30° ABS Waveguide horn with 1-inch throat and 1.4-inch neodymium compression driver. Yorkville's tried and true dual-bulb CTL™ protection system protects the horn driver's aluminum diaphragm ensuring unmatched reliability in the field. The YX12 is built road-ready with easy-to-clean, durable black carpet covering, solid internal plywood bracing and reinforced internal component mounts.

Designed with working musicians in mind, the YX12M uses a rugged 5/8-inch plywood cabinet construction, metal input plate, and a custom punched, perforated metal grille to protect the speaker components.

Specifications
System Type 2-Way
Active or Passive Passive
Power Rating (Watts) 200
Biampable No
Max SPL (dB) 122
Driver Configuration 12 inch / 1.4 inch
HF Driver(s) 1.4 inch Aluminum (1 inch Throat)
HF Horn Injection Molded ABS
HF Dispersion (°H x °V) 90 x 30
HF Protection CTL™
LF Driver(s) 12 inch Ceramic
LF Power Rating(Watts) 200
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Corners Metal
Feet Plastic Glides
Strap Handles 1
Enclosure Materials 15mm (5/8inch) Plywood
Grille Custom Punched Black Perforated Metal
Covering / Finish Black Ozite
Dimensions (DWH xbackW, inches) 24 x 19.5 x 17.75 x 16
Dimensions (DWH xbackW, cm) 61 x 49.5 x 45.1 x 40.6
Weight (lbs/kg) 33 / 15
Specifications subject to change without notice
