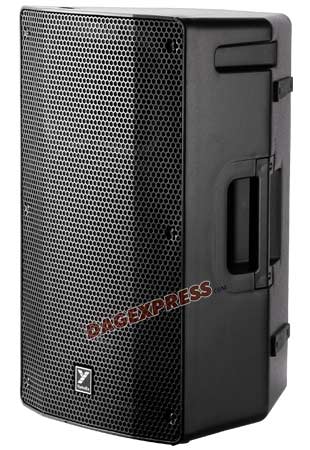

Yorkville YXL10P - 1000 Watts, Active Loudspeaker Cabinet with 10-inch Woofer



YXL10P - 1000 Watts, Active Loudspeaker Cabinet with 10-inch Woofer  YXL10P - 1000 Watts, Active Loudspeaker Cabinet with 10-inch Woofer  YXL10P - 1000 Watts, Active Loudspeaker Cabinet with 10-inch Woofer
Enlarge ↗
BrandYorkville ›
Price:$ 429.00




DESCRIPTION
Overview

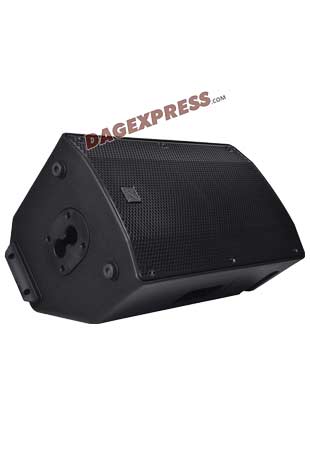

The YXL cabinets use a single driver and 90 x 40 degree horn with 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, YXL is poised to uphold Yorkville's reputation for reliability and durability. The cabinets can be positioned upright or used as a monitor wedge.

Designed as an all-purpose speaker with the Musician & DJ in mind, each YXL cabinet features 3 channels. The cabinet supports Bluetooth streaming and EQ pushbutton controls for Concert, Club & Monitor modes.

Features
1000 Watts (Peak) 500 Watts (Program)
10-inch woofer with 2-inch voice coil
3 Channels plus Master level
1-inch compression driver
90° x 40° HF dispersion
Polypropelene cabinet construction
Integrated 3 channel mixer with 2X 1/4", 2X XLR and 1/8" inputs
Bluetooth streaming
3 performance modes (Concert, Club, Monitor)

Specifications
System Type Active Loudspeaker
Active or Passive Active
Power Rating (Watts) 500 Watts Program (1000 Watts Peak)
Max SPL (dB) 126dB Peak
Frequency Response (Hz +/- 3dB) 55 - 16k (Hz +/-3dB)
Dispersion (°H x °V) 90 x 40
Crossover Frequency (Hz) 1.6kHz
HF Horn Integrated into Baffle
LF Driver(s) 10-inch (2-inch voice coil)
LF Power Rating(Watts) 450 Watts Program (900 Watts Peak)
HF Power Amplifier (Watts) 50
HF Amplifier Type Class A/B
LF Amplifier Type Class D
Cooling Scheme Speed controlled fan
Power Cable Yes
Power Switch Yes

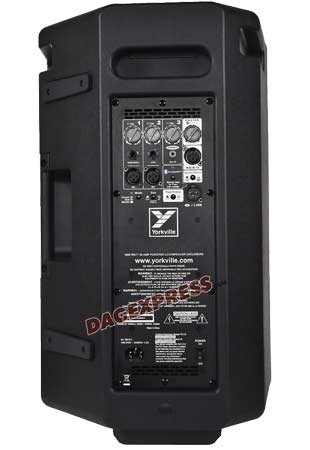

Inputs 2 x XLR, 2 x 1/4", 1/8", Bluetooth and Main in (XLR)
Level Controls x3 Chanels + Master
EQ Controls Push button select, Concert, Club, Monitor
Limiter Multiband excursion, RMS, rail
Other Controls / Features Sub mode HP filter, Mixer IN/OUT, Stereo/Mono out, 3.5mm Aux in, BT streaming
Feet Rubber
Bar Handles 1 x Side / 1 x Back
Flying Hardware 2 (top), 1 (pullback)
Optional Flying Hardware Yes
Enclosure Materials Polypropelene, Metal grille
Baffle Material Polypropylene
Grille Powder Coated Steel with Grille Cloth
Other Details Rubber feet on bottom and side with the monitor Wedge
Dimensions (DWH xbackW, inches) 11 x 13.25 x 20.5
Dimensions (DWH xbackW, cm) 28 x 33.5 x 52
Weight (lbs/kg) 28 / 14
Specifications subject to change without notice
