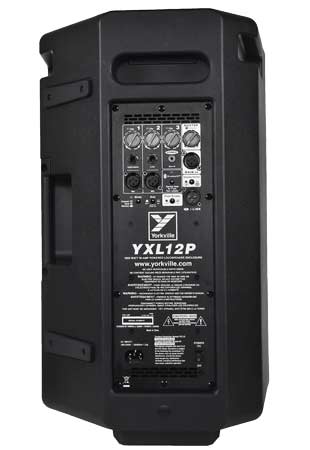

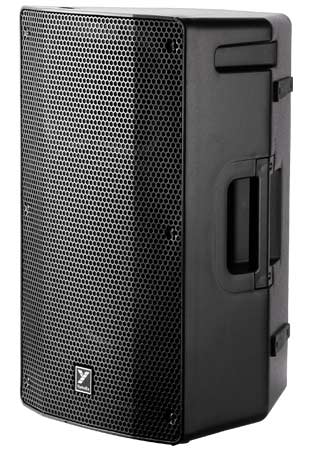

Yorkville YXL12P - 12-Inch, 1-Inch - 1000 Watts Active Louspeaker

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/-YXL12P.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/Yorkville-YXL12P.jpg

Brand	Yorkville ›
Price:	$ 519.00

DESCRIPTION

Documentation ↗

12-inch / 1-inch - 1000 Watts
Introducing Yorkville Sound's new line of high quality & affordable powered cabinets. The YXL Series is poised to uphold Yorkville's reputation for great sound, reliability and durability.

Features
1000 Watts (Peak) 500 Watts (Program)
12-inch woofer with 2-inch voice coil
3 Channels plus Master level
1-inch compression driver
90° x 40° HF dispersion
Polypropelene cabinet construction
Integrated 3 channel mixer with 2X 1/4", 2X XLR and 1/8" inputs
Bluetooth streaming
3 performance modes (Concert, Club, Monitor)

Specifications
System Type Active Loudspeaker
Active or Passive Active
Power Rating (Watts) 500 Watts Program (1000 Watts Peak)
Max SPL (dB) 126dB Peak
Frequency Response (Hz +/- 3dB) 47 - 16k (Hz +/-3dB)
Dispersion (°H x °V) 90 x 40
Crossover Frequency (Hz) 1.6kHz
HF Horn Integrated into Baffle
LF Driver(s) 12-inch (2-inch voice coil)
LF Power Rating(Watts) 450 Watts Program (900 Watts Peak)
HF Power Amplifier (Watts) 50
HF Amplifier Type Class A/B
LF Amplifier Type Class D
Cooling Scheme Speed controlled fan
Power Cable Yes
Power Switch Yes
Inputs 2 x XLR, 2 x 1/4", 1/8", Bluetooth and Main in (XLR)
Level Controls x3 Chanels + Master
EQ Controls Push button select, Concert, Club, Monitor
Limiter Multiband excursion, RMS, rail
Other Controls / Features 100 Hz HP with Sub, Mixer IN/OUT, Stereo/Mono out, 3.5mm Aux in, BT streaming
Feet Rubber
Bar Handles 1 x Side / 1 x Back
Flying Hardware 2 (Top), 1 (Pullback)
Optional Flying Hardware Yes
Enclosure Materials Polypropelene, Metal grille
Baffle Material Polypropylene
Grille Powder Coated Steel with Grille Cloth
Other Details Rubber feet on bottom and side with the monitor Wedge
Dimensions (DWH xbackW, inches) 13.5 x 14 x 23
Dimensions (DWH xbackW, cm) 34 x 35.5 x 58.5
Weight (lbs/kg) 38 / 17.24
